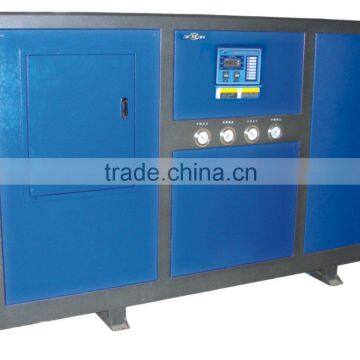

Industrial Water cooler made in China

FOB Price

USD $1,100 - $15,900 / Set

1 Set(Min.Order)

Port Ningbo China

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Water-Cooled
Place of Origin	Zhejiang, China	Brand Name	XINHE
Model Number	XCW-xxS/D	Cooling Capability(kw)	29.5kw to 174kw
Voltage	220V or 380V	Weight	210kg to 1400kg
Certification	CE, Other, CE, ISO9001:2000	Warranty	One year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Water cooler:
1.Used in Injection molding machine ,plastc ,etc .
2.Hermetic scroll/poistion type
3.Simple operate

I. Instruction of Water cooler :

1.Compressors adopt the new and famous brand compressors imported from Europe, Japan and the United States with the feature of environmental protection, energy saving and durability.

2. It can be placed directly at working site to avoid the cooling loss caused by far distance;

3. Evaporator use the efficient and internal thread tube having the "U" shape design, small size, high efficiency and easy cleaning & maintenance;

4. Best suited for high-temperature and strong corrosion& severe pollution industries such as chemical, surface treatment, the plastic industry, etc.

II. Technology parameter of Water cooler :

Models	Cooling	Input	Compressor	Evaporator	Condenser	The machine
Models	Capacity	Power		Flow water	Cooling water	size
The models below include 1 compressor
XCW-08S	25,370kcal/hr	8.2kw	6.81kw	4.2kw	5.5kw	14007501200mm
XCW-10S	31,390kcal/hr	10.4kw	8.8kw	5.5kw	7.2kw	14007501200mm
XCW-12S	37,496kcal/hr	12.6kw	10.8kw	6.6kw	8.2kw	14007501200mm
The models below include 2 compressors
XCW-16D	49,192kcal/hr	16.2kw	13.8kw	7.8kw	10.6kw	15008001250mm
XCW-20D	62,780kcal/hr	20.8kw	17.5kw	11.2kw	13.8kw	16508001350mm
XCW-25D	75,164kcal/hr	25.6kw	21.8kw	13.4kw	17.8kw	16508001350mm
XCW-30D	97,180kcal/hr	32.6kw	27.5kw	16.6kw	20.6kw	210010001350mm
XCW-40D	124,700kcal/hr	41.8kw	35kw	21.2kw	28.5kw	220011501500mm
XCW-50D	149,640kcal/hr	51.6kw	43.5kw	26.5kw	36.3kw	220011501500mm
Note:
1.Rate cooling capacity is based on the following parameter :evaporating temperature:10°C,Condensing temperature:43.3°C.
2.Main Voltage :3p-380V/50HZ and 3P-220V-50HZ/60HZ
3.Refrigerant :R22

III.Main parts of Water cooler :

IV.Widely application of Water cooler :
