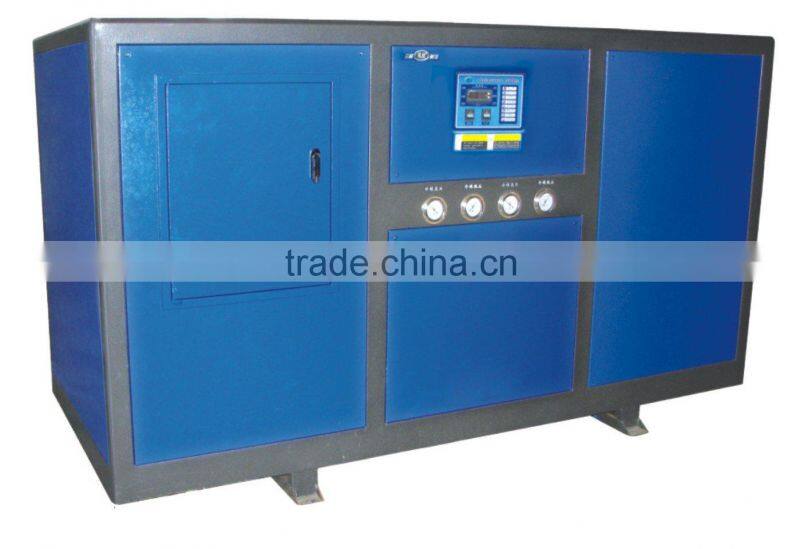

12HP Water Chiller Machine
- Ningbo China
You May Like
Product Details
| Condition | New | Type | Water-Cooled | |
| Place of Origin | Zhejiang, China | Brand Name | XHC | |
| Model Number | XCW-12S | Cooling Capability(kw) | 36.4kw | |
| Voltage | 220V or 380V | Dimension(L*W*H) | 1500*800*1350mm | |
| Weight | 245kg | Certification | CE, Other, CE, ISO9001:2000 | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Water chiller machine:1.Used in Injecion molding machine,plastc ,etc .
2.Hermetic scroll/pistion type
3.Simple operate
Water chiller machine
I. Instruction of Water chiller machine:
1.Compressors adopt the new and famous brand compressors imported from Europe, Japan and the United States with the feature of environmental protection, energy saving and durability.
2. It can be placed directly at working site to avoid the cooling loss caused by far distance;
3. Evaporator use the efficient and internal thread tube having the "U" shape design, small size, high efficiency and easy cleaning & maintenance;
4. Best suited for high-temperature and strong corrosion& severe pollution industries such as chemical, surface treatment, the plastic industry, etc.
II. Technology parameter of Water chiller machine:
Models | Cooling | Input | Compressor | Evaporator | Condenser | The machine |
Capacity | Power | Flow water | Cooling water | size | ||
The models below include 1 compressor | ||||||
XCW-08S | 25,370kcal/hr | 8.2kw | 6.81kw | 4.2kw | 5.5kw | 1400*750*1200mm |
XCW-10S | 31,390kcal/hr | 10.4kw | 8.8kw | 5.5kw | 7.2kw | 1400*750*1200mm |
XCW-12S | 37,496kcal/hr | 12.6kw | 10.8kw | 6.6kw | 8.2kw | 1400*750*1200mm |
The models below include 2 compressors | ||||||
XCW-16D | 49,192kcal/hr | 16.2kw | 13.8kw | 7.8kw | 10.6kw | 1500*800*1250mm |
XCW-20D | 62,780kcal/hr | 20.8kw | 17.5kw | 11.2kw | 13.8kw | 1650*800*1350mm |
XCW-25D | 75,164kcal/hr | 25.6kw | 21.8kw | 13.4kw | 17.8kw | 1650*800*1350mm |
XCW-30D | 97,180kcal/hr | 32.6kw | 27.5kw | 16.6kw | 20.6kw | 2100*1000*1350mm |
XCW-40D | 124,700kcal/hr | 41.8kw | 35kw | 21.2kw | 28.5kw | 2200*1150*1500mm |
XCW-50D | 149,640kcal/hr | 51.6kw | 43.5kw | 26.5kw | 36.3kw | 2200*1150*1500mm |
Note: | ||||||
1.Rate cooling capacity is based on the following parameter :evaporating temperature:10°C,Condensing temperature:43.3°C. | ||||||
2.Main Voltage :3p-380V/50HZ and 3P-220V-50HZ/60HZ | ||||||
3.Refrigerant :R22 | ||||||
III.Main parts of Water chiller machine:
IV.Widel application of Water chiller machine:
