Screw Type Water Cooled Chiller

Specifications

                       Screw type Water cooled chiller

I. Description of Screw style water chiller:

1.Screw style Water chiller is mainly composed of a semi hermetic screw compressor, shell and tube  condenser, a dry filter, thermal expansion valve, shell and tube evaporator, and the electric control part and so on.

2.Widely used in plastic, plating, electronic, chemical, pharmaceutical, printing, food processing and other industrial refrigeration process requires the use of frozen water areas, or large shopping malls, hotels, factories, hospitals and other central air conditioning engineering need to use chilled water central cooling field.

II. Features of Screw type Water cooled chiller:
1. Double semi-hermetic screw style compressors made in Germany and long life bearing ensure the long time running;
2. Compressor with 25% - 100% stepless energy regulation can be adjusted to meet the needs of energy-saving effect according to the requirements of customers;
3. Condenser and evaporator are in line with national requirements with good heat transfer performance and convenient maintenance;
4. Controller with good dilation performance facilitate the expansion and upgrading of  hardware and procedures;
5. Watchdog technology enables microcomputer controllers hardware and components to have self-diagnostic capabilities so that it can automatically detect fault;
6. Equipped with high stability of memory and the storage capacity of 512 K and 128 K procedures, it has large data storage which will not be lost;
7. Unique touch screen protection system enables the screen service life to achieve more than 10 years;
8. Fault enquiry and fault statistic functions can analyze the causes for failure according to fault number and fault quantity so that it can be improved;
9. The actual temperature of every point can be read, amended and set at any time, and it also can show the temperature curve in one hour and one day;
10. Machine with remote-control of turning on and off the machine function can realize the applications of regularly turning on and off the machine once and the turning on and off the machine weekly. The daily maximum turning on and off the machine can be set up to three times.
11. Support multi-language online switchover.

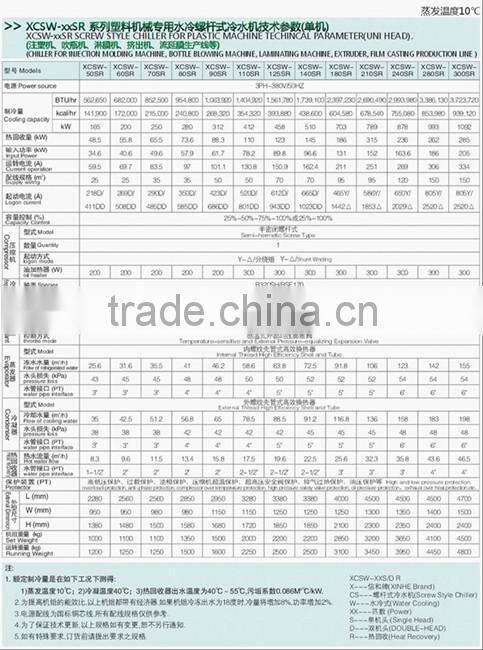

 III.Technical parameter of Screw type Water cooled chiller :

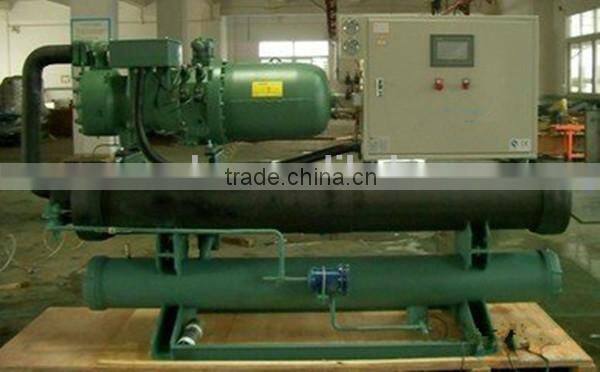

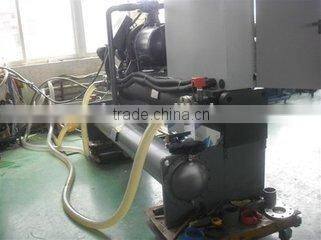

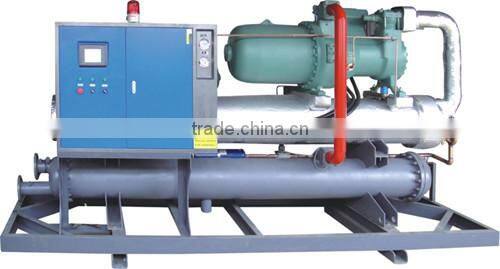

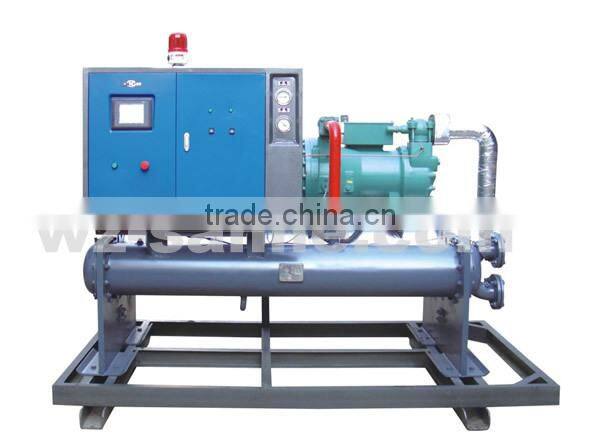

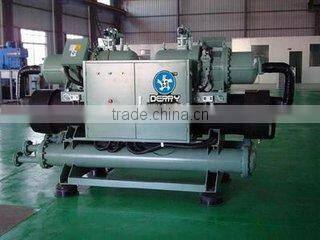

IV. Screw style Water cooled chiller photos :
