40T Round Counter Current Cosed Water Cooling Tower Machine
- Ningbo China
- T/T L/C D/P D/A PayPal
You May Like
-
Water Flow is 50m3 per Hour Round Counter Current Cooling Water Tower Machine
-
Round Type Counter Current Water Cooling Tower for Water Chiller System
-
Water Flow is 70m3 per Hour Round Counter Current Water Cooling Machine Water Tower Price
-
With Water Pump Round Counter Closed Cooling Tower Manufacture
-
Water Flow is 20m3 per Hour Round Counter Small Water Cooling Tower Selling
-
China 8T Round Counter Cooling Water Tower for Sale
Product Details
| Condition | New | Cooling Type | Counter Flow | |
| Material | FRP | Place of Origin | Zhejiang, China | |
| Brand Name | XHC | Model Number | XTM-40 | |
| Voltage | 380V or 220V,440V | Power(W) | 1.1kw | |
| Weight | 64kg to 6445kg | Certification | CE and ISO9001:2000 | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
40T Round counter current Cosed Water cooling tower machine
I. Closed water cooling tower Working condition :
Water inlet temperature:37°C
Water outlet temperature:32°C
Wet bulb temperature:28°C
Dry bulb tem peranure:31.8°C
Atmospheric pressure:9.94×10000Pa
Material: glass fiber reinforced plastic (GFRP)

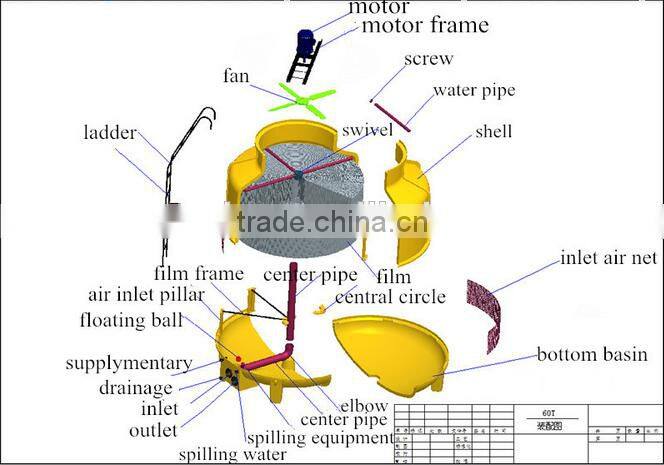

Closed water cooling tower structure drawing
II. Technology parameter of Closed water cooling tower :
Model
| Water flow | Fan diameter | Theoretical air | Motor power | Tower height | Tower diameter | Weight |
(m3/h) | (mm) | (m3/h) | (kw) | (mm) | (mm) | (kg) | |
XTM-8 | 8 | 584 | 4500 | 0.18 | 1560 | 930 | 64 |
XTM-10 | 10 | 584 | 5700 | 0.18 | 1670 | 1000 | 85 |
XTM-12 | 12 | 760 | 6800 | 0.37 | 1700 | 1100 | 94 |
XTM-15 | 15 | 760 | 9100 | 0.37 | 1780 | 1250 | 124 |
XTM-20 | 20 | 760 | 11300 | 0.37 | 1780 | 1400 | 158 |
XTM-25 | 25 | 760 | 15000 | 0.55 | 1780 | 1400 | 174 |
XTM-30 | 30 | 884 | 17000 | 0.75 | 1960 | 1620 | 185 |
XTM-40 | 40 | 884 | 21000 | 0.75 | 2010 | 1740 | 192 |
XTM-50 | 50 | 884 | 23000 | 1.1 | 2010 | 1840 | 215 |
XTM-60 | 60 | 1190 | 28000 | 1.1 | 2400 | 2200 | 412 |
XTM-70 | 70 | 1190 | 33000 | 1.5 | 2530 | 2200 | 476 |
XTM-80 | 80 | 1470 | 45000 | 2.2 | 2680 | 2500 | 680 |
XTM-90 | 90 | 1470 | 48000 | 2.2 | 2710 | 2500 | 730 |
XTM-100 | 100 | 1470 | 50000 | 2.2 | 2820 | 2900 | 776 |
XTM-125 | 125 | 1800 | 57000 | 4 | 3130 | 3300 | 954 |
XTM-150 | 150 | 1800 | 70000 | 4 | 3350 | 3300 | 1062 |
XTM-175 | 175 | 1800 | 85000 | 4 | 3670 | 3600 | 1468 |
XTM-200 | 200 | 1800 | 99000 | 4 | 3900 | 4000 | 1797 |
XTM-225 | 225 | 2400 | 113000 | 5.5 | 4165 | 4500 | 1987 |
XTM-250 | 250 | 2400 | 142000 | 5.5 | 4290 | 4500 | 2370 |
XTM-300 | 300 | 3000 | 171000 | 7.5 | 4435 | 4900 | 2495 |
XTM-350 | 350 | 3000 | 210000 | 11 | 4735 | 5300 | 2702 |
XTM-400 | 400 | 3400 | 228000 | 11 | 4820 | 6100 | 3592 |
XTM-450 | 450 | 3400 | 285000 | 15 | 4820 | 6100 | 3741 |
XTM-500 | 500 | 3700 | 342000 | 15 | 5145 | 6800 | 4276 |
XTM-600 | 600 | 3700 | 400000 | 18.5 | 5145 | 6800 | 4457 |
XTM-700 | 700 | 4200 | 456000 | 22 | 5732 | 8000 | 6167 |
XTM-800 | 800 | 4200 | 570000 | 22 | 5732 | 8000 | 6445 |

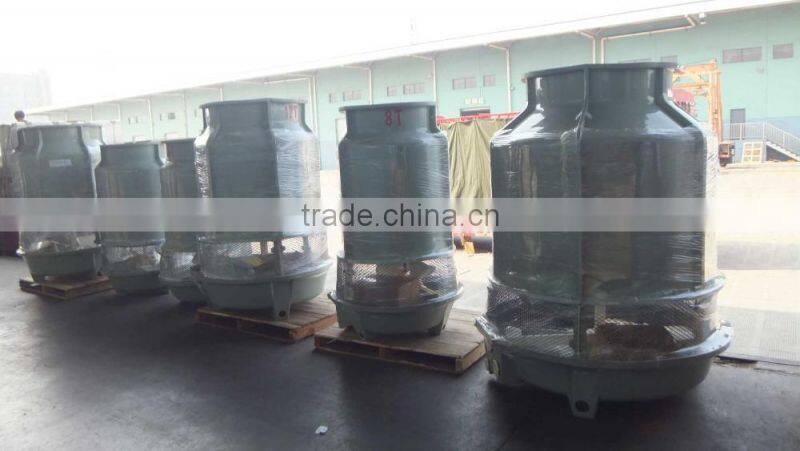

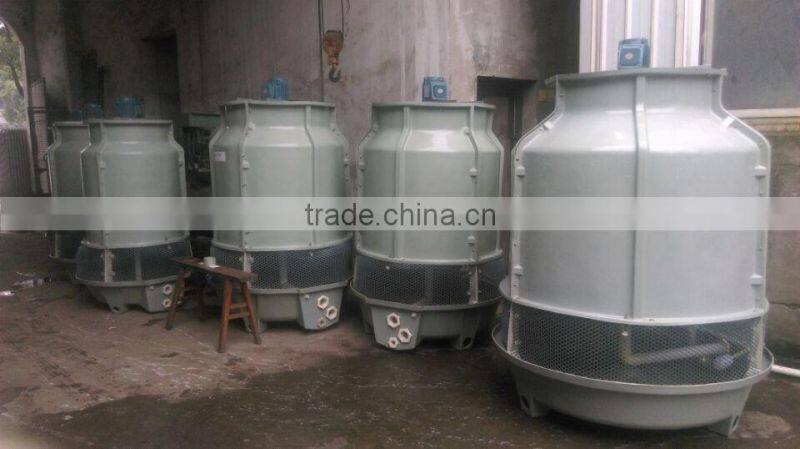

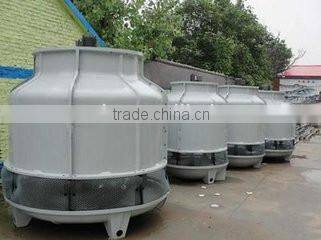

Closed water cooling tower photos
