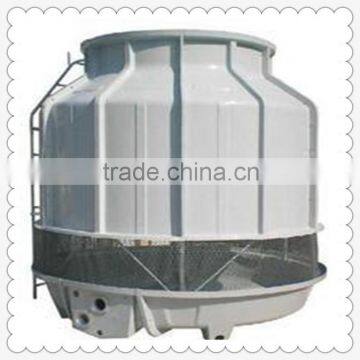

Round Counter Current Cooling tower

Specifications

                             Cooling tower

I. Instruction of Cooling tower

1.A complete range of specifications from 8T to 1000T..

  Water flow is from 8m³/h to 1000m³/h .

  Inlet water temperature is below 60degreeC ,XTM-XX series .

  Inlet water temperature is above 60degreeC,XTH-XX series .

2.Working with Water chiller ,pumps .

II. Instruction of Cooling tower :

 Cooling tower is mainly applied to air conditioning cooling system , cooling series , plastic , leather , power generation, and  steam turbine , aluminum processing , air compressor , industrial cooling tower , cooling for industrial production or refrigeration technology process.

1.Tower body:

 Made of FRP composite material, imported surface gel coat  materials containing anti-ultraviolet stabilizer in color, with the merits of smooth surface , anti-aging, difficult to fade.

2.Motor:

Famous brand motor with hermetic waterproof, protection grade IP55, insulation F grade

Heat elimination film using Taiwan PVC and imported milk white PP, the maximum temperature resistance of PVC and PP 120degreel

3.Water Distribution system:

 With the rotating tube type water distribution , water distribution device is made of ABS or copper alloy, with long-standing service and uniform water distribution

4.Transmission:

 All rotating components adopt imported bearing with high precision and low repair rate, selects imported strong “V” shape belt with high strength , wear resistance and long service life.

 Use metal parts for the outer pipes hitch of cooling tower and flange, adopt copper alloy swivel, which  has reduce broken of tube connection hitch, flange and abraded of swivel in the largest degree.

  Good material and reasonable design of the tower body ensure the long service life and cooling effect.

III.Working condition of Cooling tower :

1.Water inlet temperature:37 degree celsius

2.Water oulet temperature:32 degree celsius

3.Wet bulb temperature:28  degree celsius

4.Dry bulb tem peranure:31.8 degree celsius

5.Atmospheric pressure:9.94×10000Pa

IV.Technology parameter of Cooling tower :

 Note :

Any interest ,Pls tell us below :

1.What's the water flow you need ?

2.what's the water inlet temperature ?  _degree C .

3.What's the voltage do you need ?

  3phase 220V/50HZ ,3phase 220V/60HZ ,etc .

Thus ,we can quote for you fast and exactly .Best wishes !
