China Made 5HP Small Industrial Air Chiller Price
- Ningbo China
- T/T L/C D/P D/A PayPal
You May Like
Product Details
| Condition | New | Type | Air-Cooled | |
| Place of Origin | Zhejiang, China | Brand Name | XHC | |
| Model Number | XCA-05S | Cooling Capability(kw) | 16.2kw | |
| Voltage | 220V/380V | Dimension(L*W*H) | 1280*680*1000mm | |
| Weight | 150kg | Certification | CE, Other, CE, ISO9001:2000 | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
China made 5HP Small Industrial Air chiller price
XCA-05S
I.Instruction of Air chiller :
XHC Air chiller is widely used for hotels, hospitals, theaters, sports, entertainment center, commercial buildings, office buildings, working conditions at places such as development and design company central air conditioning products, it can installed on the roof or outside the hospital, without special room and cooling tower.
1.Energy efficient,
2.modular, free combination, easy installation, stable performance,
3, intelligent control, easy operation, safety
4.low noise, stable operation and 5, have the ability to network communication
II. Technology parameter of Air chiller :
Models | Cooling | Input | Compressor | Evaporator | Condenser | The machine |
Capacity | Power | Flow water | Cooling air | size | ||
The models below include 1 Compressor | ||||||
XCA-02S | 4988kcal/hr | 2.5kw | 1.9kw | 1.3m3/h | 2270m3/h | 0.8*0.6*0.85m |
XCA-03S | 8428kcal/hr | 3.4kw | 2.9kw | 1.8m3/h | 3400m3/h | 0.95*0.68*1.0m |
XCA-05S | 13,932kcal/hr | 5.7kw | 4.8kw | 2.6m3/h | 4550m3/h | 1.28*0.68*1.2m |
XCA-08S | 21,156kcal/hr | 8.5kw | 7.5kw | 4.2m3/h | 6800m3/h | 1.24*0.73*1.38m |
XCA-10S | 27,090kcal/hr | 11.4kw | 9.8kw | 5.5m3/h | 9600m3/h | 1.5*0.8*1.32m |
XCA-12S | 31,304kcal/hr | 13.3kw | 11.8kw | 6.6m3/h | 9600m3/h | 1.5*0.8*1.35m |
The models below include 2 Compressors | ||||||
XCA-16D | 41,796kcal/hr | 18.1kw | 15.2kw | 7.8m3/h | 13200m3/h | 1.58*0.95*1.46m |
XCA-20D | 53,750kcal/hr | 22.8kw | 19.8kw | 11.2m3/h | 19800m3/h | 2.5*1.0*1.5m |
XCA-25D | 62,264kcal/hr | 26.9kw | 23.8kw | 13.4m3/h | 26000m3/h | 2.5*1.0*1.58m |
XCA-30D | 83,420kcal/hr | 36.5kw | 30.6kw | 16.6m3/h | 265000m3/h | 2.65*1.0*1.58m |
XCA-40D | 107,500kcal/hr | 45.8kw | 39.5kw | 21.2m3/h | 39800m3/h | 2.8*1.15*1.68m |
XCA-50D | 124,700kcal/hr | 53.9kw | 47.2kw | 26.5m3/h | 52000m3/h | 2.8*1.9*1.75m |
Note : | ||||||
1.The details above is based on the following parameter :Evaporator temperature:10C | ||||||
Condensing temperature:54.4C | ||||||
2.Main Voltage :3Phase-380V/50HZ ,3Phase-220V/60HZ | ||||||
III.Main parts of Air chiller:
Item | Remark | Brand | Brand |
Compressor |
| Copeland | USA |
Computer control |
| Computer control | Sino-foreign joint venture |
Refrigerant | R22 | DUPON | USA |
Electrical equipment |
| ZHENGTAI | China |
Condenser |
| Efficient copper tube set of aluminum finned + low noise outer rotor axial flow fan | SANHE |
Evaporator |
| Coil pipe | SANHE |
Pressure gauge |
| GARHOPE | Sino-US joint venture |
Solenoid valve |
| FENSHEN | Sino-foreign joint venture |
Flow controller |
| Capillary | XHC |
Dry filter |
| SANRONG | Sino-foreign joint venture |
Energy device |
| XHC | XHC SANHE |
Copper pipe |
| HONGTAI | Qingdao ,China |
Steel |
| BAOGANG | Shanghai ,China |
Pressure controller |
| FENSHEN | Sino-foreign joint venture |
Globe valves |
| FENSHEN | Sino-foreign joint venture |

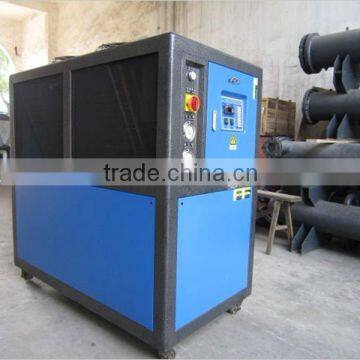

Inside of Air chiller photo .

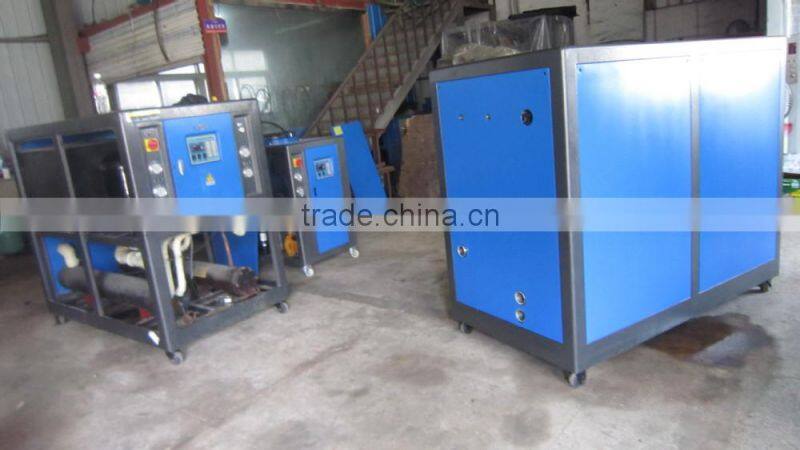

Air chillers in our working shop
