2HP Small Air Chiller for Sale
- Ningbo China
You May Like
Product Details
| Condition | New | Type | Air-Cooled | |
| Place of Origin | Zhejiang, China | Brand Name | XHC | |
| Model Number | XCA-02S | Cooling Capability(kw) | 5.8kw | |
| Voltage | 380V/220V | Dimension(L*W*H) | 800*600*850mm | |
| Weight | 100kg | Certification | CE, Other, CE, ISO9001:2000 | |
| Warranty | One year | After-sales Service Provided | No overseas service provided |
Product Description
Specifications
Small Air chiller :1.Best quality and Simple operate.
2.Cooling capacity is over 30% more than ordinary.
3.Small size.

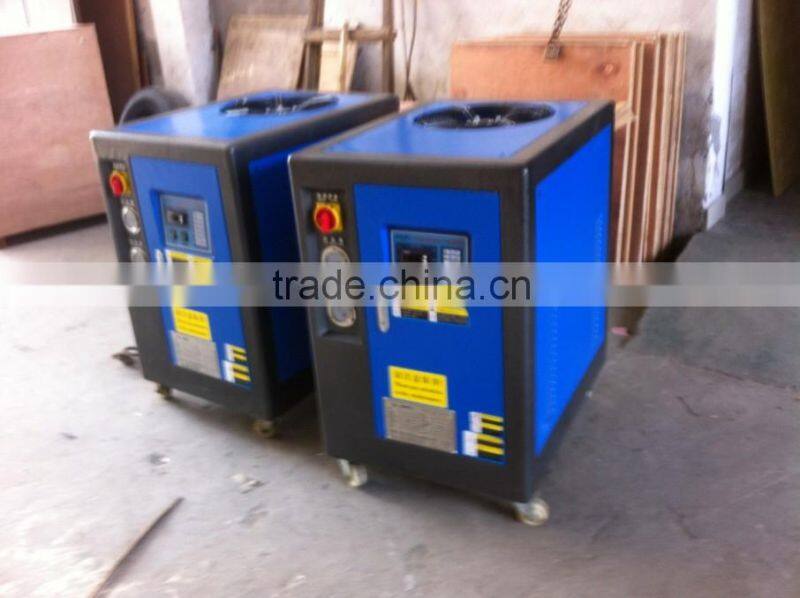

XCA-02S Small Air chiller
I. Instruction of Small Air chiller:
XHC Air chiller is widely used for hotels, hospitals, theaters, sports, entertainment center, commercial buildings, office buildings, working conditions at places such as development and design company central air conditioning products, it can installed on the roof or outside the hospital, without special room and cooling tower.
1.Energy efficient,
2.Modular, free combination, easy installation, stable performance,
3, Intelligent control, easy operation, safety
4.Low noise, stable operation and 5, have the ability to network communication
Features:
- Air chiller is an ideal choice for places with much dusts and filth.
- Air chiller is suitable for area with low-quality water, and it can save the cooling tower and auxiliary devices.
- Its large-capacity condenser operate well in even very hot seasons
Condensing Type: air cooled
Application: Injection Molding, Food Industry, Chemical Industry, Central Air-Conditioner
II. Technology parameter of Small Air chiller :
Models | Cooling | Input | Compressor | Evaporator | Condenser | The machine |
Capacity | Power | Flow water | Cooling air | size | ||
The models below include 1 Compressor | ||||||
XCA-02S | 4988kcal/hr | 2.5kw | 1.9kw | 1.3m3/h | 2270m3/h | 0.8*0.6*0.85m |
XCA-03S | 8428kcal/hr | 3.4kw | 2.9kw | 1.8m3/h | 3400m3/h | 0.95*0.68*1.0m |
XCA-05S | 13,932kcal/hr | 5.7kw | 4.8kw | 2.6m3/h | 4550m3/h | 1.28*0.68*1.2m |
XCA-08S | 21,156kcal/hr | 8.5kw | 7.5kw | 4.2m3/h | 6800m3/h | 1.24*0.73*1.38m |
XCA-10S | 27,090kcal/hr | 11.4kw | 9.8kw | 5.5m3/h | 9600m3/h | 1.5*0.8*1.32m |
XCA-12S | 31,304kcal/hr | 13.3kw | 11.8kw | 6.6m3/h | 9600m3/h | 1.5*0.8*1.35m |
The models below include 2 Compressors | ||||||
XCA-16D | 41,796kcal/hr | 18.1kw | 15.2kw | 7.8m3/h | 1 3200m3/h | 1.58*0.95*1.46m |
XCA-20D | 53,750kcal/hr | 22.8kw | 19.8kw | 11.2m3/h | 19800m3/h | 2.5*1.0*1.5m |
XCA-25D | 62,264kcal/hr | 26.9kw | 23.8kw | 13.4m3/h | 26000m3/h | 2.5*1.0*1.58m |
XCA-30D | 83,420kcal/hr | 36.5kw | 30.6kw | 16.6m3/h | 265000m3/h | 2.65*1.0*1.58m |
XCA-40D | 107,500kcal/hr | 45.8kw | 39.5kw | 21.2m3/h | 39800m3/h | 2.8*1.15*1.68m |
XCA-50D | 124,700kcal/hr | 53.9kw | 47.2kw | 26.5m3/h | 52000m3/h | 2.8*1.9*1.75m |
Note : | ||||||
1.The details above is based on the following parameter :Evaporator temperature:10°C, Condensing temperature:54.4°C | ||||||
2.Main Voltage :3Phase -380V/50HZ ,3Phase-220V-50HZ/60HZ | ||||||
3.Refrigerant :R22 | ||||||
III.Main parts of Small Air chiller:
Item | Remark | Brand | Brand |

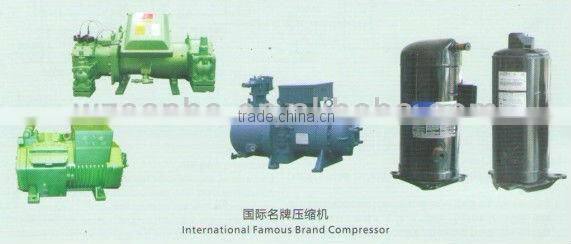

Compressor |
| Copeland | USA |
Computer control |
| Computer control | Sino-foreign joint venture |
Refrigerant | R22 | DUPON | USA |
Electrical equipment |
| ZHENGTAI | China |

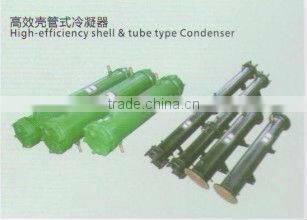

Condenser |
| Efficient copper tube set of aluminum finned + low noise outer rotor axial flow fan | SANHE |
Evaporator |
| Coil pipe | SANHE |
Pressure gauge |
| GARHOPE | Sino-US joint venture |
Solenoid valve |
| FENSHEN | Sino-foreign joint venture |
Flow controller |
| Capillary | XHC |
Dry filter |
| SANRONG | Sino-foreign joint venture |
Energy device |
| XHC | XHC SANHE |
Copper pipe |
| HONGTAI | Qingdao ,China |
Steel |
| BAOGANG | Shanghai ,China |
Pressure controller |
| FENSHEN | Sino-foreign joint venture |
Globe valves |
| FENSHEN | Sino-foreign joint venture |
IV.Main parts of Small Air chiller :
