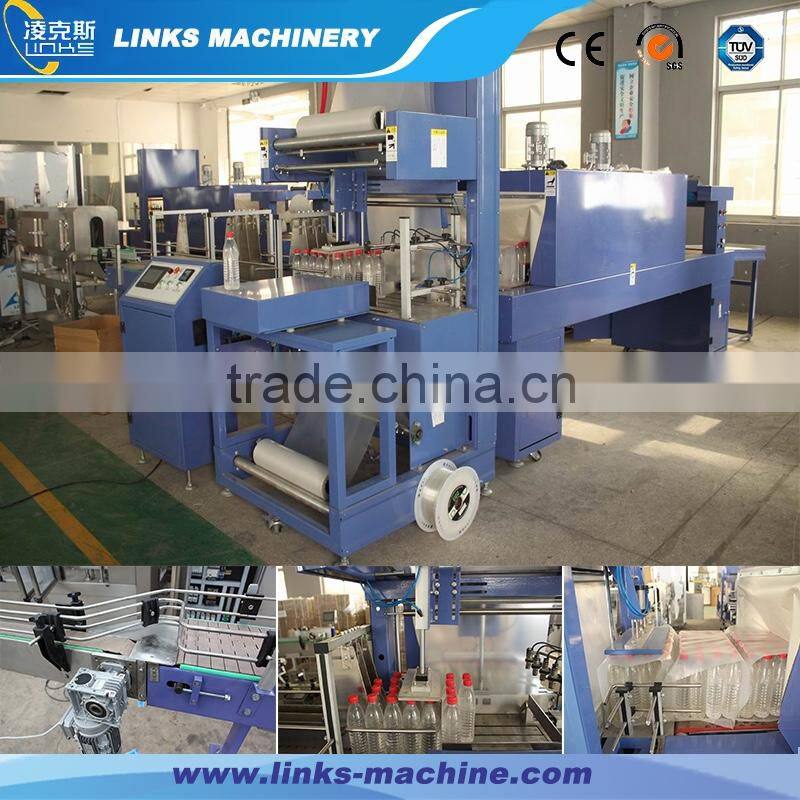

Automatic shrink wrapping machine

Automatic shrink wrapping machine

One.Technical parameters

·Equipment type: WD-150

·Outline dimension of the equipment: L5050*W3300*H2200mm

·The largest dimension of the wrap page:L600*W430*H480mm

·Material of shrink film:PE

·Thickness of shrink film:0.03-0.15mm

·The highest temperature of the heat shrink furnace: 160-260^.

Can adjust freewill.

·The maximum production per minute:0-12 package

·Equipment capacity: 18Kw

·Actual power consumption:15Kw/hour

·Equipment weight:1.1T

·Machine require air pressure of the compressor:0.6-0.8Mpa

Two.Basic configuration of the equipment:

·Canada maintain: 5.7 inch touch screen, PLC control system.(can choose other brand)

·One set Taiwan Air tac pneumatic element

·Three sets Taiwan Taida transducer

·Twelve pieces stainless and iron pterygoid heating pipe

·Teflon transportation net which are produced by Sino-America cooperation.

·Electrical machine by Shanghai and Beauty cooperation ,warm transmission by Zhejiang Taili.

·Korea Ottonix photoelectric switch,proximity switch.

·We can make Heat sealing sword cast aluminum heat appliance specially,well proportioned temperature and long lived.

·Surface of the whole machine are plastic spraying,frame work adopt excellent carbon steel,the mainstay adopt stainless steel.

·The length of bottle transport machine:2600mm

·Packed with wooden case and winded film separately.

Three.Product description:

·Frequency control,Secondary bottle transport device.

·The whole set which are push bottle,heat sealing cutting adopt pneumatic structure.

·Inductive switch control film length.

·Touch screen,PLC control system advanced reliability of the equipment function.

·Circular wind machine ,resuare well-proportioned temperature of the shrink furnace.

·Strong cooling system can reassure finalize the design quickly.

·Heat-fast Teflon transport net,transport steady,high strength and stand wear and tear.

·Frequency conversion timing net transportation structure.

·The height of the conveyer belt can be made according to the user,adustable range±50mm

·Bottle transport machine can satisfy the direction of the user,it can prolong and shorten

·Pterygoid stainless iron heating system,durability.

·Satisfy the bear storage rack device of the short duration for the product,assure consecutive work for the production line.
