Home > Products > MZE Aluminum Electrolytic Capacitors > 400V 3900uF Aluminum Electrolytic Capacitor 64mm*130mm

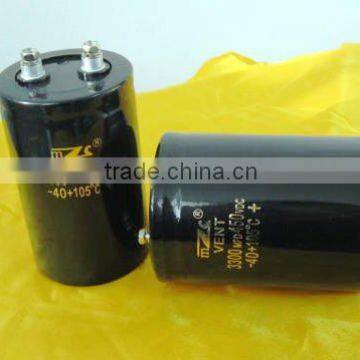

400V 3900uF Aluminum Electrolytic Capacitor 64mm*130mm

FOB Price

USD $10.5 - $19.5 / Piece

5 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Amazing
Model Number	Electrolytic capacitor 450V 1000uf	Type	Other, Aluminum Electrolytic Capacitor, 400v aluminum electrolytic capacitor
Application	General Purpose	Package Type	Through Hole
Capacitance	3900uf	Rated Voltage	400v
Operating Temperature	-45C~+135C

400V 3900uF Aluminum Electrolytic Capacitor 64mm*130mm

Items	Characteristics
Operating Temperature	-25~85°C
Rated Voltage Range	450V
Capacitance Tolerance	±20%(20°C, 120Hz)
Leakage Current	I less than 5mA (apply rated voltage for 5 minutes)
Leakage Current	I: leakage current(A) C: rated capacitance V: rated voltage
Dissipation Factor	Rated Voltage(V): 450V
Dissipation Factor	Tangent(Ö): 0.25Ö
Temperature Characteristics	Electrostatic Capacitance Range: c(-25°C)/C(+20°C) more than 0.7(120Hz)
Endurance	The following specification shall be satisfied when the rated voltage is applied for 2,000 hours at 85°C
	Capacitance change: ±20% of the initial value
	Dissipation factor(tg Ö): less than 200% of the initial specification value
	Leakage current: less than initial specification value
High-temperature storage	The following specifications shall be satisfied when the capacitor is stored for 500 hours at 85°C and be cooled down to 20°C and was handled according to the JIS C51024.4 term
	Capacitance change rate: ±20% of the initial testing value
	Dissipation factor(tg Ö): less than initial specification value

450v aluminum electrolytic capacitor

advantages:

1.long life

2.wide temperature range

3.low leakage current type

4.low ESR type

5.low profile

6.low dissipation factor

7.high stability

8.high ripple current

9.good self-healing performance

10.safety vent construction

widely used in UPS, inverter,electric car,microwave,motor start,elevator,air conditioner,

air compressor,washing machine,cosmetology equipment,main-board, power control system,

energy-saving lamps,digital camera,laser equipment and so on.
