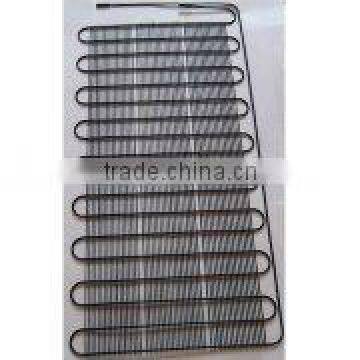

Condenser tube
- shang hai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HONGBAO condenser tube | |
| Model Number | HONGBAO BUNDY | Type | Evaporator | |
| Application | Heater Parts | Certification | CSA |
Product Description
Specifications
condenser tube:GB/T228-2002 GB/T242-1997 GB/T244-1997GB/T246-1997 GB/T2102-1988 GB/T13237-1991 GB/T10125-1997
condenser tube:
Material: low carbon steel tube
Popular Size: DIAMETER 4MM, 4.76MM, 6MM, 6.35MM, 7.94MM,8MM
12MM
Thichkness:0.5mm,0.65mm,0.7mm
Annual Output:8000tons
brand customer: Haier, Daewoo, LG,Pouya
Condensers and evaporator, according to customers drawings
]Specification And Dimension
OD | WT | ||
Nominal size | Allowable tolerance | Nominal size | Allowable tolerance |
4.76 6.00 6.35 8.00 | +0.05 -0.08 | 0.71 | +/-10Of Standard size |
10.00 12.00 | +0.08 -0.10 | ||
Note: Actual tube outside diameter equals to the arithmetic mean of maxOD and minOD across any section of the tube. Burr high:0.05-0.20mm | |||
Chemical Compositions
Steel specification | Chemical Compositions | |||||
C | Mn | Si | P | S | AL | |
08AI | 0.08 | ≤0.55 | -------- | 0.03 | 0.035 | 0.015-0.065 |
SPCE | 0.08 | 0.40 | 0.03 | 0.03 | 0.03 | ------ |
SPCD-S | 0.001-0.008 | 0.04-0.15 | ≤0.03 | ≤0.03 | ≤0.03 | ------- |
SPCD-SD | 0.001-0.008 | 0.04-0.15 | ≤0.03 | ≤0.03 | ≤0.03 | -------- |
SPCC-S | 0.001-0.008 | 0.04-0.15 | ≤0.03 | ≤0.03 | ≤0.03 | --------- |
SPCC-SD | 0.001-0.008 | 0.04-0.15 | ≤0.03 | ≤0.03 | ≤0.03 | -------- |
Mechanical Properties
Steel specification | tensile Strength(MPa) | yielding point(MPa) | elongation rate% |
08AI SPCE SPCD-S SPCD-SD SPCC-S SPCC-SD | 275-390 | ≥200 | ≥28 |
Technological Properties
Steel specification | Flaring rate% | bending | flattening |
08AI SPCE SPCD-S SPCD-SD SPCC-S SPCC-SD | 20 | r=3d a=180 | H=2S |
Note: r is short for ridius, H for flattening distance, d for diameter of steel tubes and s for wall thickness. | |||
Plating and coating
Ways | Copper plating | Zinc plating |
Plating thickness | 0.15-0.3 | 6-12 |
