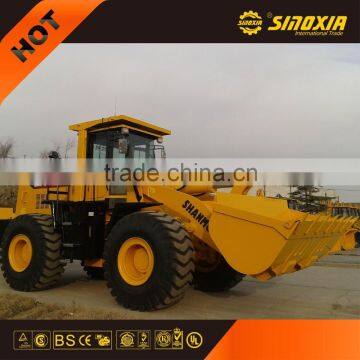

wheel loader SAM866 from china supplier

FOB Price

USD $30,000 - $70,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	SHANMON
Model Number	SAM866	Place of Origin	Shandong, China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	796530503470mm	Rated Load	6000kg
Certification	ISO9001	Warranty	1 Year
After-sales Service Provided	No overseas service provided

		Model	SAM866
Performance	1	Rated load	6000KG
	2	overall weight	18200KG
	3	rated bucket capacity	3.3 m3
	3	maximum tractive force	158KN
	4	maximum breakout force	204KN
	5	overall dimension (L×W×H)	7965×3050×3470mm
	6	maximum grade ability	30^o
	7	maximum dump height	3448mm
	8	maximum dump reach	1249mm
	9	minimum turning radius	7020mm
Engine	11	model	DHD10G0353
	12	type	lnline water cooling 4 stroke
	13	No. of cylinder-bore/stroke	6-126×130mm
	14	rated power	175kw
	15	maximum torque	950N.m
	16	min fuel-consume ratio	≤208g/kw.h
Transmission system	17	torque converter	YJ375
	18	gearbox mode	Powershift
	19	gear shift	4 forward shift and 4 reverse shift
	20	maximum speed	38km/h
Drive axles	21	main reducing spiral	bevel gear grade 1reduction
	22	decelerating mode	planetary reduction,grade 1
	23	wheel base (mm)	3200 mm
	24	wheel tread	2250 mm
	25	minimum ground clearance	520 mm
Hydraulic system	26	system working pressure	17MPa
	27	boom lifting time	6.05
	28	total time	10.8+0.5s
	29	fuel tank capacity	300L
	30	function of leveling automatically	Yes
Brake system	31	service brake	air over hydraulic disc brake on 4 wheels
Brake system	32	parking brake	manual parking brake
Tyre	33	type specification	26.5-25
	34	front tyre pressure	0.4Mpa
	35	rear tyre pressure	0.35Mpa
