Home > Products > Crawler Excavator > MIN. excavator of 6 ton

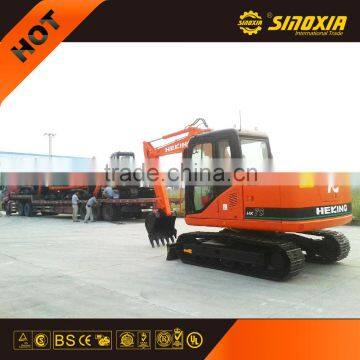

MIN. excavator of 6 ton
USD $28,000 - $32,000
/ Set
1 Set(Min.Order)
- shanghai port
- PayPal
You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | HEKING | |
| Model Number | HK70 | Condition | New | |
| Moving Type | Crawler Excavator | Operating Weight | 6310kg | |
| Bucket capacity | 0.25m3 | Maximum Digging Height | 5899mm | |
| Maximum Digging Depth | 3924mm | Machine Weight | 6310kg | |
| Max Digging Radius | 6695mm | Rated Speed | 4.9kg/h | |
| Certification | ISO9001 | After-sales Service Provided | Overseas service center available |
Product Description
| Specifications | |
| Standard bucket capacity | 0.25m3 |
| Operating weight | 6310kg |
| Rated power/Rated speed | 39kw/2200rpm |
| Model | 4TNV94L |
| Type | inter-cooled turbo |
| Max.torque | 191-208.3N.m/1320rpm |
| No.of cylindar | 4 |
| Displacement | 3.054L |
| Hydraulic system | |
| Operating pressure | 25MPa |
| Pump flow | 138.6L/min |
| Overall performance | |
| Max.digging force of arm | 30.7kN |
| Max.digging force of bucket | 44.5kN |
| Swing speed | 12rpm |
| Travel speed | 4.8/2.6km/h |
| Gradeability | 35°(70%) |
| Max.tractive effort | 46.3kN |
| Ground pressure | 33kPa |
| Dimensions | |
| Overall transport length | 5835mm |
| Overall transport width | 2000mm |
| Overall transport height | 2564mm |
| Track shoe length | 2662mm |
| Track gauge | 1600mm |
| Wheel tread | 2115mm |
| Track shoe width | 400mm |
| Min.front slew radius | 2162mm |
| Rear slew radius | 1650mm |
| Working range | |
| Max.digging reach | 6028mm |
| Max.digging depth | 3924mm |
| Max.vertical digging depth | 3620mm |
| Max.digging height | 5899mm |
| Max.dumping height | 4232mm |
