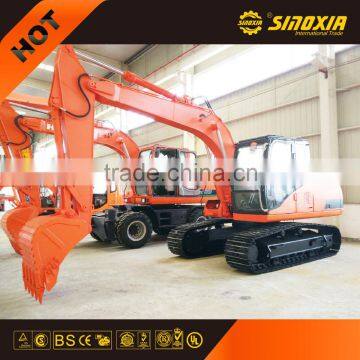

HK 150 crawler excavator for sale

FOB Price

USD $60,000 - $74,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China	Brand Name	HEKING
Model Number	HK150	Condition	New
Moving Type	Crawler Excavator	Operating Weight	13600kg
Bucket capacity	0.6m3	Maximum Digging Height	8358mm
Maximum Digging Depth	5953mm	Machine Weight	13600kg
Max Digging Radius	8250mm	Rated Speed	5.92km/h
Certification	CE ISO	After-sales Service Provided	Overseas service center available

Specification		HK150
Operating weight	kg	12600
Standard bucket	M3	0.6
Width of track shoe	mm	600
Boom length	mm	4600
Arm length	mm	2500
main pump max. flow	L/min.	2*138.6
Operating pressure	Mpa	30
Engine model	ISUZU	4BG1
Engine type		Vertical inline ,water cooled
No. of cylinder		4
Max. torque	Nm/rpm	449/1800
Rated power /rated speed	Kw/(r/min.)	89.3/2200
Engine displacement	L	4.329
Travel speed	Km/h	5.92/3.63
Swing speed	rpm	13.6
Gradeability		35/70
Tractive effort	kn	151.26
Max. digging force of bucket	kn	85
Max, digging force of arm	kn	67
Ground pressure	kpa	41.2
Fuel tank capacity	L	217
Hydraulic tank capacity	L	217
MAX.digging radius	mm	8250
Max. digging radius at ground	mm	8110
Max. digging depth	mm	5953
Max.vertical digging depth	mm	5520
Max. digging height	mm	8358
Max.dumping height	mm	6111
Min. front slew radius	mm	2475
Wheel span	mm	2953
Length of track	Mm	3680
Ground clearance of platform	mm	935
Overall height	mm	7997
Transporting height	mm	2840
Rear slew radius	mm	2319
Track gauge	mm	2000
Max. width	mm	2600
Width of track shoe	mm	600
Min. ground clearance	mm	481
Height of track	mm	842
Max. width of spper structure	Mm	2470
