RS232 to RS422 Converter

Features

1)Port-powered from RS232 port (TXD,RTS,DTR): no external power is necessary;

2)Convert RS-232(TXD,RXD signal) to RS-422 signal;

3) Plug-and-Play (hot-pluggable, Data format Auto-sensing & Self-adjusting);

4) Data direction auto-turnaround, no flow control is required;

5) Point to multi point, support 128 nodes loopback.

Introduction

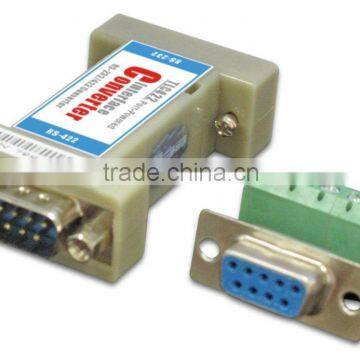

TLC422 is the interface converter between RS232 and RS422. It is powered from serial port (such as COM port of computer ), no outside power needed. Small size, long transmission distance, high rate, stable performance.The TLC422 has a DB9 female connector on the RS232 side and either a DB9 male connector or 5 bit terminal block on the RS422 side. It is used widely in the field of electricity, industrial automatic control, IC card billing system. It is a high quality low price data serial conversion product.

Specification

Parameter

Standards                              EIA RS-232C, RS-422 standard

RS-232 signal                      TX, RX, GND

RS-422 signal                      T+, T-, R+,R1,GND

Working mode                      Asynchronism, point to point, 4 wire half-duplex

Transfer rate                         300~115200bps, auto test serial signal rate detect signal speed automatically, zero delay time

Flow control                          Data direction auto-turnaround, no flow control is required

Max number of drops         128 nodes

Transfer distance                RS-422 side:1.2Km

                                                RS-232 side: no less than 5m

Port protect                           1500W surge protection,15KV ESD protection

Connector                             RS-232 side DB9 female

                                                RS-422 side DB9M(DB9F to 5 bit terminal block)

Power

Power input                          No power supply need, powered from RS-232 port TXD, RTS, DTR

Consumption                      Static less than 10mA, dynamic less than 40mA

Environment

Operating temperature               -10°C to 60°C

Storage temperature                  -40°C to 85°C

Humidity                                        5% to 95% (no condensation)

Appearance

Dimensions                 90.0mm×33.0mm×16.5mm(DB9)

Material                         Plastic (shell)

Weight                          40g

Warranty                     5 years

Approvals                    FCC, CE, RoHS approvals

Packing List

1) 3onedata Serial Converter TLC422×1

2) Separate terminal block(DB9F to 5 bit)×1

3) User manual×1
