Port-powered RS232 to RS422 Converter
- Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | 3onedata/OEM | |
| Model Number | TLC422 |
Product Description

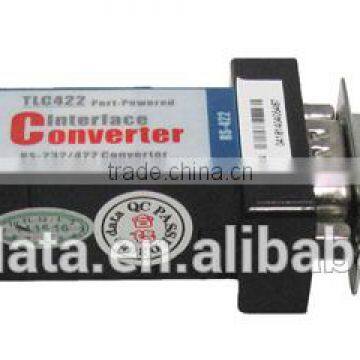

Port-powered RS-232 to RS-422 Converter
| Introduction |
| TLC422 is the interface converter between RS-232 and RS-422. It is powered from serial port (such as COM port of computer ), no outside power needed. Small size, long transmission distance, high rate, stable performance. It applys DB9 common serial port. It is used widely in the field of electricity, industrial automatic control, IC card billing system. It is a high quality low price data interface conversion product. |
| Features |
1. Port-powered from RS232 port (TXD,RTS,DTR): no external power is necessary |
| Specification | |
| Standard | EIA RS-232C, RS-422 standard |
| Interface | RS-232 signal: TX, RX, GND |
| Power Supply | Power input: No power supply need, powered from RS-232 port TXD, RTS, DTR |
| Environment Requirement | Working Temperature: -20~60°C Storage Temperature: -40~85°C Operation Humidity:10%~90%(non-condensing) Storage Humidity:5%~90%(non-condensing) |
| Physical Characterisitics | Size(W×H×D): 90mm×33mm×16.5mm Material: Plastic(shell) Weight:40g |
| Certification | CE, FCC, RoHS |
| Warranty | 3 years |
| Packing List | 1.RS-232 to RS-422 Converter TLC422 × 1 3. Certificate of quality × 1 |
| Dimension |
| |
| Show Case |
|
| Shipping |
|
| Order Information |
| TLC422: RS-232 to RS-422 converter, port powered |
