infant milk powder fill

Specifications

• Type: filling Machine
• Condition: New
• Application: powder
• Driven Type: Electric
• Automatic Grade: Automatic
• Voltage: 380V
• Power: 1.5kw
• Packaging Type: Cans
• Packaging Material: Metal
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: weichi
• Model Number: GT4B26
• Dimension(L*W*H): 1600*1100*1600mm
• Weight: 600kgs
• After-sales Service Provided: Engineers available to service machinery overseas
• Color: Metal

Packaging & Delivery

Specifications

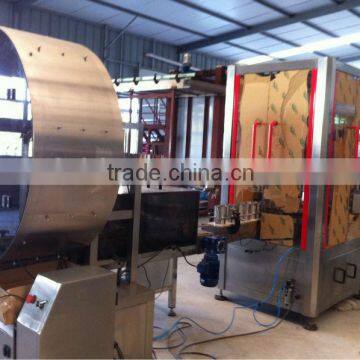

     This is the latest automatic powder seaming machine which suits high clean and high precision tinplate canned milk powder,protein powder and etc. The whole system is mainly of power-operated and pneumatic, and whole process controlled by PLC, user could setup or change the working data as required in touch screen. The over-all properties reach to similar machines overseas.

      Most of the machine is made of stainless steel, the shape is simple and beautiful and reach to GMP quality standard.

Technical data:

Item No: GT4B26

Power: 1.5kw

Capacity: 8-30 cans/min

The number of capping heads: 1

Weight: 600kgs

Can Diameter:φ99-153mm

Can Height: 100-240mm

Size: 1600*1100*1600mm

 Features:

1.  Two filling heads: Main filling head and complementary filling head (filling weight≤50g) to confirm milk powder filling precision;

2.  Servo and pneumatic system control can lift and moving. It is high speed and exact allocation;

3.  Servo motor and servo drive control screw. It is steady performance and high precision;

4.  Level open-type hopper(Inner and outer of the hopper is polishing),no dead angle and easy for clean;

5.  Fatek PLC control,Panelvisa touch screen human-computer interface display;

6.  Fast reaction weighing system (reaction time is less than1s) confirm high filling speed and precision;

7.  The filling head equipped with hand wheel to adjust height, main hopper could adjust 150mm and complementary hopper could adjust 100mm, so it suits to fill different sizes cans.

8. Equip with dust catcher, connect negative pressure pipeline and no dust pollution surrounding;

9. Level linear type structure, small occupation of land and easy for clean;

10. Fixing screw structure and no metal contamination when filling;

11. Working processing: can enter → lift can → oscillation → metering fill → oscillation →weighing and feedback →complementary fill → check-weighting and bad cans elimination → out

12. Equip with the devices of weighting and bad cans elimination;

13. Radio frequency admittance level control (Main hopper and complementary hopper );

14. Connect the can supply machine to realize linkage control;

15. Stainless steel structure;

16. Equip with herringbone pipe.
