birdsitter automatic chicken house poultry control farm equipment

  modern automatic chicken house equipment

                                (Brand:Birdsitter)

Major Description of Our Chicken Farm Design:

1.First part of the chicken farm design--automatic pan feeding system:

the most important part of the pan feeding system--Feeder Pan Details:

Bright Spots of Our Poultry Pan Feeder:

1.Save feed

2.Durable and long life span

3.Fully automatic operation

4.Easy install and clean up

5.Simple operation

2.Second part of the chicken farm design--squre nipple drinking system:

Poultry nipple drinking system contains many parts including the most  important part-nipple drinker and

some other essential parts such as drip cup,filter,pressure regulator, medical pump and so on.

The most important part is the nipple drinkers--nipple drinker:

Features and advantages of our nipple drinkers:

1.No leak

2.Least waste

3.Trouble-free operation

4.360 degree corner water-out

5.Stable and sufficient water supply

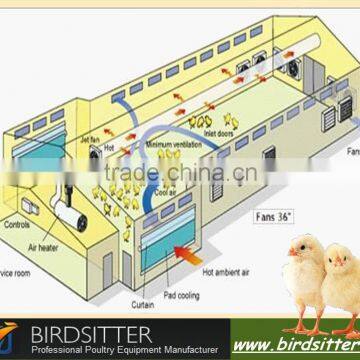

3.Third important part of the chicken farm design-ventilation system:

Descriptions of the fans and air inlets:

Descriptions of Cos50 ventilation fan and Cos36 ventilation fan:

Spec of the 50 box fan: 1.38*1.38*0.45

Power: (3ph.50HZ) 1.1kw

Exhaust air rate: 43940m³/h

Air inlets/window:

Air inlet spec:600*330*170mm

Protective net:reasonable closing design can prevent birds and insects

Pulley:patent design,rolling friction lower resistance,

easily switch

Spring:stainless steel spring with high quality, no rust

and long time use span

4.Fourth part of the chicken farm design--cooling pad system:

1.Our cooling pad frame work is made of aluminum.

2.Our cooling pad paper is made of special original paper pulp.

3.Spec of cooling pads:thickness 15cm or 10cm,height 1.5m,1.8m and

2m.

Air Flow Speed through Cooling Pad is recommended as following:

Thickness of 100mm:1.0-1.5m/s

Thickness of 150mm:1.0-1.5m/s

5.Other parts of the chicken farm design-- climatecontrol/

environment Control:

Including:

1.Environment Controller

2.Temperature Sensor

3.Alarm System

4.Humidity Sensor

Bright point of our poultry climate control

1.history data: display in a curve /data table ways

2.record poultry shed time data: temperature, humidity, ammonia etc in real time

3.alarem valve: figure alarm valve data and set alarm valve data like temperature, humidity, ammonia

4.running status: use animation form to display running status of fans, cooling pads, window intuitively and clearly.

5. alarm mode: use interface alarm, SMS alarm and some other ways to improve production safety

6.browse form: access the poultry shed data via internet monitoring system, thus improving management efficiency greatly

8.simple structure: only need controller and GPS data collection , system maintenance is without the scene, all by professional background maintenance.

Our service:

Sample: If necessary, we can usually offer the samples to customers by free,only need the customers to pay the transportation charge.

After-sales service:For some customers who install the equipment in China,we

can offer customers one year after-sales service by free,only need customers to pay

the cost of products which be changed.

For customers who need the products overseas,we can offer customers the guide

service for one year by free,and can send the products customers need for paying thecost by customer to our balance.We also will offer customers some necessary

accessories by free for big orders.

If you still have any questions, please contact with us at any time while you are convenient.
