Home > Products > Poultry equipment > ISO9001 qualifed birdsitter automatic chicken house poultry farming system
ISO9001 qualifed birdsitter automatic chicken house poultry farming system
- Qingdao/Tianjin/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
hottest sale broiler and breeder use broiler chicken farm
-
Popular Full Automatic Broiler Rearing Equipment for Poultry Chicken
-
Ready Sale automatic chicken farm machinery for broiler and poutlry farm equiment
-
full automatic chicken shed design for broilers and chicekn
-
Full Automatic Poultry Raising Equipment for Broiler breeder and Chicken
-
2015 hot sale Philippines poultry feeding line
Product Details
| Use | Bird | Type | finished product | |
| Material | gakvanized stainless steel | Place of Origin | Shandong, China | |
| Brand Name | BIRDSITTER | Model Number | BIRDSITTER |
Product Description

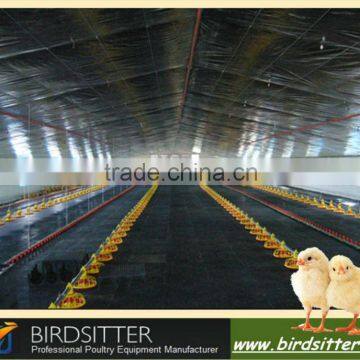

automatic chicken house poultry farming system
(Birdsitter)
Transaction record:
1.automatic chicken feed silo
Model No. | Spec | Height(Expect Base) | Diameter |
MX-3.4T | 5.06M2 | 3.7M | 1.83M |
MX-5.4T | 8.01M2 | 4.8M | 1.83M |
MX-7.5T | 10.96M2 | 5.9M | 1.83M |
MX-9.2T | 13.52M2 | 4.7M | 2.75M |
MX-13.7T | 20.17M2 | 5.9M | 2.75M |
MX-18.5T | 27.17M2 | 6.1M | 3.67M |
MX-36.5T | 38.99M2 | 7.2M | 3.67M |
2. Automatic chicken tube auger pan feeding system
Pan feeder Model N. | RP08 |
Pan feeder Material | PP and hybrid materials |
Color of pan feeder | red and yellow |
Downfall feed speed | 450kg/h |
Weight of feeder | 1.8kg |
Raising capacity/ pan | 45~60 chicken |
Each unit | 3 pans /3 meters, 4 pans/ 3 meters |
Feeding line interval | 3 meters |
Max supply length | 150 meters |
Driven motor power | (3ph. 50 HZ) 0.75 kw |
Auger | Imported from south Africa |
Motor | Taiwan YK |
Feed pipe | Hot dip galvanized stainless steel sheet(Thickness:275g/cbm,Tube dia.:45mm) |
Control pan | Made in China |
Hopper | Hot dip galvanized stainless steel sheet(Thickness:275g/cbm) |
Winch | H3500 pond |
3. Germany Lubing 360 degree Nipple Drinking System
Nipple drinker Model N. | LP25 |
Nipple drinker Material | PP and hybrid materials |
Color of nipple drinker | red |
Raising capacity/ nipple | 8~15 chicken |
Each unit | 8 /10 / 12 15 nipples /3 meters |
Feeding line interval | 2.5 meters |
Max supply length | 150 meters |
Drip cup | PP and hybrid materials |
Nipple drinker | Square pipe nipple (Tube Dia.:22mm) |
winch | H1500 |
Pressure regulator | Made in China |
Medical pump | Frence Dostron |
4. hot dip galvanized Ventilation system
Specification(50 model) | (Box Fan)1380*1380*450mm (Cone Fan)1380*1380*130mm |
Power | (3ph.50HZ)1.1KW |
Exhaust air rate | 43940m3 / h |
Framework | Hot dip galvanized sheet (Thickness of zinc: 275g/cbm ) |
Blade | The Italy imported aeronautical aluminum alloy (diameter: 1270mm) |
Window- shades | Hot dip galvanized blade |
Belt pulley | V belt pulley made by the high strength, light Al-Mg alloy material. |
Leather belt | Import from Japan |
Motor | the American Ian Lowitt motor |
Specification(air inlet) | 600*330*170mm |
Protective net | Stainless steel |
Pulley | Patent design |
spring | Stainless steel |
materials | Polystyrene insulation and anti-UV material |
Feature | No rust easily switch as well as good warm-keeping effects |
5. Evaporative Cooling Pad
Model | 7060; 7090 |
Color | Yellow; brown |
Thickness | 100mm; 150mm |
Height | 1500mm; 1800mm; 2000mm |
Ripple Height | 7mm |
Ripple Angle | 45*45 |
Price Terms | FOB qingdao |
Loading Port | Qingdao, China |
Delivery time | Within 10 working days after down payment |
Package | Packing in cartons |
ISO9001 Quality Assurance
Our company products have exported to many countries across the world and Here is our packing and shipping as well as our after sale service installation in our clients' home.
Jinan Mingxiao Mechanical EquipmentCo,. Ltd, located in jinan city, the world famous spring city of Shandong
province China, is a professional company in livestock equipmant research and development. Our main products
include: pan feeding system, nipple drinking system,high spray pressure system,poultry house environment
control system,cooling pad sysetem and the cage of breeders, laying hens, and broliers etc
Mingxiao work on product development, manufacturing,sales, installation and service as a whole. Products are
with a high degree of automatic, adaptable,easy operation,long using life and other characteristics that help
improve the economic efficiency. Therefore, our company is your best choice for large-scale farming.
Our compang has passed ISO9000 Quality Assurance System Certification, to produce first-class products
and build the highest and best projects as the goal. Our company works towars systematical, intelligent and
international development direction, and has independent import and export rights, our product has exported to the United States,
Canada, Chile, Venezuela, Ecuador,Spain, Irelad,Ukraine, Tunisia, Egypt, South Africa,Saudi Arabia, Pakistan, the philippines and
the other countries and regions all around the world.
1.Q :If I need all the equipment, and also need a best price ,what should I do ?
A: Please let us know: 1.the size of your poultry house(the length and the width)
2.the quantity of chicken you are going to raise
3.the weight of chicken when you sell them to the market
2.Q: what's the material of feeding pan and feeding pipe?
A: the material of feeding pan is ABS plastic.
the material of feeding pipe is galvanized pipe.
3.Q: what's the material of nipples ?
A:the nipples consist of plastic and stainless steel. the stainless steel grade is :304.
4.Q: what's the material of nipple pipe?
A:ABS plastic
5.Q: how much is the life of your products?
A: More than 10 Years
6.Q:Do you have any certificate?
A:ISO9001&NTSQP
7.Q:Sample available?
A:Yes. but the client charge for the freight fee.
contact us
what's app: 86-18254589672
Skype: kayla yue
