Free Shipping! 2015 Version 40W LY3020 CO2 Digital Laser Engraving Machine,cutting Machine, Engraver

Free shipping! 2015 Version 40W LY3020 CO2 Digital laser engraving machine,cutting machine, engraver

Good news!~

New Adding Functions on old models!~

More functions,but price still same!~

1.Air blowing,

2. Infrared testing.

3.Up & Donw Control

4.12MM lense,metal reflector mirrors

5.Drag chain design,more accurate.

6.Honeycomb board included.

Item specifications:

Communication Interface: USB Port

FDA Compliant: Yes

CE Certification: Yes

ISO9001 Quality Certification: Yes

Laser Type: CO2 Gas

Tube Trigger Volt: 20KV

Tube Operating Volt: 15KV

Current: 18~22mA

Engraving Area: 12x8in.(30x20cm)

Maximum Item Size to Engrave: 300x200x80mm(L*W*H)

Laser Tube (life hours): 1000-1300 Hours

Laser Power: 40W

Engraving Speed: 0-180mm/s  (0-7 in./s)

Cutting Speed: 0-18mm/s (0-0.7 in./s)

Minimum Shaping Character: 1 X 1mm (0.04 X0.04)in.

Resolution Ratio: 0.026mm / 0.001 in.  (1000dpi)

Power Supply:110V/60Hz for USA, Canada, Japan etc220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item

Resetting Positioning: ≤0.01mm (0.0004 in.)

Motor Type: Stepper Motor

Software Supported: USB port.(CDR software,corellaser,much better than moshidraw)

Power Consumption: ≤250W

Operating Temperature: 32-113F (0-45C)

Graphic Format Supported: PLT/DXF/BMP/JPG/GIF/PGN/TIF

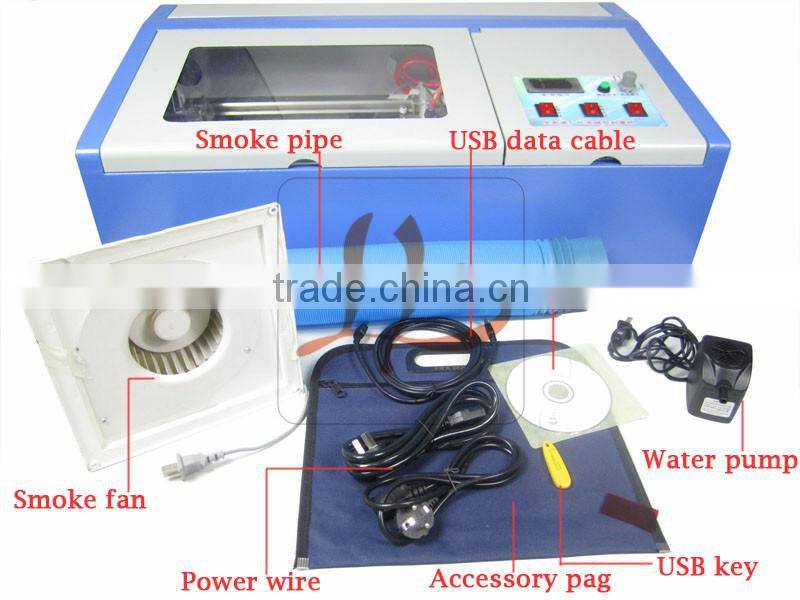

Water Cooling: Water Pump include

Recommended Spare Parts/Consumables: Laser Tube, Focal lens, Reflection lens

Product Dimensions:31.4 X 19.6 X 9.8in.(800x500x250mm)

Product Weight: 50Kg/67lb (shipping 38kg/80lb)

One year warranty

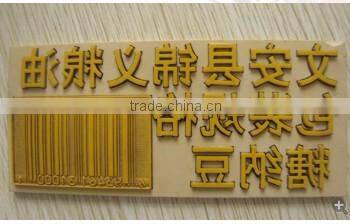

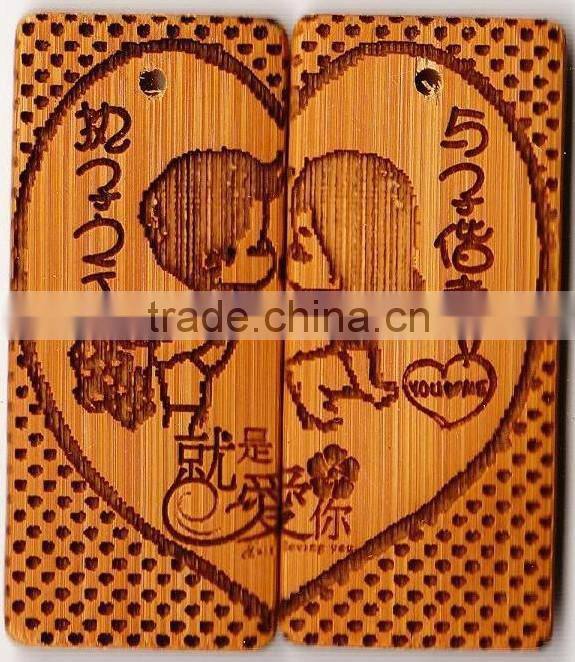

Applicable Material:

LY CO2 Laser 3020 Mini Laser Engraving and Cutting Machine is suitable for various materials, such as bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, abrics, paper ,film, canvas , Acrylic, Plastics and painted/coated metals (metals that are not coated or painted will require a LMM spray). If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you. Just email me for details.

Applicable Industry:

    This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, , shoemaking,  furniture , model industry, craftwork  and other industies

Why our product better than other similar product?

We add new function --Digital function on our new 3020 model.

More functions,but price still same!~

1.Air blowing,

2. Infrared testing.

3.Up & Donw Control

4.12MM lense,metal reflector mirrors

5.Drag chain design,more accurate.

6.Honeycomb board included.

Please choose new LY model from now on.

This machine integrates the newest light, machine and electricity mechanical movement to design this hign precise and high speed three generation modal CO2 LASER Engraver.

1.USB Port to Computer.

2.CDR Software Included, it can be employeed in both carving and cutting works.

3. Adopt Japan imported mainboard and chip which can control the engraving more precise.

4. Adopt Germany imported bearing and high accuracy stepping belt which not only make the engraving more precise, also make the machine life time twice to three times than ordinary CO2 LASER Engraver.

5. Additionally built the micro-active switch to enable the machine do not light when canopy is open which enhance security.

6. The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.

7. Built the heat dispersed fan to reduce all electronic component's temperature. Thus lengthen electronic component's life and the higher technical volatility.

8. High Precision Stepping motor makes engraving more precise.

9. This machine supports any kind of model printer, the scanner.Be compatible with TIF international standard fonts and PLT / DXF / BMP / JPG / GIF / PGN and TIF.
