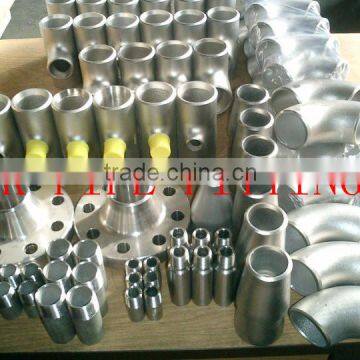

Stainless Steel Elbows Long Radius Stainless Steel Elbows Short Radius NACE MR0175

1. Grade:  BUTT WELD FITTINGS

Carbon Steel :A234 WPB and WPHY42 to 80

Low Temperature Pipes  :A420 WP3 and WP6

Stainless Steel & Special Stainess Steel  A403 WP 304/304L, WP316/316L, WP310, 317, 321, 347, 410, 904, H grades

A815 UNS S31803 – Duplex 2205   A815 UNS S32750 / S32760 - Super Duplex 2507

Alloys Steel  :A234 WP5 / WP9 / WP11 / WP22 / WP91

Special Alloys  Nickel Alloys

Nickel 200/201 - B366 - UNS N02200/N02201  Alloy 400 - B366 - UNS N04400 - Monel® 400

Alloy 600 - B366- UNS N06600 - Inconel® 600   Alloy 625 - B366 - UNS N06625 - Inconel® 625

Alloy 800H/800HT - B366 - UNS N08810/N08811 - Incoloy® 800H/HT  Alloy 825 - B366 - UNS N08825 - Incoloy® 825

Alloy 276 - B366 - UNS N10276 - Hastelloy® C-276

Titanium Alloys   :B363 Gr 1 / 2 / 5 / 7

2. Size: 1/2''---48''

3. Standard:JIS , DIN , ANSI, EN , GOST

4. Certification: ISO9001, SGS, CTI, ROHS

5:Inspection Procedures

Butt-welding fittings are subjected to strict in-process inspection at each stage of the production process –from starting materials handling to finished product shipping. We are visually examined for conformity to company specifications and tested under the applicable ASTM, ASME, MSS and JIS codes and standards. We are also tested to make sure we conform to our intended use. Upon request, we call in officially certified test agents to witness the inspection procedures. Butt-welding fitting are manufactured in conformity with the following standard.

Applicable standards

ASTM A234 Pipe Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperatures Service

ASTM A403 Wrought Austenitic Stainless Steel Piping Fittings

ASTM A420 Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low- Temperatures Service

ASTM A860 Wrought High-Strength Low-Alloy Steel Butt-welding Fittings

ASME B16.9 Factory- Made Wrought Steel Butt-welding Fittings

MSS SP-43 Wrought Stainless Steel Butt-welding Fittings

MSS SP-75 High- Test Wrought Steel Butt-welding Fittings

JIS B2311 Steel Butt-Welding Pipe Fittings for Ordinary Use

JIS B2312 Steel Butt-Welding Pipe Fittings

JIS B2313 Steel Plate Butt-Welding Pipe Fittings

.
STARTING MATERIAL RECEIVING INSPECTION

Butt-welding fittings are made of materials which meet ASTM and intracompany specifications.

Starting material inspection is carried out at follows:

1) Dimensional Inspection

Dimensions are inspected at each end of the purchased material.

2) Visual Inspection

Inspected is performed according to OK Fitting . “acceptable surface condition” standard.

3) Collating

Judgement is made as to whether is worthy of the inspection by computorised collating the described items with the materials certificates.

The following other inspections are performed if necessary.

- Ultrasonic Examination  - Magnetic Particle Examination  - Liquid Penetrant Examination

- Ultrasonic Thickness Inspection  - Mechanical Test

- Others


IN-PROCESS INSPECTION


Butt-welding fittings are manufactured with carefully selected materials of the finest metallurgical quality on well-controlled jigs, tools or molds based on ok fitting  Various working standards. Meeting quality specifications is a key feature of ok fitting  butt-welding fittings.

The following are the major in-process inspection items.

- Visual Inspection  - Dimensional Inspection  - Shape Inspection  - Hardness Test

- Temperature Check  - Processing Conditions Check  - Material Identification ( by marking )

- Others

FINAL INSPECTION

The final inspection of ok fitting butt-welding fitting is performed as follows:

1) Standard Product Inspection

Applicable for ok fitting butt-welding fittings produced under ASME B16.9 and other specifications

VISUAL INSPECTION

Butt-welding fittings are visually inspected to confirm that both internal and external surfaces are smooth and without harmful defects. ok fitting . “acceptable surface condition” standard is used as the standard for visual tests.

DIMENSIONAL INSPECTION

Butt-welding fittings are inspected for conformity with ASME or MSS and JIS dimensional tolerances


2) Special Product Inspection

Applicable for every products manufactured to meet specifications requested by customers.


VISUAL INSPECTION

Butt-welding fittings are visually inspected. Criteria are based on those of the standard product.

Special specifications are determined by agreement between the customer and ok fitting

DIMENSIONAL INSPECTION

The inspection is usually based on specifications stipulated by the customer.

SPECIAL INSPECTION

In the case of special requirements specified by the customer, nondestructive examinations and mechanical tests are performed.

We offer a wide range of pipe fittings and flanges. Our range of pipe fittings and flanges include carbon steel pipe fittings, alloy steel pipe fittings, forged and butt weld steel fittings, flanges, tee’s. These fittings are available in size range from ¼” Outside Diameter through to 48” Outside Diameter. We stock all the available grades in fittings and flanges.



Specifications and Grades:> SA-132, SA-234, SA-860, SA-420, SA-105  > SA-350, SA-694



Flanges are available in types:

> Blind Type Flange

> Slip on Type Flange

> Threaded Type Flange

> Welded Neck Type Flange

> Socket-Welded Type Flange



Sizes Ranges from ½” to 50”

Material from conventional Cast Carbon Steel, Stainless Steel, 10Crm9-10 and 13Crm44/4-5.



Pressure Ratings available in PN6, PN10, PN16, PN25, PN40, PN64, Ansi 150, Ansi 300, Ansi 600, Ansi 900, Ansi 1500 and Ansi 2500.

Reducer
> Available in both Concentric and Eccentric; both in Standard and Sanitary type

> Size Ranges DN15-DN600 (1/2”- 24”)

> Wall thickness S10S – S160S

> Standards: ASME/ANSI B16.9, GB/T12459, GB/T13401, SH3408, SH3409, HG/T21635, HG/T21631, MSS SP-43, DIN 2605, JIS B2313

> Material: Carbon Steel, Stainless Steel, 10CrMo910, 13Crm44-5

ELBOW

> Available in 45, 90, 180 degree, both in Standard and Sanitary Types

> Size Ranges: DN15-DN600 (1/2” – 24”)

> Wall thickness: SCH10S – SCH160S.

> Standards: ASME/ANSI B16.9, GB/T12459, GB/T13401, SH3408, SH3409, HG/T21635, HG/T21631, MSS SP-43, DIN 2605, JIS B2313.

> Materials: Carbon Steel, Stainless Steel, 10Crmo910 and 13Crm44-5.

> Available in Short and Long Radius

CAPS

Size Ranges: DN15-DN600 (1/2” – 24”)

> Wall thickness: SCH10S – SCH160S.

> Standards: ASME/ANSI B16.9, GB/T12459, GB/T13401, SH3408, SH3409, HG/T21635, HG/T21631, MSS SP-43, DIN 2605, JIS B2313.

> Materials: Carbon Steel, Stainless Steel, 10Crmo910 and 13Crm44-5

TEE'S

Available in both equal and unequal; Standard and Sanitary Types

> Size Ranges: DN15-DN600 (1/2” – 24”)

> Wall thickness: SCH10S – SCH160S.

> Standards: ASME/ANSI B16.9, GB/T12459, GB/T13401, SH3408, SH3409, HG/T21635, HG/T21631, MSS SP-43, DIN 2605, JIS B2313.

> Materials: Carbon Steel, Stainless Steel, 10Crmo910 and 13Crm44-5

Packing Details  : Standard Exported Packing

Delivery Details : 3-30 days after order
