12V 24v Universal Led Drl Daytime Running Lights

Specifications

12V 24v universal led drl daytime running lights  kit  for any cars, SUVs, or trucks

Specification of DRL-202

1).Product name: LED daytime running lights (LED DRLs)

2).Model: DRL-202(36 pcs Oval Style LED DRLs)
3).Certificate: E4
4).Whole kits Consist: Two LED lamps kits (Left one and right one), wiring, and one gift box
5). Lamp Consist: Electronic circuit board, viewfinder, wiring, lamp hull and housing;
6) Dimension: 90mm x 36mmx 95mm
                   230mm x 220mm x60mm (BOX)
2. Technology Parameters:
1).Rated Working voltage: DC 12V;
2).Rated Power consumption: 3W;
3).Bulb Color temperature range: 6,000K-7,000K;
4).Brightness is between 50 to 70 LM
3. Electronic Protection:
1). High-Voltage Protection:
The control system will stop working automatically to protect the control module from damage when the power voltage is higher than 15.5V, then LED daylight only works by the outer power directly;
2). Low-Voltage Protection:
The LED daylight will shut off to protect the system once the voltage is lower than 9V;
3). Lose-Frequency Protection:
The LED daylight shut off once the control frequency is abnormal to protect the control module and LED daylight.
4).Wrong-Connection Protection:
It is no harmful to electric circuit when the three cables of LED were connected incorrectly. The LED daylight is off when connection is incorrect; it will be on when connection is right. The three cables of LED daylight are VBB, Vss and VC respectively.
4. Other characters:
1).Shockproof:
The shockproof character of the LED DRL is accord with the requirements of the automotive relevant technical specifications.
2). Waterproof and Corrosion proof:
The waterproof and corrosion-resistance of the LED DRL is accord with the requirements of the automotive relevant technical specifications.

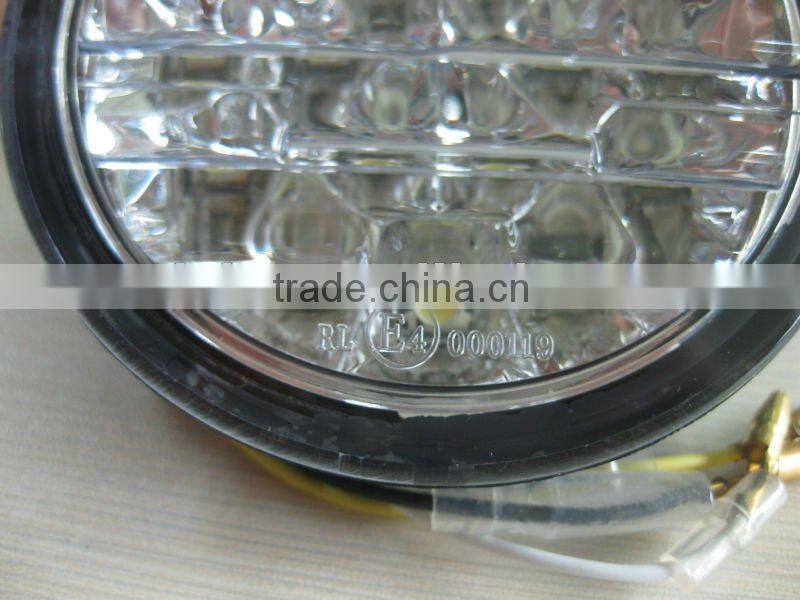

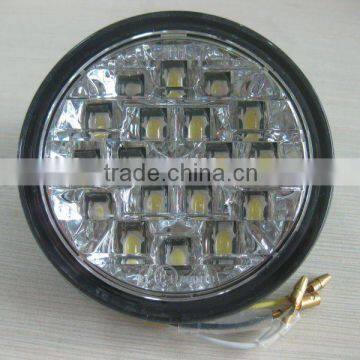

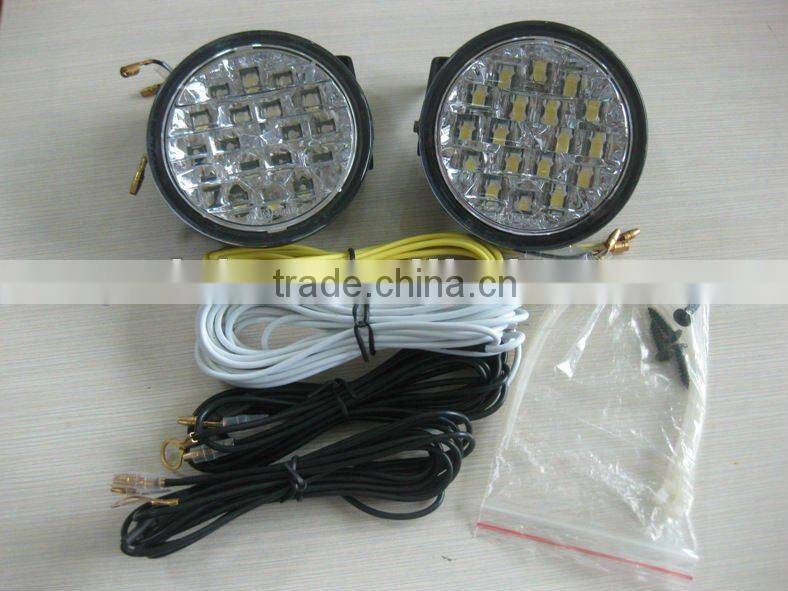

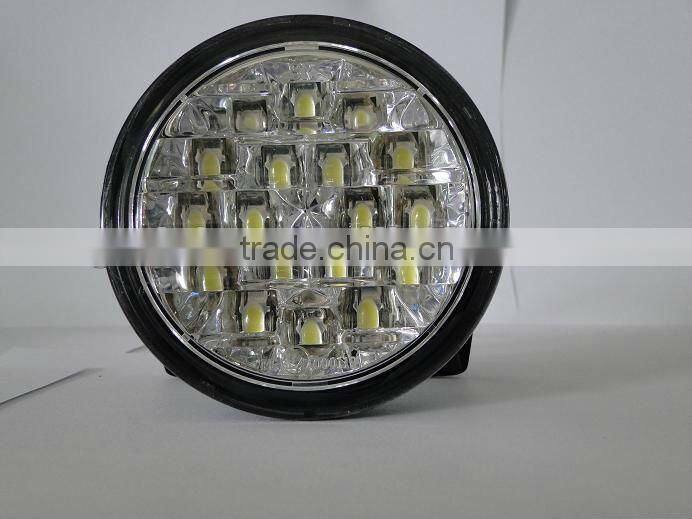

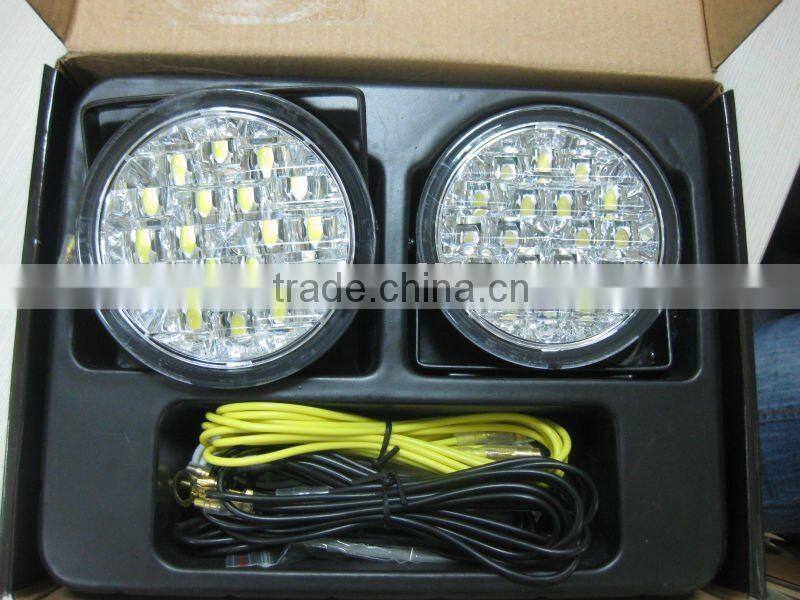

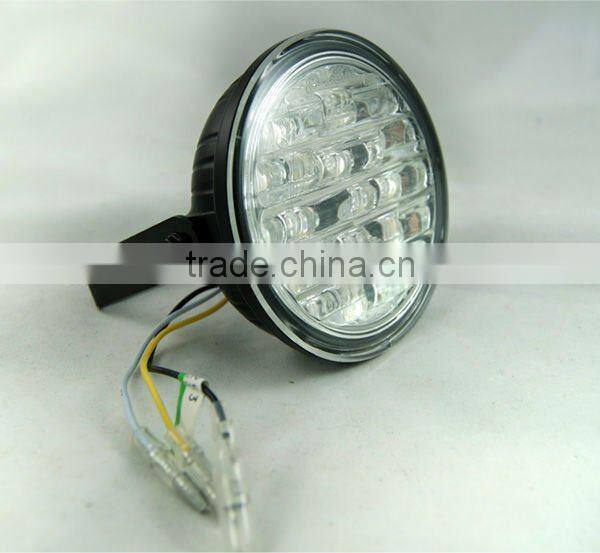

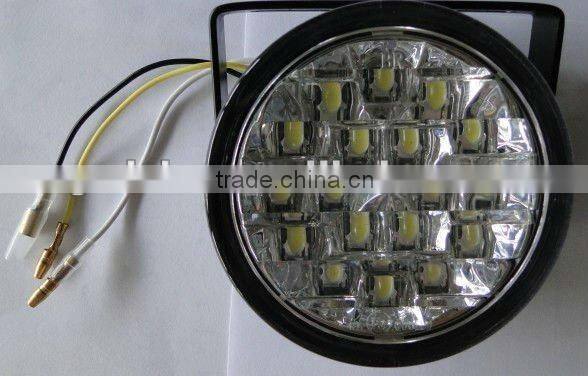

Detailed pictures

Factory pictures
