Circular Type Mobile Vibrating Screen For Ore Mining Plant
- TianJin QingDao ShangHai
- T/T
You May Like
-
Ore Mining Circular Vibrating Screen for Ore Classifying
-
Circular Type Mining Vibration Screen Machine
-
Ore Mining Vibrating Screen With Safe Operation
-
Small Size Vibrating Screen Machine For Ore
-
Stainless Steel Mesh Linear Vibrating Screen For Silica Sand
-
Fine Powder Sieving Machine Linear Vibrating Screen
Product Details
| Condition | New | Type | Circular | |
| Application | Ore | Place of Origin | Henan, China | |
| Brand Name | HengXing mobile vibrating screen | Model Number | YK 1545,YK1854,YK2160,etc | |
| Voltage | 380V | Power(W) | depending on model | |
| Dimension(L*W*H) | refer to different specification | Weight | depending on models | |
| Certification | ISO9001:2008,CE | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Circular Type Mobile Vibrating Screen For Ore Mining Plant :
Features of the vibrating screen:
Simple and dependable Eccentric type system.
High screening capacity.
High durability.
No transmission of screen panels.
Ready changing of screen plates.
Rigid and vibrating resistance screen body.
Vibrating screen application:
Hengxing brand vibrating screen is specially design for quarry to sperate stone into different sizes.
The circular vibrating screens work on circular motion. The series of YK is the lastest model in China.
The eccentic shaft vibration exciter and partial block help to adjusy amplitude. This machine bears
the features of different specifications, reliability, strong exciter, high efficiency, little noise,
durability,convenient maintenance safety.
Work principle of Hengxing brand vibrating screen:

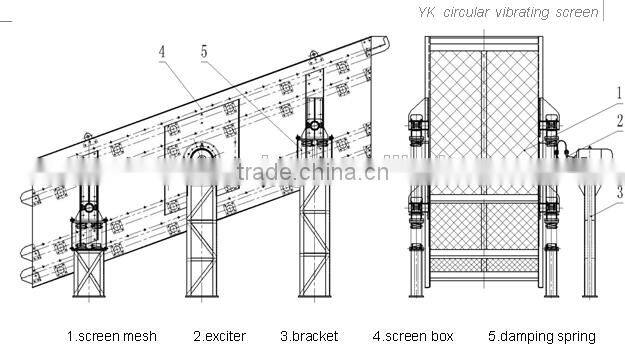

Vibrating screens is compiled of mainframe, eccentric bock, screen web, rub spring, electric
motor,coupler and some more. Vibrating Screen moves round.It has multi-layers and is of high
efficiency.The eccentric shaft vibration exciter and partial block help to adjust amplitude. The
material drops down along the long line.
Vibrating screen main technical parameters:
| Model | Screen Deck | Installation Slope(°) | Deck Size (m2) | Vibrating Frequency (r/min) | Double Amplitude (mm) | Capacity(m3/h) | Motor Power (kw) | Overall Dimensions (L×W×H) (mm) | Weight (kg) |
| 2YK1224 | 2 | 15 | 2.88 | 970 | 6-8 | 20-120 | 5.5 | 2673×2382×2027 | 1750 |
| YK1235 | 1 | 15 | 4.2 | 970 | 6-8 | 20-150 | 5.5 | 3710×2464×1450 | 1729 |
| 2YK1235 | 2 | 15 | 4.2 | 970 | 6-8 | 20-150 | 7.5 | 3705×2393×2339 | 2476 |
| 3YK1235 | 3 | 15 | 4.2 | 970 | 6-8 | 20-150 | 7.5 | 3621×2521×2581 | 3158 |
| 4YK1235 | 4 | 15 | 4.2 | 970 | 6-8 | 20-150 | 11 | 3510×2521×2830 | 4160 |
| YK1545 | 1 | 17.5 | 6.75 | 970 | 6-8 | 20-150 | 11 | 4904×3044×2179 | 3319 |
| 2YK1545 | 2 | 17.5 | 6.75 | 970 | 6-8 | 20-150 | 15 | 5042×3090×3165 | 5308 |
| 3YK1545 | 3 | 17.5 | 6.75 | 970 | 6-8 | 20-150 | 15 | 4972×3090×3395 | 5915 |
| 4YK1545 | 4 | 17.5 | 6.75 | 970 | 6-8 | 20-150 | 18.5 | 4915×3155×3804 | 7260 |
| YK1548 | 1 | 17.5 | 7.2 | 970 | 6-8 | 20-150 | 11 | 5190×3044×2186 | 3319 |
| 2YK1548 | 2 | 17.5 | 7.2 | 970 | 6-8 | 20-150 | 15 | 5265×3140×3208 | 5284 |
| 3YK1548 | 3 | 17.5 | 7.2 | 970 | 6-8 | 20-150 | 15 | 5200×3090×3440 | 6186 |
| 4YK1548 | 4 | 17.5 | 7.2 | 970 | 6-8 | 20-150 | 18.5 | 5200×3155×3849 | 7284 |
| YK1860 | 1 | 20 | 10.8 | 970 | 6-8 | 32-350 | 15 | 6302×3365×2992 | 4651 |
| 2YK1860 | 2 | 20 | 10.8 | 970 | 6-8 | 32-350 | 18.5 | 6020×3455×3756 | 6195 |
| 3YK1860 | 3 | 20 | 10.8 | 970 | 6-8 | 32-350 | 18.5 | 6020×3455×4180 | 7613 |
| 4YK1860 | 4 | 20 | 10.8 | 970 | 6-8 | 32-350 | 22 | 5963×3505×4463 | 8650 |
| YK2160 | 1 | 20 | 12.6 | 970 | 6-8 | 66-720 | 18.5 | 6302×3730×2992 | 4917 |
| 2YK2160 | 2 | 20 | 12.6 | 970 | 6-8 | 66-720 | 22 | 5966×3958×3975 | 6856 |
| 3YK2160 | 3 | 20 | 12.6 | 970 | 6-8 | 66-720 | 30 | 5966×3958×4400 | 9112 |
| 4YK2160 | 4 | 20 | 12.6 | 970 | 6-8 | 66-720 | 30 | 5966×3958×4780 | 11405 |
| YK2460 | 1 | 20 | 14.4 | 970 | 6-8 | 75-750 | 18.5 | 6302×4155×2992 | 5243 |
| 2YK2460 | 2 | 20 | 14.4 | 970 | 6-8 | 75-750 | 30 | 6027×4308×3975 | 8503 |
| 3YK2460 | 3 | 20 | 14.4 | 970 | 6-8 | 75-750 | 30 | 6027×4308×4400 | 10411 |
| 4YK2460 | 4 | 20 | 14.4 | 970 | 6-8 | 75-750 | 30 | 5966×4308×4780 | 12068 |
| 2YK2475 | 2 | 20 | 18 | 970 | 6-8 | 120-900 | 30 | 7812×4308×4642 | 10709 |
| 3YK2475 | 3 | 20 | 18 | 970 | 6-8 | 120-900 | 37 | 7718×4393×5033 | 13400 |
| 4YK2475 | 4 | 20 | 18 | 970 | 6-8 | 120-900 | 45 | 7718×4494×5361 | 15500 |
| YK3060 | 1 | 20 | 18 | 970 | 6-8 | 200-900 | 30 | 6302×4943×3108 | 14052 |
| 2YK3060 | 2 | 20 | 18 | 970 | 6-8 | 200-900 | 37 | 6207×4943×3985 | 17185 |
| 3YK3060 | 3 | 20 | 18 | 970 | 6-8 | 200-900 | 45 | 6207×4943×4485 | 19200 |
| 4YK3060 | 4 | 20 | 18 | 970 | 6-8 | 200-900 | 45 | 6207×4943×4785 | 21080 |

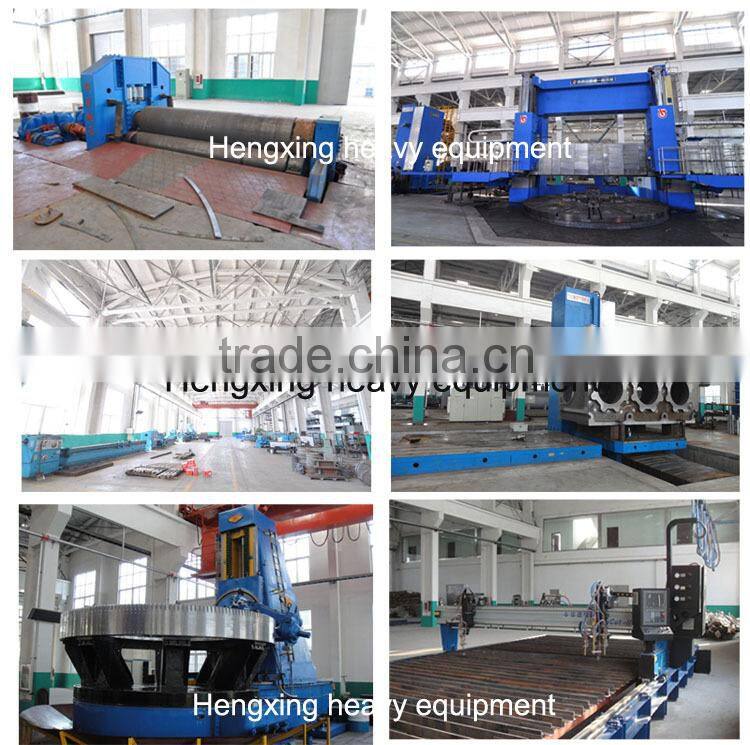

Our workshop:
Weclome to visit our factory !
And contact:
Ms Sara Pang
Mobile phone : (whatsapp number): 0086137 8347 1727
Skype: sarapang6
Wechat: sarapang6
