Hot Dipped Galvanized Hexagonal Wire Mesh, Hexagonal Iron Wire Netting

FOB Price

US$ 2.19 - 25 / Ton

10 Tons(Min. Order)

Port Tianjin China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	Hexagonal wire mesh
Model Number	Hexagonal wire mesh	Material	Other, Low-Carbon Iron Wire, Low-Carbon Iron Wire
Type	Welded Mesh	Application	Fence Mesh
Hole Shape	Hexagonal	Aperture	60-250mm
Wire Gauge	BWG12-BWG24

Product Description

Specifications

1.Hexagonal wire mesh
2.Wire diameter: 0.5 to 4.8mm
3.Length: 5 to 150m
4.Mesh size: 1/4"--5"
5.OEM supplied

Assortments Available:

Electro Galvanized before Weaving
Electro Galvanized After Weaving
Hot Dipped Galvanized before Weaving
Hot Dipped Galvanized after Weaving
PVC Coated Before or After Weaving
Stainless Steel Wire
Galvanized Drawn Iron Wire

Galvanized hexagonal wire netting
mesh			Min. Gal.v. G/SQ.M	Width	Wire Gauge (Diameter) BWG
Inch	mm	Tolerance(mm)	Min. Gal.v. G/SQ.M	Width	Wire Gauge (Diameter) BWG
3/8"	10mm	±1.0	0.7mm - 145	2' - 1M	27, 26, 25, 24, 23
1/2"	13mm	±1.5	0.7mm - 95	2' - 2M	25, 24, 23, 22, 21
5/8"	16mm	±2.0	0.7mm - 70	2' - 2M	27, 26, 25, 24, 23, 22
3/4"	20mm	±3.0	0.7mm - 55	2' - 2M	25, 24, 23, 22, 21, 20, 19
1"	25mm	±3.0	0.9mm - 55	1' - 2M	25, 24, 23, 22, 21, 20, 19, 18
1-1/4"	31mm	±4.0	0.9mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
1-1/2"	40mm	±5.0	1.0mm - 45	1' - 2M	23, 22, 21, 20, 19, 18
2"	50mm	±6.0	1.2mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
2-1/2"	65mm	±7.0	1.0mm - 30	1' - 2M	21, 20, 19, 18
3"	75mm	±8.0	1.4mm - 30	2' - 2M	20, 19, 18, 17
4"	100mm	±8.0	1.6mm - 30	2' - 2M	19, 18, 17, 16

Note:
1.) The above tolerance comply with standard EN10223-2:1997;
2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.

PVC Coated Hexagonal Wire Netting
Mesh		Wire Gauge (MM)	Width
Inch	MM	-	-
1/2"	13mm	0.6mm - 1.0mm	2' - 2M
3/4"	19mm	0.6mm - 1.0mm	2' - 2M
1"	25mm	0.7mm - 1.3mm	1' - 2M
1-1/4"	30mm	0.85mm - 1.3mm	1' - 2M
1-1/2"	40mm	0.85mm - 1.4mm	1' - 2M
2"	50mm	1.0mm - 1.4mm	1' - 2M
Five Star also offer other specifications you need

Note: The thickness of PVC Coating is usually 0.2-0.4mm, others may arranged as per buyers' request;

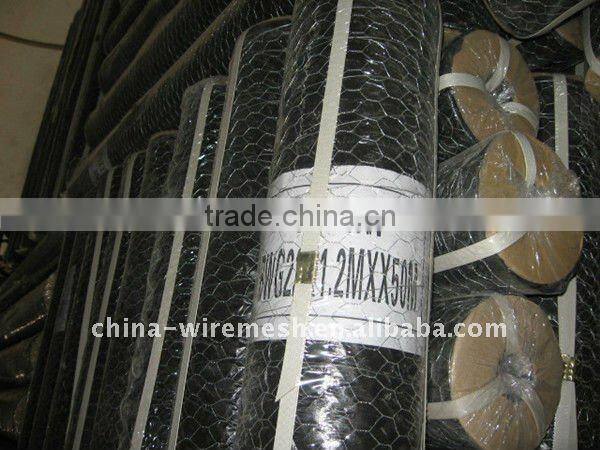

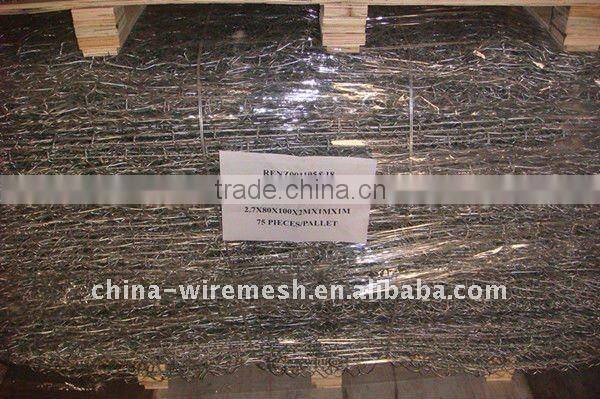

Package: Normally each roll packed in water proof paper, then in termo foil (Shrinked Plastic);
