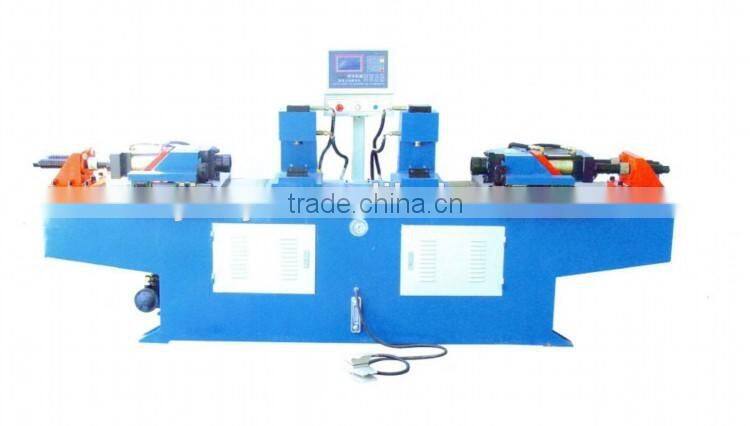

High-efficiency Double Head Steel Tube End Forming Machine TM40
- Shanghai port China
- T/T
You May Like
-
High-efficiency Hydraulic Pipe End Forming Machine
-
Zhangjiagang Steel Tube End Shaping Machine
-
Precise Hydraulic Pipe End Shaping Machine
-
High-efficiency and Precise Double Head Steel Tube End Forming Machine
-
High-efficiency and Precise Double Head Steel Tube End Shaping Machine
-
ZhangjiagangT-M100 Double Head Steel Tube End Shaping Machine for Sale
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JSY | |
| Model Number | TM40 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specification
Function

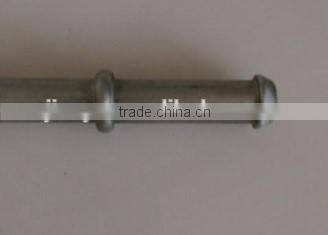

It use to reduce or expand the tube diameter, swaging, mold into other shapes;
It apply for molding of junctures of pipe connecting, automobile oil injection lines, wind pipes,
water pipes and air-conditioner pipes
Characteristics
machine tools with tight and solid structure, oil pressure engine, steady function, high finished product rate, slight vibration and low noise
Standard accessories
basic platform, a wrap of hand tools, a set of modules
Special accessories
the length of pipes’ compression can be made to order according to customers’ requirements
main technical parameter
item model | TM40 | TM60 | TM80 |
max pipe OD available | Φ 40x 2.0t | Φ 60x 2.0t | Φ 80x 2.0t |
max working length | 100mm | 130mm | 150mm |
hydraulic oil pressure | 4.5Mpa | 12Mpa | 12Mpa |
working speed | 100mm in 3-4sec | 100mm in 3-4sec | 130mm in 5-6sec |
machine size | 200x55x130cm | 200x60x140cm | 290x70x140cm |
machine weight | 1100kg | 1250kg | 1600kg |
Drawing
service
We can design the machine customizing, if you have special requirement, pls contact us free.
