Home > Products > Marine Equipment > Marine Supplies ,Bar Type Anchor Chain Stopper
Marine Supplies ,Bar Type Anchor Chain Stopper
- Shanghai Qingdao or Dalian
- T/T Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | DTM | |
| Model Number | Bar Type | Part | Other, Chain Stopper |
Product Description
Specifications
1.Material: ZG200-400,ZG230-450
2.Suitable chain cable Dia. from 17mm to132mm
JIS F2033 Marine Roller Bar Type Chain Stopper
Chain stopper is disposed between the connecting tube and anchor windlass, anchor for fixing to prevent the chain from slipping out. The role of chain stopper
Anchor devices abandon the role of the chain
Model: roller bar type chain stopper, cast steel bar chain stopper and cast lever chain stopper
We supply all kinds of chain stopper .Quality management and product strict according to IACS requirement.
Basic information

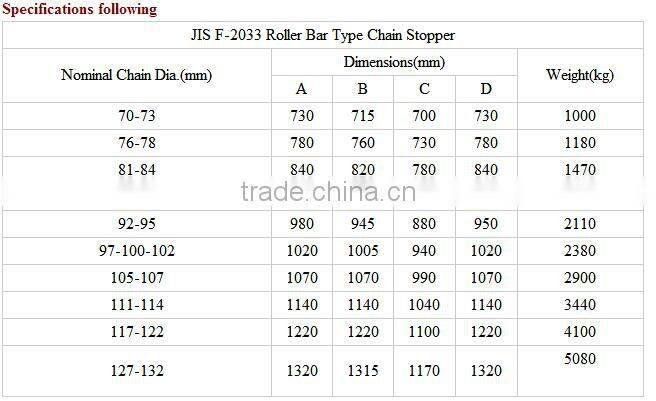

| Product: | JIS F2033 Marine Roller Bar Type Chain Stopper |
| Model no.: | Roller Bar Type |
| Material: | Cast steel |
| Surface: | Polished, galvanized or bitumen painted |
| Type : | Roller bar type |
| Chain cable diameter : | 70-132mm |
| Weight : | 1000kg-5080kg |
| Certificate: | LR, BV, ABS, GL,NK, CCS |
| Application: | Chain Stopper is a device between anchor windlass and hawsepipe, it can fix the anchor chain prevent it roll out. .When the vessel mooring ,chain stopper transport the pull strength of anchor and chain to vessel, can reduce the working load protect the anchor windlass. When sailing it stand the anchor weight and inertial force. |
| Feature: | Withstand 80% of chain cable's breaking load |
Other Types
JIS F2002-1976 cast iron Bar Type Chain Stopper
JIS F2015-1987 Cast Steel Bar Type Chain Stopper
JIS F2023-1976 Cast Steel Bar Type Chain Stopper
JIS F2031 Pawl Type Chain Stopper
JIS F2032 Roller Pawl Type Chain Stopper
JIS F2033 Roller Bar Type Chain Stopper type B
OCIMF Type sOtheringle point mooring Chain Stopper
CB286-84 cast steel lever chain stopper
GB/T 3844-2000 Marine roller lever chain stopper
GB/T 178-96 spiral type chain stopper/ screw type chain stopper
Smith towing bracket for chain stopper
OCIMF Type Towing Bracket
Update products all the time,and your demands can be perfectly met.
Control the quality strictly and price is competitive.
Usually send out within 35 working days after we got your payment.
Warmly welcome OEM or ODM orders.
