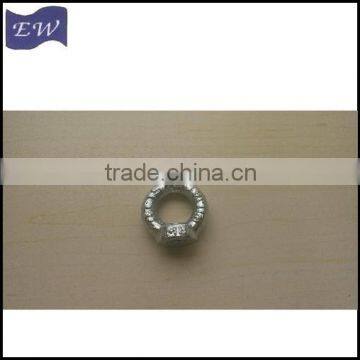

M8 Carbon Steel Bow Nut With Nickel Palted (DIN582)
- Shanghai/Ningbo/Tianjin/Qingdao/Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | EW | |
| Model Number | DIN582 | Material | steel |
Product Description
Specifications
M8 carbon steel bow nut with nickel palted (DIN582)1.Material:stainless steel,etc
2.size :m6-m100
3.finish:black ,zinc ,etc
M8 carbon steel bow nut with nickel palted (DIN582)
Forged Eye bolt, Lifting Eye Bolt, DIN 580 Eye Screw
Surface: Galvanized, zinc plated, chromed plated
Material: Carbon steel C15, C15E, SS, Q235 etc
Type: C15, normal WLL and specification, or as you needed
Packing: Plastic bags, carbon boxes, wood pallets and iron pallets
Thread rolling: Threads under metric system or British system
Packing: Carton +Pallet
Instructions for the use of lifting eye nuts DIN 582
Lifting eye nuts conforming to this standard are primarily intended as permanent attachments on
Equipment such as motors, control cabinets, gear boxes, etc. For their transport. When used as temporary
Attachments on larger objects such as large tools for transportation only, the next largest thread size
Should be used. In case of multi-leg slings please refer to DIN EN 818-4.
With the use of screws a washer should used under the head.
Picture 1 — Side pull must be avoided
Before being used, eye nuts should be checked for correct seating and apparent damage (e. G. Corrosion,
Deformation)
Deformed eye nuts should be discarded.
Subsequent color identification (particular in red) must be avoided, to exclude any confusions with highstrength attachment points.
The safe working load values given in table 1 are based on the following assumptions:
· The eye nut is fully tightened by sufficient thread depth;
· The eye nut must be in the correct plane and the collar must sit evenly on the contact surface;
· The length of the bolt thread is sufficient
· The material of the bolt on which the eye nut will be screwed is of adequate strength
Detailed size:
| SIZE | WLL | WLL | DIMENSIONS | Weight | ||||||
| d | t | t | ||||||||
| d1 | d2 | d3 | b | e | h | k | %kg | |||
| mm | mm | mm | mm | mm | mm | mm | ||||
| M6* | 0.07 | 0.05 | 17 | 28 | 16 | 13 | 6 | 17 | 6 | 5 |
| M8* | 0.14 | 0.095 | 20 | 36 | 20 | 15 | 6 | 18 | 8 | 6 |
| M10* | 0.23 | 0.17 | 25 | 45 | 25 | 18 | 8 | 22 | 10 | 11 |
| M12 | 0.34 | 0.24 | 30 | 54 | 30 | 22 | 10 | 26 | 12 | 18 |
| M14* | 0.49 | 0.34 | 35 | 63 | 35 | 28 | 12 | 30 | 14 | 28.5 |
| M16 | 0.7 | 0.5 | 35 | 63 | 35 | 28 | 12 | 30 | 14 | 28 |
| M20 | 1.2 | 0.83 | 40 | 72 | 40 | 30 | 12 | 35 | 16 | 45 |
| M22* | 1.5 | 1.05 | 45 | 81 | 45 | 35 | 14 | 40 | 18 | 67 |
| M24 | 1.8 | 1.27 | 50 | 90 | 50 | 38 | 16 | 45 | 20 | 87 |
| M27* | 2.5 | 1.65 | 50 | 90 | 50 | 38 | 18 | 45 | 20 | 88 |
| M30 | 3.6 | 2.6 | 65 | 108 | 60 | 45 | 18 | 55 | 24 | 166 |
| M33* | 4.3 | 3.2 | 65 | 108 | 60 | 45 | 22 | 55 | 24 | 172 |
| M36 | 5.1 | 3.7 | 75 | 126 | 70 | 55 | 22 | 65 | 28 | 265 |
| M39* | 6.1 | 4.3 | 75 | 126 | 70 | 55 | 26 | 65 | 28 | 280 |
| M42 | 7 | 5 | 85 | 144 | 80 | 65 | 30 | 75 | 32 | 403 |
| M45* | 8 | 5.5 | 85 | 144 | 80 | 65 | 30 | 75 | 32 | 425 |
| M48 | 8.6 | 6.1 | 100 | 166 | 90 | 70 | 35 | 85 | 38 | 638 |
| M52* | 9.9 | 7.3 | 100 | 166 | 90 | 70 | 35 | 85 | 38 | 660 |
| M56 | 11.5 | 8.3 | 110 | 184 | 100 | 80 | 38 | 95 | 42 | 880 |
| M64 | 16 | 11 | 120 | 206 | 110 | 90 | 42 | 100 | 48 | 1240 |
Photo:
-Packing:
1.packing:small box /bulking packing/roll packing+carton+pallets
Usually,48cartons /pallets
-Shipping
1.by express: DHL,FEDEX,UPS,TNT,ARAMEX,etc
2.by sea
3.by air
1.sample :free sample is ok
2.make your logo label
3.packing as your requirements
4.OEM can be accepted
petitive price and high quality
1.Question: what's you material, OEM is ok ?
Answer:we have carbon steel and stainless steel material , any material can make as your requirements .
OEM is accepted .if large qty there is no need mould fee .
2.Question: free sample is ok ?
Answer:sample for standard is free. sample fee is need for non-standard . but freight you need to pay for it .
of course , you can save the sample fee and freight if you place the order . special sample will send you to test. then after confirmed large prouction will start.
3.Question:How is your packing ?
Answer:usually about inner packing we have bulking packing(polybag packing) ,roll packing ,small box packing ,then put into the carton , last packed into the pallets .
4.Question: How is your quality.
Answer: we can offer you the related material report or quality export as your requirement.
Sample can offer you to test. about the the quality we can promise you the quality after the goods selled six month . if some wrong happens cause the goods quality ,we will offer you the best solution.
Any questions please send us the email or call me . Thanks and have a nice day!
