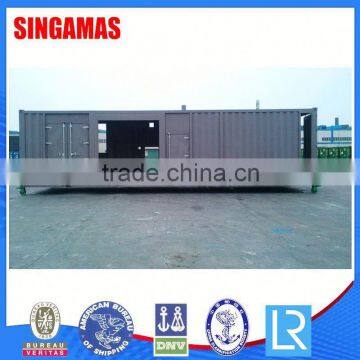

40ft & 20ft Container Diesel Generator Container

40ft & 20ft Container Diesel Generator Container:
none

40ft & 20ft Container Diesel Generator Container

Product Profile

The shipping containers are made of high steel steel and are able to withstand extreme tempreture ranging from -40 °c to 70°c, and all have been certified by major Classification Society(CCS,BV,ABS,GL) completely conforming to International Standard.

Other Product Specifications:

1)20ft/40ft/40ft hq/45ft hq
2) For general purposes

3) 20' Standard Container Dimension:20' x 8' x 8'6"
4) 40' Standard Container Dimension:40' x 8' x 8'6"
5) 40' hq Standard Container Dimension:40' x 8' x 9'6'
6) 45' hq Standard Container Dimension:45' x 8' x 9'6'

Product Details

Dimension and Capacity

1) Dimension

External:  length:   12192 mm   width:   3200 mm    height:  3200 mm

Internal:   length:  11978  mm    width:  2990  mm     height:   2892 mm

2) Weight

Max Gross Weight:  39,350 Kg

Tare Weight:   9,350  Kg

Max Payload:  30,000  Kg

3) Opening

Side Door opening : width :  920 mm  height:   1900 mm

Rear door opening:  width:   3088 mm  height:  2786  mm

Front door opening:  width:   3088 mm  height:  2786  mm

4) Allowable Stacking Weight: 192,000 kg

5) Cubic Capacity: 103.57 cu.m

6)  Special Feature

1. ISO corner casting located in the position of 40’, good for transport and lifting up.

2. Checkered plate in which applied with six devices of Sewage sump tank, Drain hole and Fuel receptacle.

3. Facilities such as Installation plate, Tank mounting bracket, Fire extinguishers fixed frame and Water tank fixed  rack applied on the base structure.

4. Detachable blind window applied on the front end while fixed blind window on the rare end.

5. Two doors in one side while one the other side.

6. Facilities such as sound attenuator-fixing box, alarming apparatus fixed box, Emergency stop installation box and Supply installation box applied on the side panel.

7. Facilities such as Smoke vent joint, Muffler mounting plate, Water-adding mounting plate applied on the roof panel.

8.  Punched metal plate could be applied inside the container and rock wool filled between it and container could be used to heat protection and sound absorption.
