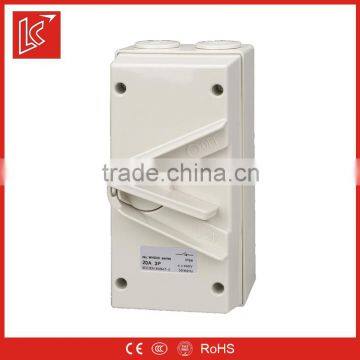

UKF series 1P~4P 20A-63A industrial hv isolator switch, 100a isolation switch

Description:

UKF&UKW isolator is rigidly built to withstand more than just the vagaries of the weather,

it is designed also for frequent switching even on severe load such as switching of motor loads

or other highly inductive load. Suitable to be mounted in outdoor and indoor for diverse environment.

Features:

1, Switching ON&OFF on-Load

2, Padlockable handle with 7mm hole in OFF position

3, Dual 25mm threaded conduit entries on top and bottom

4, IP66 rating prevents from heavy dust and water ingress

Application:

The UKF Series of Weatherprotected Isolating Switches is a robust range of switches suitable
for virtually any external application.
Included in the range are single, double and triple pole switches from 20 to 80 Amps. The base
mounted mechanism provides for easier termination and more wiring room. Switch dimensions
are 165mm x 82mm with an voerall height of 85mm.

Packaging:

1. Standard Export Package or OEM

2. 20PCS/CTN, CTN SIZE: 44.5*19.5*38CM, CTN WEIGHT: 11/9.5KGS

Shipping:

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door,

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving,

3. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.

Yueqing LC Import & Export Co., Ltd.  is one of the largest industrial electric manufacturers in China and is a boundless enterprise, which specially develops, manufactures and sells the world leading level high and low voltage electrics and element, transmit distribution equipment, power equipment, instrument and meter, building electric, Automation, wire and cable, electricity and electric equipment etc.

We possess a giant of distribution and service webs in 120 countries and regions in the world and occupied the first place in China low voltage electrices from 2000 to 2007 continuously for 7 years.
We also have set up over 600 marketing organizations at home and the market occupancy has been raised uninterruptedly.
Our product quality and service have got high reputations from users at home and abroad.The company possesses a full set of imported production equipment perfect measuring method,whole computer information management system.

All of our employees will do our best and develop more and new electric products, uninterruptedly develop product quality and enlarge the markets at home and abroad, strive for the world famous brand and enter the wold 500 stronger taking China Haier, American General Electric as good examples.

Q 1. How about your experience?

A: We have our own professional factory and R&D department & more than 15 years producing experience.

Q 2. What's your advantage ?
A: We have mash melders, injection molding machines and punchers. So we can make by ourselves from the inside parts to outside by ourselves. It greatly increases the efficiency and saves the cost.

Q 3. How's the delivery time ?
A: Usually we have stock for sample order, and it will take about 7-25 days for batch order.

Q 4. Tell me the standard of package?
A: For inner box and master carton are made as per international standards, and we can make special design for you if need. Also if necessary, will be packed in pallet to avoid any damage.

Q 5. Would you accept to use our logo ?
A: We offer OEM/ODM customization services if quantity is suitable.
