Product Details
| Place of Origin | Guangdong, China | Brand Name | NiceUC | |
| Model Number | NC-MG640 | Type | VoIP Gateway |
Product Description
4 ports goip gateway gsm gateway imei change support vos/vps/asterisk 32 fxs port voip gateway
Compitable with Asterisk, Cisco call manager, Free switch, 3CX, Mircrosoft Lync, VOS, etc.
Interface: E1, fxs/fxo, E&M, GSM/CDMA/WCDMA.
Configure, Monitor, Management, Backup, Update: by RS232 console port, Telnet, WEB.
Our service: one year warranty, 7*24 supports for ever.
Advantage:
1. Expandable with modular design (Two modules,one is CPU Board with maxima 4E1, another is User Board with maxima 16 FXOFXS);
2. Convert IP to FXO/FXS, the best equipment for IP Call Center;
3. Support 64 FXO/FXS;
Description:
According to the demand of voice business from the enterprise/operator, NC-MG640 is a media analog gateway which independently R&D by NiceUC Communication. This product locates at the interface between PSTN and IP to achieve the conversion between FXO/FXS and VoIP SIP,meanwhile complete the media stream transformation between the bearer channel of PSTN and IP.
NC-MG640 uses advanced hardware and software technology and carrier-class design to ensure the high reliability of equipment. The system of NC-MG640 uses the mature high-performance CPU and DSP; and uses embedded real-time operating system and efficient algorithm, so it has excellent properties. With modular design of inserting board, NC-MG640 is expandable by your requirement.
Function and Features:
Powerful processing capabilities
    ·Analog Gateway NC-MG640 has powerful capabilities in processing media. By a rigorous full-load test and optimization of software/hardware, it proves that under the conditions of a full-load operating, this model NC-MG320 can be able to comfortably perform voice processing(G.711,G.726,G.729a/b,G.723,G.728,iLBC), echo cancellation, fax trunk and other functions.

Excellent voice communication quality
Based on the powerful processing capabilities, NC-MG640 has excellent quality in voice communication.
    ·Voice Activity Detection (VAD), to effectively save bandwidth resources;
    ·Comfort Noise Generation (CNG), to provide the same experience as PSTN in calls;
    ·Adaptive dynamic buffer technology, to meet the application under bad network;
    ·G.168 128ms echo cancellation technology. This indicator is far higher than the same kind of PBX, eliminating the echo interference caused by long distance call;
    ·DTMF detection / generation technology, to effectively support the business of the fax, callback, second dial.
Plentiful business functions
    ·Modification between calling number and called number;
    ·As a terminal, support the register trunk function to other GK(Gatekeeper) or SIP Server.
    ·As a gateway, support the control from superior GK or SIP Server to complete the trunking calls;
    ·As a IPPBX, support that other terminals register on it.
    ·Support any switch among FXO, FXS, SIP;
    ·Support automatic routing function;
    ·Support high capacity of black and white lists;
    ·Simultaneously support the register of 4 SIP Server;
    ·Support output of CDR;
    ·Fax support T.30, T38 and pass through;
    ·Support reelection function;
    ·Support detection of calling number and display of call ID;
    ·Support generation of dial tone, ringback tone, etc.;
    ·Port supports gain and comfort adjustment of noise;
    ·Multi-router and multi-bureau management, group, cluster and exchange management, intelligent routing distribution and equal traffic sharing;
    ·Support function of dividing groups, for the incoming calls, the subscriber line can be set to line up or take turns to choose;
    ·Flexibly control the incoming and outgoing of lines, the lock of long-distance calls can be controlled by the phone;
    ·Complete call functions,it can provide several kinds of call functions and special call way by customer's request;
    ·The voice processing capacity support voice play with built-in computer operator;
    ·High processing capacity in conference;
    ·Monitor and handle real-time telephone traffic;
    ·Support CTI for controlling and programming;

Simple and convenient management/maintance
    ·In software, NC-MG640 support two ways for configuration and network management: (based on) GUI and Telnet. It will be also very easy for the non-professionals to manage and maintain;
    ·In hardware,NC-MG640 is compact, only 2U height, can be installed in the standard 19 inches rack, also can be separately installed a small machinery room. Power supply is 220V AC. It can be adapted to various conditions in the machinery room;
Protocol that supported by this model:
Item Name  | Details  |
Port  | FXO/FXS/SIP  |
VoIP Protocol  | SIP: RFC3326(Reason header in SIP messages) RFC3372(SIGTRAN and SIP-T) RFC2327(sdp) RFC3398(ISUP-SIP Mapping) RFC3261(sip) RFC5806(Diversion Indication in SIP) RFC2833( DTMF ) RFC3362(t.38) RFC 3261(SIP 2.0) RFC3204(MIME media types for ISUP and QSIG Objects) RFC3578(Mapping of ISUP overlap to SIP)  |
Codec  | G.711 U-Law and A-Law, G.711 Appendix 1, G.723.1 and G.723.1 Annex A, G.729 Annex A and Annex B, G.726,GSM,ARM,ILBC  |
Fax Protocol  | T30, T38 and pass through  |
Network Protocol  | IP,NAT,ICMP,ARP,HTTP,BOOTP,FTP,TFTP,DHCP,PPPOE,SNMP,Diff-Serv  |
Echo Cancellation  | G.168 128ms  |
Physical Features:
Item  | Specification  | ||
Input Voltage  | 110-240V AC  | ||
Full-load Power  | 80 W  | ||
Dimension  | (W×D×H)  | 482mm*286mm*88mm (2U)  | |
Weight  | 3.5 KGS  | ||
Environment  | Temperature  | 0°C~50°C  | |
Relative Humidity  | Less than 80%  | ||
The detailed configuration of this series:
Capacity of Configuration  | ||||
Type/Name of configuration  | NC-MG640-IAD-64S  | NC-MG640-IAD-64O  | ||
FXO/FXS  | 64  | 64  | ||
E1/T1  | 0  | 0  | ||
G.711 VoIP Channel  | 64  | 64 | ||
G.723/G.729 Channel  | 32  | 32  | ||
T30/T.38 Channel  | 32  | 32  | ||
Physical Interface  | ||||
Name of Interface  | Quantity of interface for NC-MG640-IAD-64S  | Quantity of interface for NC-MG640-IAD-64O  | ||
PCM  | 0  | 0  | ||
4 lines RJ45  | 16  | |||
Lan  | 1  | |||
Console  | 1  | |||
Power supply interface  | 1  | |||

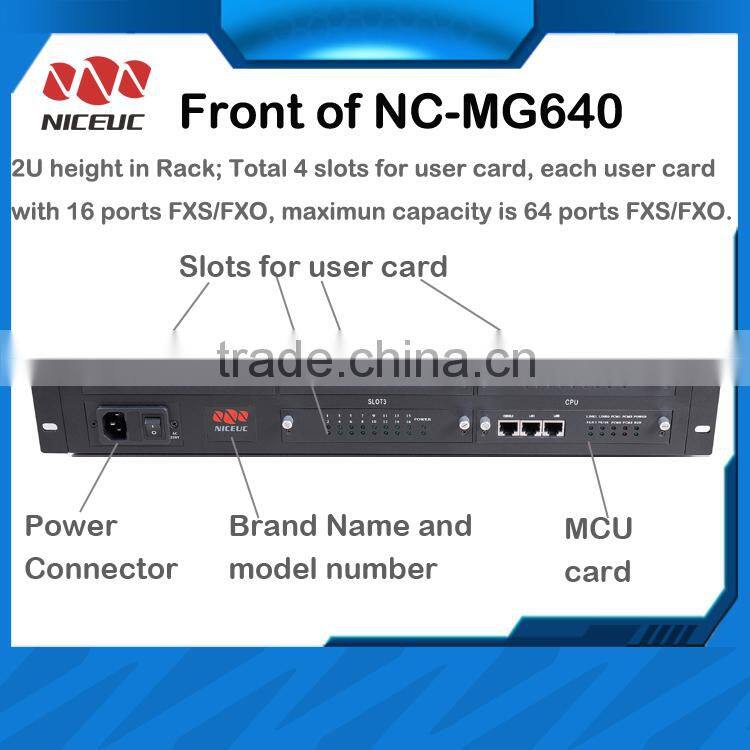

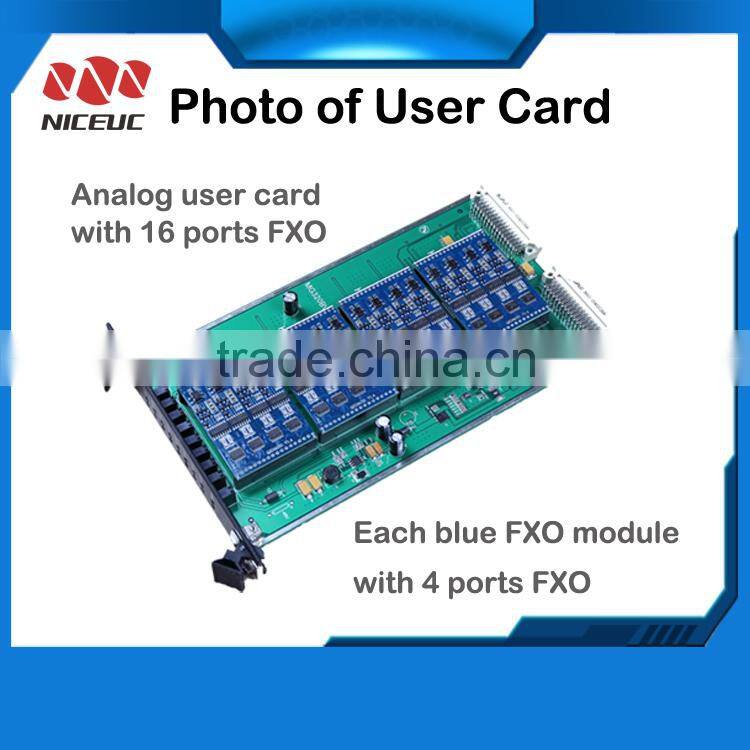

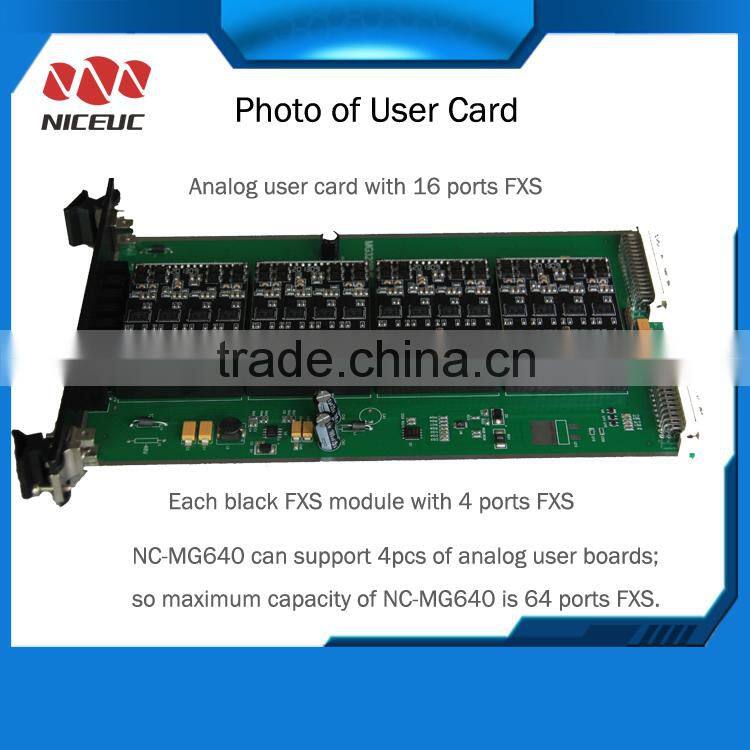

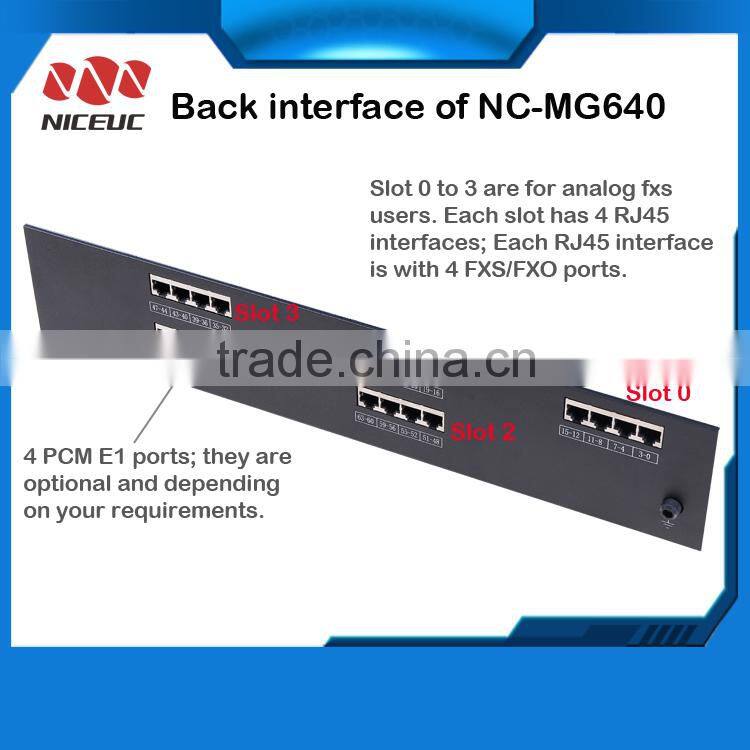

Pictures show more details of product "VoIP FXS Gateway NC-MG640":



Application of product "VoIP FXS Gateway NC-MG640"

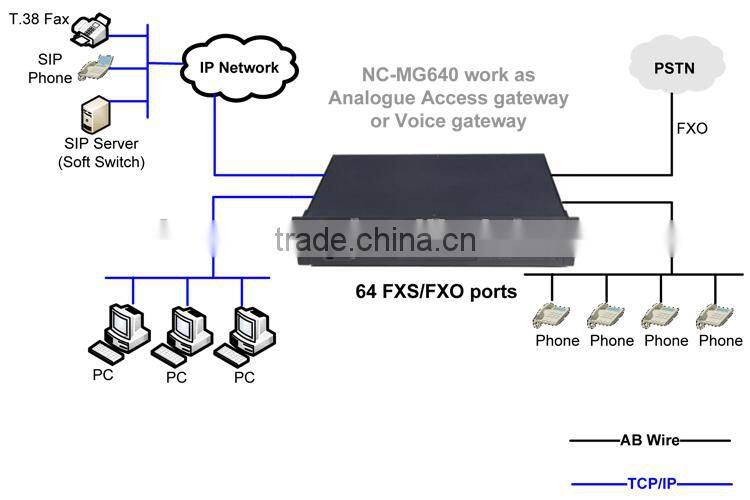

1. Basic usage:

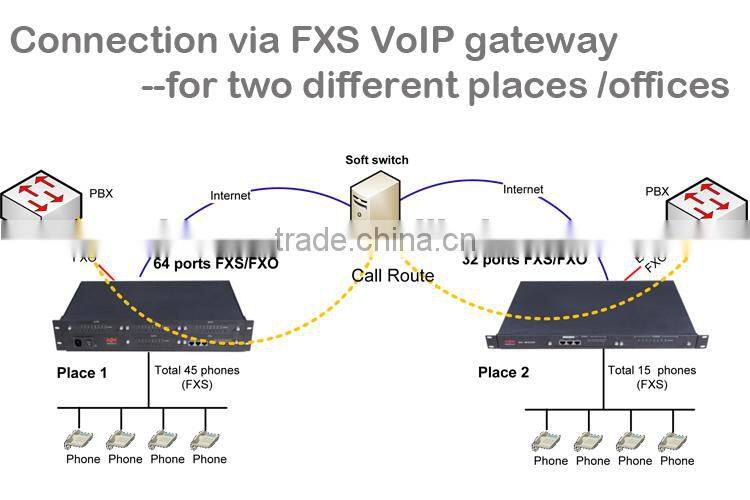

2. Used for connection:

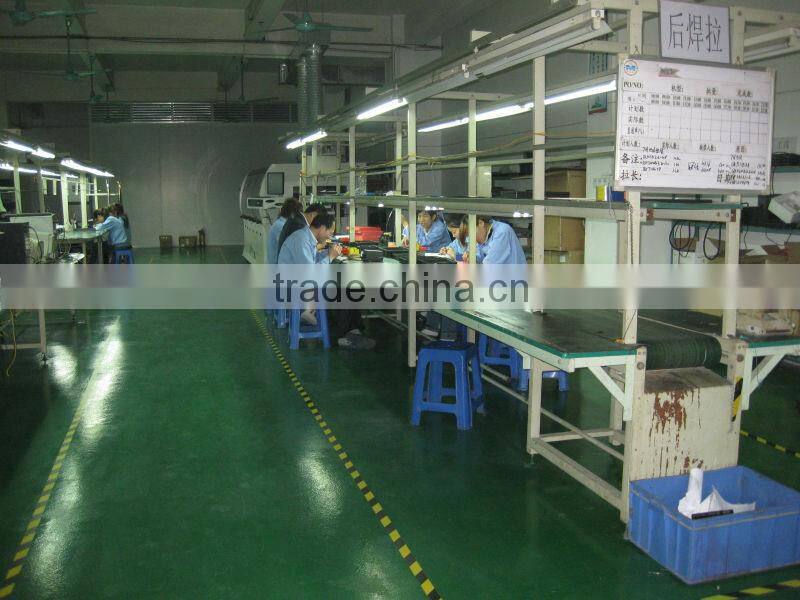

Photos of our factory:
Shenzhen Niceuc Communication Technology CO., LTD in shenzhen of China.
Niceuc Communication CO., LTD in HongKong.
We are a professional manufacturer and developer in VoIP products from 2000 year.
Now, our main products and services are as follows:
·Signaling Converter: convert any signaling between SS7, ISDN PRI, Q.SIG,V5.2, R2;
·VoIP Media Trunk Gateway: transform between SS7, ISDN PRI, V5.2, R2 and SIP, transfer PSTN to IP;
·IP-PBX: support CTI, SIP, FXO, FXS, E1, E&M, PTT, GSM/CDMA/WCDMA, Recording and Conference;
·PBX/PABX System: support E1, FXO, FXS, CTI, Recording and Conference;
·GSM Gateway: convert E1 to GSM, to save telephone expenses;
·Services: provide with special customized service/software/prduct by low cost.
Please feel free to contact us today, thank you.
