Automatic beer glass bottle filling production line
- shanghai
- T/T
You May Like
-
Automatic Beverage Bottle Filling Machine
-
Automatic glass bottle alcohol drinking washing filling capping machine/line
-
Automatic glass bottle washing filling capping machine/line for malt
-
Automatic jar filling machine for suds
-
Automatic glass wine bottle filling production line
-
Automatic aseptic glass bottle washing filling capping machine
Product Details
| Condition | New | Application | Beverage, Chemical, Food, Medical | |
| Packaging Type | Barrel, Bottles, Cans | Packaging Material | Plastic, Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/380V/415V | Power | 3KW | |
| Place of Origin | Jiangsu, China | Brand Name | Wanjin | |
| Model Number | XGF | Dimension(L*W*H) | by capacity | |
| Weight | by capacity | Certification | CE/SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
glass bottle filling production linefillingtype: wine ,Red Wine ,co2 wine
filling capacity:1000-2000

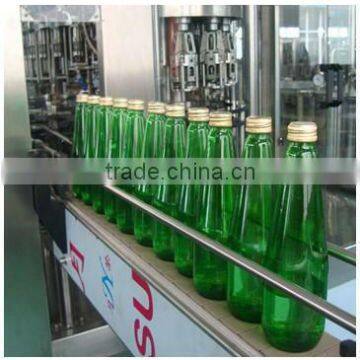

Automatic beer glass bottle filling production line :
Automatic beer glass bottle filling production line is used for the production of various GLASS bottled beverage,milk wine and the carbonated drinks. It integrates washing, filling and capping, which shortens the time material contacts with outside,
Automatic beer glass bottle filling production line improves sanitary condition, production capacity and economic benefit.
The suspension bottle mouth transmission type structure makes it more convenient to exchange bottle type. The main unit adopts advanced PLC technology and important electric components introduce international famous products, such as Mitsubishi, Schneider, Omron and so on.
Main technical specifications:
Model | XGF12-12-4 | XGF18-18-6 | XGF24-24-8 | XGF32-32-10 | XGF40-40-10 | XGF50-50-12 | XGF60-60-15 |
washing, filling heads | 12-12-4 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 | 60-60-15 |
capping heads | |||||||
capacity (BPH) | 2000-4000 | 5000-6000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 |
can Bottle type | φ=50-108 H=170-340 330ml-2000ml | ||||||
pressure of washing bottle(mpa) | 0.2-0.25 | ||||||
Motor power (kw) |
| 2.2kw | 3kw | 4kw | 7.5kw | 9.5kw | 12kw |
Dimension (mm) | 2100*1400*2500 | 2460*1720*2650 | 3100x2100x2650 | 3500x2500x2650 | 4600x1800x2650 | 5200x4500x3400 | 6500x4500x3400 |
(LxWxH) | |||||||
Weight (kg) | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 | 9800 |
