Signaling Gateway With SS7, ISDN PRI, R2, V5.2, Q.SIG (NC-AD300D)

Specifications

Description:

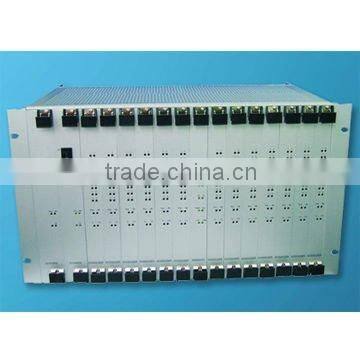

NC-AD300XD is a carrier-grade embedded operating system gateway product which designed by NiceComm to meet the demand of large capacity signaling voice conversion.it be used insert box structure, high performance CPU.and software be based on the real-time embedded OS, powerful processor.The major job for AD300XD is to complete the conversion between signalings, it provides a variety of trunking and signaling interface, and can also support secondary development CTI interface. Anyway,it can be used for a variety of telcomm value-added services such as call center.

Specialty:
·Signaling support: SS7, PRI, Q.SIG, R2, V5.2;
·Interface Connector: E1 maximum 100,10/100M Ethernet×2, RS232 console×2;
·Link: SS7 links×16, PRI×16,V5 master link×1 V5 slave link×1;
·Switching Volume: 4096 x 4096;
·Clocking accuracy: stratum 3 Clock;
·Clocking Source: E1, inner;
·DSP resource: single board(the maximum is 4,can support 256MFC/128 DTMF/ 256 voice /128 mixed audio) ;

Function:
·Convert any signaling between SS7, ISDN PRI, Q.SIG,V5.2, R2;
·Multi router, inter-office management, Intelligent router distribute and telephone traffic sharing;
·Grouping switching management;
·User identifier, can provide black and white name list or connect to the database;
·Powerful calling function to provide customize calling mode;
·Voice management function with voice record and voice play;
·Meeting function;
·Calling number and called number modification;
·Real time telephone traffic monitor and handling;
·Can expand the capacity through multi stack;
·Provide CTI Link API interface for user program control;
