Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Bottles | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220/380/415V | Power | 3.8kw | |
| Place of Origin | Jiangsu, China | Brand Name | Wanjin | |
| Model Number | XGF | Dimension(L*W*H) | 2650*2100*2500 | |
| Weight | 3500kg | Certification | CE/SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

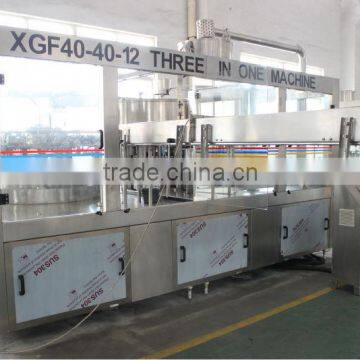

3-IN-1 Small Bottle Drinking Water Filling Production Line
(1) This 3-IN-1 Small Bottle Drinking Water Filling Production Line is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water, wine and so on.
(2) Bottle washing, filling and capping of the automatic water filling plant are achieved in one machine.(3) The contact time is shorten between material and the outside. And improved the health conditions, production capacity and economic benefits.
(4) CGF series Mineral water bottling equipment adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.
(5) The main machine of the 3-IN-1 Small Bottle Drinking Water Filling Production Line adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.
Technical Data Of 3-IN-1 Small Bottle Drinking Water Filling Production Line
Model | CGF 8-8-3 | CGF 14-12-5 | CGF 18-18-6 | CGF 24-24-8 | CGF 32-32-10 | CGF 40-40-12 | CGF 50-50-15 |
Washing No | 8 | 12 | 18 | 24 | 32 | 40 | 50 |
Filling No | 8 | 12 | 18 | 24 | 32 | 40 | 50 |
Capping No | 3 | 5 | 6 | 8 | 10 | 12 | 15 |
Production Capacity(500ml) | 1500-2000 BPH | 4000 BPH | 6000 BPH | 10000 BPH | 12000 BPH | 16000 BPH | 24000 BPH |
Install Capacity(KW) | 3.0 | 3.5 | 4.0 | 4.8 | 7.6 | 8.3 | 9.6 |
Total weight (kg) | 1500 | 2200 | 3500 | 5500 | 8000 | 10000 | 12000 |
Overall size | 1900*1420*2000 | 2200*1600*2300 | 2650*1900*2400 | 2900*2100*2400 | 4100*2400*2400 | 4550*2650*2400 | 5450 |
A) 3-IN-1 Small Bottle Drinking Water Filling Production Line --Washing Part
- All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
- 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
- 304 stainless steel washing pump
B) 3-IN-1 Small Bottle Drinking Water Filling Production Line --Filling Part
- 304 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304 stainless steel filling pump
C) 3-IN-1 Small Bottle Drinking Water Filling Production Line --Capping Part
- Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304stainless steel construction
- No bottle no capping,
- Automatic stop when lack of bottle
