XGF automatic mineral drinking water filling machine
- shanghai port for mineral drinking water filling machines
- T/T
You May Like
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Bottles | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220/380/415V | Power | 3kw | |
| Place of Origin | Jiangsu, China | Brand Name | Wanjin mineral drinking water filling machines | |
| Model Number | XGF | Dimension(L*W*H) | As Required | |
| Weight | 3000kgs | Certification | CE/SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

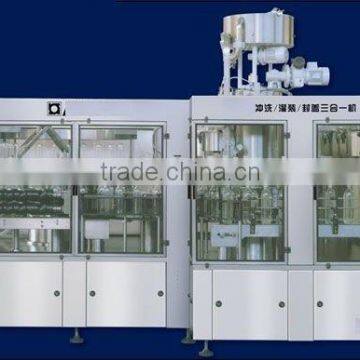

XGF automatic mineral drinking water filling machine
Mineral water filling machine
Drinking water filling machine
Usage
The line is mainly used for washing, filling and capping PET bottle which can fill non-carbonated drinks. Such as mineral water, pure water, wine and so on. Bottle washing, filling and capping are achieved in one machine. The contact time is shorten between material and the outside. And improved the health condtions, production capacity and economic benefits.
Character:
This water filling machine adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, aster and more laborsaving. the main machine adopts advanced PLC control technology. The key electric elements adopt mitsubishiomron Siemens, etc international famous products.
2,1. It is the fully automatic barreled water producing equipment, which is combined with machine, electronic and pneumatic components.
2. It integrates bottle washing, filling and capping in one unit.
3. This filling line is automatic.
Form:
Mode | XGF14-12-5 | XGF18-18-6 | XGF24-24-8 | XGF32-32-10 | XGF40-40-10 | XGF50-50-12 | XGF60-60-15 |
wahing/filling Heads | 14-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 | 60-60-15 |
capping heads | |||||||
Capacity(BPH) | 2000-4000 | 5000-6000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 |
bottle type | φ=50-108 H=170-340 330ml-2000ml | ||||||
Rinsing with water pressure(mpa) | 0.2-0.25 | ||||||
power |
| 2.2kw | 3kw | 4kw | 7.5kw | 9.5kw | 12kw |
Dimension(mm) | 2100*1400 | 2460*1720 | 3100x2100 | 3500x2500 | 4600x1800 | 5200x4500 | 6500x4500 |
(LxWxH) | |||||||
Weight(kg) | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 | |
mineral drinking water filling machines
