3 in 1 mineral water bottling filling machine
- shanghai port
- T/T
You May Like
Product Details
| Condition | New | Application | Commodity | |
| Packaging Type | Bottles | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220/380/415V | Power | 3kw | |
| Place of Origin | Jiangsu, China | Brand Name | Wanjin | |
| Model Number | XGF24-24-8 | Dimension(L*W*H) | As Required | |
| Weight | 3000kgs | Certification | CE/SGS, CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

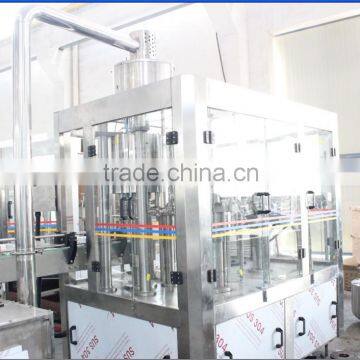

3in1 mineral water bottling filling machine(XGF 24-24-8 )
XGF 24-24-8 3in1 unit mineral water bottling filling machine bottle conveyor structure, changing bottle more convenient, efficient effort, the host adopts advanced PLC programmable automatic control technology, the key electrical components are used in Japan Mitsubishi, Schneider, Omron and other international famous brands.
Model: CGF24-24-8
Capacity: 8000-10000BPH (500ml PET bottle)
Washing head: 24PCS Filling head: 24PCS Sealing head: 8PCS
Total power: 4.5KW
Transducer: Mitsubishi.(Japan)
Main electrical appliance: Siemens , SuZhou company
Touch screen: TOUCHWIN.(Canada)
Proximity switch: AUTONICS.(Korea)
Optical switch: AUTONICS.(Korea)
Speed reduce: TianYu.(Hangzhou, China)
Pneumatic component: AIRTAC.(Taiwan)
Dimension: 3150×2250×2700 (L*W*H)
Weight: 4500Kg
Mode | XGF14-12-5 | XGF18-18-6 | XGF24-24-8 | XGF32-32-10 | XGF40-40-10 | XGF50-50-12 | XGF60-60-15 |
wahing/filling Heads | 14-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 | 60-60-15 |
capping heads | |||||||
Capacity(BPH) | 2000-4000 | 5000-6000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 |
bottle type | φ=50-108 H=170-340 330ml-2000ml | ||||||
Rinsing with water pressure(mpa) | 0.2-0.25 | ||||||
power |
| 2.2kw | 3kw | 4kw | 7.5kw | 9.5kw | 12kw |
Dimension(mm) | 2100*1400 | 2460*1720 | 3100x2100 | 3500x2500 | 4600x1800 | 5200x4500 | 6500x4500 |
(LxWxH) | |||||||
Weight(kg) | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 | |
