JD High Speed Full Automatic pet bottle blowing machine
USD $20,000 - $45,000
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- Shanghia port
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Wanjin | |
| Model Number | JD |
Product Description

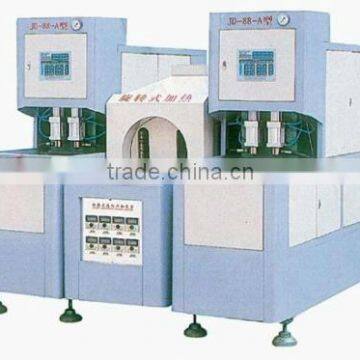

JD High Speed Full Automatic pet bottle blowing machinery
blow moulding machine
1.blow moulding machine direct pressure pneumatic hydraulic locking mould system makes a steady mould locking;
2.Imported high pressure blowing valve and Mitsubishi programmable controller are flexible and precise.
3. Open and close mold stroke is long enough to ensure a strong interchangeability and simple assembly and disassembly.
4. The use of silencer in high/low pressure exhaust greatly lower the noise.
5. Major electric and pneumatic components are from the reliable famous brands in Europe, America and Japan.
6. blow moulding machine can be used together with infrared heater to make 0.3-2L bottles for mineral water and tea beverage, 0.1-0.7L bottle for cosmetics, 0.3-5L bottles for oil and wide mouth bottles.
Type | Item | JD1000-FA1 | JD1000-FA2 | JD1000-FA3 | JD1000FA1 | JD1000FA4 | JD1000FA5 |
Molding | comtainer volume | 800ml | 2000ml | 3000ml | 600ml | 6000ml | 1500ml |
electrical system | three phase380v/50-60Hz | ||||||
power | 18kw | 40kw | 40kw | 50kw | 35kw | 60kw | |
use power | 10kw | 20kw | 20kw | 30kw | 15kw | 30kw | |
cavities | 1 | 2 | 2 | 4 | 1 | 2 | |
clampingstroke | 140mm | 140mm | 150mm | 120mm | 200mm | 150mm | |
mold thickness | 160mm | 200mm | 200mm | 160mm | 260mm | 200mm | |
stretching stroke | 410mm | 410mm | 450mm | 370mm | 450mm | 450mm | |
theoretical output | 1500bph(*) | 2500bph(*) | 2500bph(*) | 1800bph(*) | 600bph(*) | 1500bph(*) | |
container | comtainer diameter | 20-90mm | 20-105mm | 20-115mm | 20-80mm | 100-180mm | 20-110mm |
comtainer height | 50-350mm | 50-350mm | 50-400mm | 50-330mm | 50-400mm | 50-400mm | |
neck range size | 10-32mm | 10-32mm | 10-38mm | 10-32mm | 28-150mm | 10-38mm | |
air system | working pressure | 8bar | 8bar | 8bar | 8bar | 8bar | 8bar |
air consuming | 1.0 | 1.2 | 1.2 | 2.0 | 1.2 | 1.2 | |
blow pressure | 30bar | 30bar | 30bar | 30bar | 30bar | 30bar | |
air consuming | 1.2 | 1.6 | 1.6 | 3.0 | 1.2 | 2.0 | |
cooling water | operating pressure | 5bar | 5bar | 5bar | 5bar | 5bar | 5bar |
temperature | 5-10°C | 5-10°C | 5-10°C | 5-10°C | 5-10°C | 5-10°C | |
consuming | 20-30L/min | 20-30L/min | 20-30L/min | 20-30L/min | 20-30L/min | 20-30L/min | |
cachiner | size(LXWXH) | 1.4*2.0*1.8 | 2.6*2.0*1.9 | 2.3*2.2*1.9 | 3.8*2.2*1.9 | 2.8*2.2*1.9 | 2.6*2.0*1.9 |
weight | 1500kg | 2000kg | 2300kg | 3500kg | 2000kg | 2500kg | |
blow moulding machine blow moulding machine blow moulding machine blow moulding machine blow moulding machine
blow moulding machine blow moulding machine blow moulding machine blow moulding machine blow moulding machine
blow moulding machine blow moulding machine blow moulding machine blow moulding machine blow moulding machine
blow moulding machine blow moulding machine blow moulding machine blow moulding machine blow moulding machine
