Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | YL | Model Number | J75G | |
| Voltage | 380V | Power(W) | 22KW | |
| Dimension(L*W*H) | 2700*1800*3100 | Weight | 18500kg | |
| Certification | ISO | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

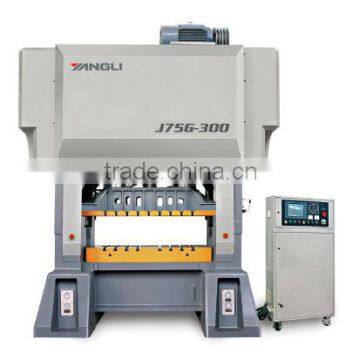

J75G series straight side two point high speed &high accuracy press
Separated taut bolts structure, the whole body has high intensity and rigidity.
Imported rolling guide rail.
Adopts dynamic balance device to increase dynamic precision of bottom dead point.
Combined pneumatic friction clutch and brake.
Duplex valves imported.
Electric compelling oil lubrication system.
Control by PLC with international brand.
Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand
Equipped with hydraulic overload protecting device.
Electric shut height adjustment with digital display.
Electronic cam device with intelligent top dead center stop function and several safety function.
Optional equipped with multi level die sets.
Equipped optional coiler, leveler and feeding device to realize auto produce of the pres.
J75G-80 | J75G-125 | J75G-200 | J75G-300 | ||
Nominal Force | KN | 800 | 1250 | 2000 | 3000 |
Nominal Stoke | mm | 3 | 3 | 3 | 3 |
Slide Stroke | mm | 30 | 30 | 30 | 30 |
SPM | min-1 | 200-550 | 200-500 | 150-450 | 150-400 |
Max. Die Height | mm | 380 | 400 | 420 | 450 |
Die Height Adjustment | mm | 50 | 50 | 60 | 60 |
Bolster (FB×LR) | mm | 750×1040 | 850×1200 | 950×1700 | 1000×2000 |
Bolster Thickness | mm | 150 | 160 | 200 | 200 |
Bolster Opening (FB×LR) | mm | 150×850 | 200×1000 | 250×1350 | 300×1600 |
Slide Area (FB×LR) | mm | 550 | 600 | 700 | 750 |
1040 | 1200 | 1700 | 2000 | ||
Main Motor Power | kW | 22 | 30 | 45 | 55 |
Adjusting Motor Power | kW | 0.75 | 1.1 | 1.5 | 2.2 |
Outline Size (FB×LR×H) | mm | 2700×1800×3100 | 2800×1900×3200 | 3400×2300×3500 | 2500×3600×3900 |
Feed Level | mm | 170±15 | 180±15 | 190±15 | 200±15 |
Net Weight | kg | 18500 | 22000 | 35000 | 60000 |
