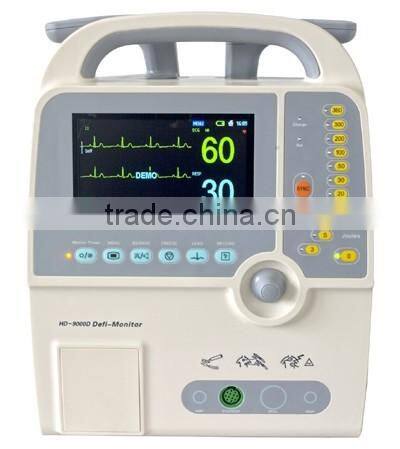

HD-9000D hospital medical monophasic external difibrillator monitor(ECG/ RESP)

HD-9000D hospital medical monophasic external difibrillator monitor(ECG/ RESP)

DEFIBRILLATOR (Monophasic)

Technical specifications

1) Defibrillator type:         Manual, Synchronized, Asynchronized,

2) Energy accuracy:                               ∠+1%

3) Energy selection:   0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (nominal at a resistance of 50)

4) Charging time:                                   Maximum 10 seconds to 360 Joules

5) Standard Adult/Pediatric Paddles:    Reusable external adult paddles (pediatric paddles integrated)

Power requirements

(a) AC Power supply :                       100V~240V, 50Hz/60 Hz

(b) Vehicle Voltage (Option) :           DC 12V

Internal Battery Backup

(1) Battery type :                Rechargeable lead-acid battery (12V 2.0Ah X2)

(2) Charging time:              Time-Minimum of 4 hours for full charging

(3) Battery charging :         During AC Power Supply operation of the device.

(4) Charging /Low Battery Indication :     Red LED

(5) Battery Capacity:          100% of the battery will provide 120-min monitoring; and 30 discharges at 360 joules.

Display

-LCD Dimensions :      7-inch

-Type :                         High resolution true-color graphic

-Resolution:                480*234

ECG

ECG lead: I, II, III, AVR, AVL, AVF, V1~V6
S-T segment analysis: -2.0~2.0mv
Arrhythmia analysis: Yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation

Respiration

Measurement method: Thoracic impedance

Standard parameter & configuration

ECG/ RESP/DEFIBRILLATOR

Optional parameter

Recorder, Li-ion battery (11.1V 4Ah X2)

Physical characteristics:

Main unit: Portable

Dimensions: L320xW205xH410

Weight: 9.5kg
