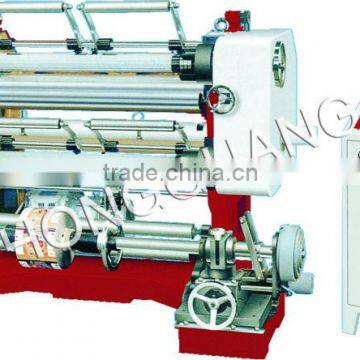

LFQ-700 Vertical Automatic Slitting Rewinding Machine

LFQ Vertical Automatic Slitting Rewinding Machine

Performance and characteristic:

 1st, the this aircraft is the vertical minute strip machine.

 2ed,Independent always controls the screen, the operation is more nimble conveniently.

 3th,Puts the volume to correct an error automatically, the light electric eye is suitable for the track transparent material edge and the color .

 4th,Puts the volume tensity to use the magnetic powder brake control.

 5th, receives the volume to use the magnetic powder clutch control .

 6th,Side, is equipped with the material wind to deliver or the volume takes the installment (time ordering chooses).

 7th,Walks material length automatic idea Mi.

 8th,Receives the press roll to cause the volume material to be smoother.

 9th,A pair of gas zhang receives the reel.

Main technical parameter:

Model                                                LFQ-700A            LFQ-1100A            LFQ-1300A
Max.width of separating and cutting roll material

                                                             700mm               1100mm               1300mm
Max.diameter of separating and cutting roll material

                                                            600mm                  600mm               600mm

width of roll material cutting

                                                         30to600mm        30to1000mm      30to1200mm

separating and cutting  speed

                                                           5to160m/min      5to160m/min  5to160m/min
Deviation rectifying error

                                                                   0.5mm           0.5mm            0.5mm
Total power                                            2.7Kw               3.5Kw                  3.5Kw

machine weight                    1200kg              1500 kg                 1800 kg

outline diameter

                             2000*1110*1400mm 2300*1110*1400mm 2600*1110*1400mm
