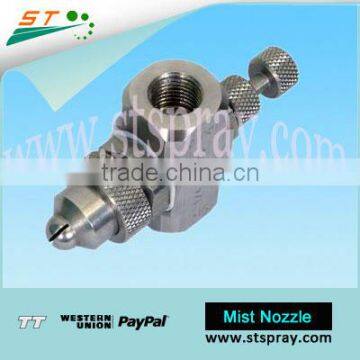

SS Siphon Air Atomizing Nozzle

Specifications

We are a China spray Nozzles supplier, who has strong desire to provide siphon air atomizing nozzles and atomizing spray sozzles to satisfy customers.

How to install the siphon type air atomizing nozzles?

Basic Information:
Siphon Type
Thread size: 1/8; 1/4; 1/2
Material: SS; brass
Spray Pattern: Flat fan spray

Design Feature:

1. Siphon or Gravity Type Air atomizing nozzle
Air pressure is a must, but the liquid pressure is not demanded.

2. When using a siphon or gravity-fed liquid system, the liquid is supplied by either a liquid siphon or a gravity-feed.

3. For Siphon or Gravity type Air atomozing nozzle, there are two spray pattern: Flat Fan spray pattern and Round Spray pattern.

Flat Spray:

Round Spray

4.Inner structural design makes liquid and air mix fine, then sprays fine. Normally, we could increase the air pressure or reduce the liquid pressure, so that we could make the air atomizing nozzles spray more fine droplets( about 30micron).

5.Keeping liquid pressure and air pressure unchanged, as Adjustable air atomizing nozzle could adjust liquid flow rate, then it also could spray according to your requirement.

6. Every spraying device consists of air cap and liquid cap.So if you want to use the suitable nozzle, then you have to choose the right air cap and liquid cap.

7.There are two inlet in the nozzle body.: liquid inlet and air inlet. We will mark " LIQUID" and "AIR" OR "L" and " A" on the nozzle. "LIQUID" AND "L" stands for liquid inlet, "AIR" and "A" stands for air inlet.

8.Air atomizing nozzle could spray very fine. it also could humidify environmental air very well. It is a ideal choose to use it in places need some certain humidify.

9.Air atomizing nozzle could spray a distance of 3 meter. Compared with high pressure fog nozzles, this kind of nozzle is easy to install, have a long live life, cheaper pipe lines, and so on. It is widely used in High-temperature Wax factory, cementplant, injection factory, Ceramics Factory, metallurgical factory and other places t o humidify, cool, dust removal, disinfection and so on.

These siphon type air atomizing nozzles to be used for:
Coating • Cooling • Humidification • Odor Control • Chemical Processing

Following is the detailed spraying pics of air atomizing nozzles we have tested for your reference:
