Plastic Cable Carier for Manipulator
- tianjin%shanghai&qingdao
- T/T Credit Card
You May Like
Product Details
| Material | Pa66, GFPA | Brand | caerd | |
| Model | plastic |
Product Description
Specifications
plastic cable carier for manipulator1.Have a long working life
2.Structure:Combined Chain
3.High quality
4.low price

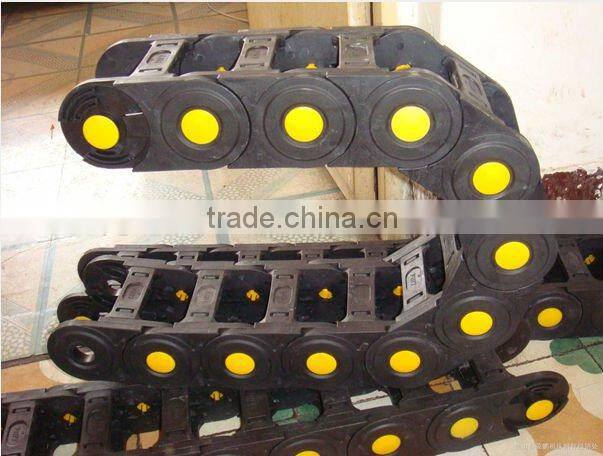

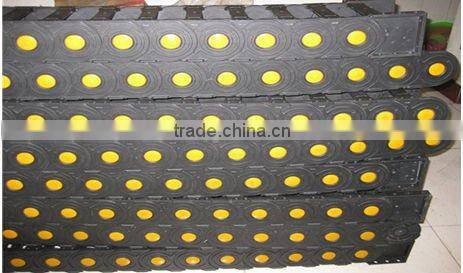

plastic cable carier for manipulator
The use and characteristics of towline
--- Suitable for use in reciprocating motion of the occasion, can the built-in cable, tubing, pipe, water pipes, etc. play a traction and protection.
--- Ministry of towline to open each section for easy installation and maintenance. Movement, low noise, wear-resistant, high-speed movement.
--- Towline has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, windows and doors machines, injection molding machines, robots, materials handling equipment, automated warehouses.
| Model | inside height*inside width | bending radius(mm) |
| TEZ25 | 25*25 | 55;75;100;125;150 |
| 25*38 | ||
| 25*50 | ||
| 25*57 | ||
| 25*77 | ||
| 25*103 | ||
| TEZ35 | 35*50 | 75;100;125;150;175;200;250 |
| 35*75 | ||
| 35*100 | ||
| 35*125 | ||
| 35*150 | ||
| 35*175 | ||
| TEZ45 | 45*50 | 75;100;125;150;175;200;250 |
| 45*75 | ||
| 45*100 | ||
| 45*125 | ||
| 45*150 | ||
| 45*175 | ||
| TEZ56 | 56*100 | 150;200;250;300;350;400;500 |
| 56*125 | ||
| 56*150 | ||
| 56*175 | ||
| 56*200 | ||
| 56*250 | ||
| TEZ65 | 65*100 | 150;200;250;300;350;400;500 |
| 65*125 | ||
| 65*150 | ||
| 65*175 | ||
| 65*200 | ||
| 65*250 | ||
| TEZ80 | 80*100 | 200;250;300;350;400;500 |
| 80*125 | ||
| 80*150 | ||
| 80*175 | ||
| 80*200 | ||
| 80*250 | ||
| 80*300 | ||
dear friend, thanks for your attention on our drag chain.
if you have any questions , pls leave me the message on the end of this page .
or you can chat with me directly ,because i will be mostly on line .
. nice to meet you !
best regards
tong han
