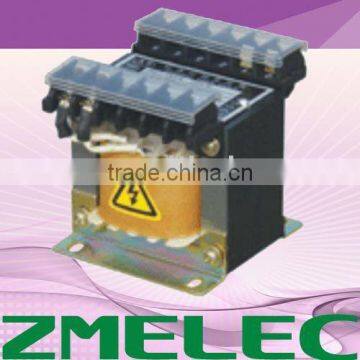

JBK Transformer
USD $2 - $10
/ Piece
300 Pieces(Min.Order)
- 100 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T Credit Card
You May Like
-
Toroidal transformer/toroidal transformer 12v 300va
-
isolation transformer 240v/isolation transformer 230v/isolation transformer 220v
-
isolation transformer/isolation transformer 2000va
-
isolation transformer 110v/isolation transformer 11kv
-
isolation transformer 400v 380v to 220v 1000v
Quality Choice
-
isolation transformer 100kva
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ZMELEC or OEM | |
| Model Number | JBK-40VA | Usage | Power | |
| Phase | Single | Coil Structure | Other, EI | |
| Coil Number | Other, Isolation |
Product Description
Specifications
BK Control transformerFull load Temperature Rise no more 85 degree
Warranty: 3 years
10 years experience.
CE Soncap appro
Application:
JBK Series machine tool control transformer suitable for AC 50/60Hz,Output rated voltage no more 220V input rated voltage no more 660V circuit.,As various types of machine tools, machinery and equipment, the control of the general electric power supply, local lighting, work lighting, signal power and light power.
Structure Character:
This series transformer is the other control transformer replacement products, using imported materials and advanced technology of manufacturing, with reliable operation, low power consumption, small size, connection security, broadly applicable and so on.
Model Means:
JBKX-Z
JB: Machine Tool Transformer
K: Control
X: Design serial number(1,2,3,4)
Z: Rated Capacity
Working Enviconment
1.Ambient air temperature: -5°C~+40°C, the highest monthly mean temperature should not exceed +30°C;
2.Altitude for installing place should not exceed 1000m;
3.When the ambient air temperature is +40°C, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is + 25°C, and condensation on the product surface caused bytemperature change should be taken into consideration.
2.Altitude for installing place should not exceed 1000m;
3.When the ambient air temperature is +40°C, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is + 25°C, and condensation on the product surface caused bytemperature change should be taken into consideration.
JBK3 Outline and Install dimension
Type | Outline dimension(mm) | Installation dimension(mm) | Installation hole(mm) K × J | |||
Bmax | Dmax | Emax | A | C | ||
JBK3-40,63 | 82 | 76 | 92 | 56±0.4 | 47±2 | 5×9 |
JBK3-100 | 86 | 90 | 98 | 64±0.4 | 66±2 | 5×9 |
JBK3-160 | 98 | 96 | 112 | 84±0.4 | 71±2 | 6×9 |
JBK3-250 | 98 | 110 | 112 | 84±0.4 | 85±2 | 6×9 |
JBK3-400 | 122 | 112 | 130 | 90±0.4 | 90±2 | 8×14 |
JBK3-630 | 152 | 110 | 150 | 122±0.5 | 85±2 | 8×14 |
JBK3-1000 | 200 | 165 | 150 | 158±2 | 145±2 | 7×14 |
JBK3-1600 | 225 | 185 | 155 | 185±2 | 155±2 | 7×14 |
JBK3-2000 | 265 | 210 | 175 | 210±2 | 175±2 | 7×14 |
JBK3-2500 | 265 | 210 | 175 | 210±2 | 175±2 | 7×14 |
