Home > Products > PSA Oxygen Generator > Industrial Oxygen Generator for Ozone Generator
Industrial Oxygen Generator for Ozone Generator
- Shanghai Port
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | ZHONGRUI | Model Number | ZRO2 | |
| Usage | Oxygen | Production Rate | 1-1000Nm3/h 25~97±1%(customized) | |
| Voltage | 220V single phase 50HZ(customized) | Power(W) | 1KW (subject to actual power) | |
| Weight | 800kg (subject to actual weight) | Dimension(L*W*H) | 1000*1200*2000(subject to actual size) | |
| Certification | CE/ISO9001/SGS | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

1. Product Name: Oxygen Generator
The Whole Oxygen Generation System Includes :
Air Compressor
Air Receiver Tank
Air Dryer & Precision Filters
Oxygen Generator (Includes control system, adsorption towers, buffer tanks, etc)
Oxygen Receiver Tank
Oxygen Booster/Compressor (Optional Parts)
Cylinder Manifold System (Optional Parts)
Oxygen Cylinders (Optional Parts)
2. Main Technical Parameters :
Oxygen Capacity/Flow rate: 1-1000Nm3/h (CUSTOMIZED)
Oxygen Purity: 25%-97±1% (CUSTOMIZED)
Oxygen pressure: 0.1-0.6Mpa (adjustable) (CUSTOMIZED)
3. Principle:
The principle of Pressure Swing Adsorption (PSA) oxygen generation is diffusion and adsorption of gases into zeolite molecular sieve (ZMS). Comparing with oxygen, nitrogen is preferentially adsorbed by ZMS while at high pressure. ZMS releases adsorbed nitrogen at low pressure, which is called regeneration. The oil-free and dust-free compressed air enters one of the two adsorption towers filled with ZMS. Nitrogen is adsorbed ZMS micro pores and then retained and leaves oxygen as product gas. When ZMS in one tower is saturated with nitrogen, the adsorption tower is depressurized and ZMS is regenerated for next cycle. While one tower finishes the cycle, the other adsorption tower starts to work in stead, thus to create continuous flow of oxygen.
4. Application:
Our PSA oxygen generation equipments have been widely applied in petrochemical industry, electric furnaces steelmaking, glass production, paper making, ozone making, aquaculture, aerospace engineering, pharmacy industry. They work so stable and reliable that gain widespread popularity.
5. Excellent features:
(1) Advanced process flow directly reduces compressed air consumption.
(2) World famous molecular sieve ensures maximum energy-saving.
(3) Advanced load adaptation technology further saves energy.
(4) The most reliable air cleaning process ensures adsorbing efficiency and lifetime of molecular sieve.
(5) National patent valve guarantees stable equipment operation.
(6) Air tank ensures stable system air consumption.
(7) Oxygen buffer tank ensures stable system gas supply.
(8) National patent compaction technology ensures long life of ZMS.
(9) Long-distance supervision and control.
(10) Professional technologies ensure reliable gas supply.
6. Family Portrait:
7. Certificates:
8. Factory Real Photos:
9. Exhibition Photos:

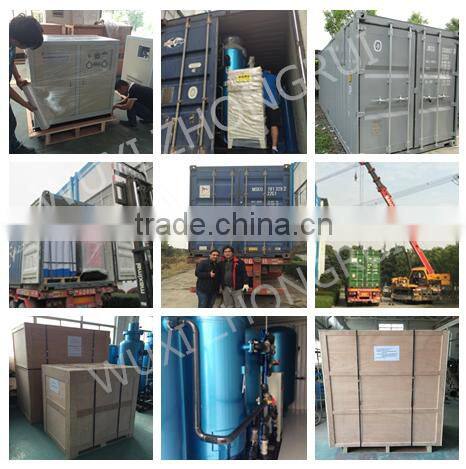

10. Packaging& Shipping
11. Customers' Sites Photos:
12. FAQ:
Please kindly provide answers against below questions when sending us an inquiry! Thanks a lot~
| Technical Parameters | Your Requirements |
| O2 Capacity | ______ Nm³/hr |
| O2 Purity | ______% |
| O2 Outlet Pressure | ____ Mpa or ___ Bar |
| Voltage | ___V ___Phase___HZ |
We can do more!
