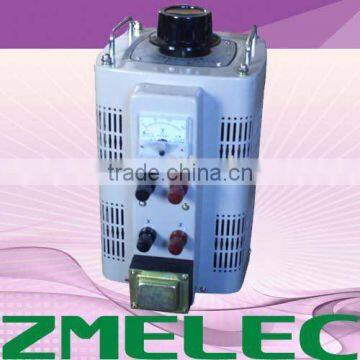

TDGC2 Contact Regulator(TDGC2-10kVA)
US$ 100 - 150
/ Piece
1 Piece(Min. Order)
- Ningbo or Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ZMELEC or OEM | |
| Model Number | TDGC2-10kVA | Usage | Other, TDGC2 | |
| Phase | Single Phase | Current Type | AC |
Product Description
Specifications
TDGC2/TDGC2J Contact RegulatorInput:220V
Output Adjustable:0-250V or 0-300V
CE and Soncap approed
TDGC2,TSGC2 Series of Contacts Regulator
Feautre:
TDGC2,TSGC2 is series energy-saving voltage regulator are made of imported silicon steel,it can successively adjust the output voltage(single-phase 0~250V,three-phase(0~430V),with the features of no waveform distortion,small volume,light weight,high efficiency,convenient use,reliable performance and so on
Main Technical Data:
Phase no.: Single-phase, three-Phase
Input voltage: Single-phase 220V, three-phase 380V
Output voltage : Single-phase 0~250V, three- phase 0~430V
Frequency: 50Hz
Output voltage : Single-phase 0~250V, three- phase 0~430V
Frequency: 50Hz
Model means
TDGC2,TSGC2
T: Regulator
D: Single phase
S: Three phase
D: dry self-cooled
C: Contact
2: Economic design serial number. according to china standard since 1982 after unified national design
Application:
This kind regulator can be applied in industry,scientific experiment,public facilities and domestic appliances to achieve the goal of voltage regulating,temperature controlling,light regulating,power controlling and so on.
Detail Specification:
Model | Rating Power (kVA) | Phase No. | Frequency (Hz) | Input volt. (V) | Output volt (V) | Output current(A) |
TDGC2-0.2 | 0.2 | 1 | 50 | 220 | 0~250 | 0.8 |
TDGC2-0.5 | 0.5 | 1 | 50 | 220 | 0~250 | 2 |
TDGC2-1 | 1 | 1 | 50 | 220 | 0~250 | 4 |
TDGC2-2 | 2 | 1 | 50 | 220 | 0~250 | 8 |
TDGC2-3 | 3 | 1 | 50 | 220 | 0~250 | 12 |
TDGC2-5 | 5 | 1 | 50 | 220 | 0~250 | 20 |
TDGC2-10 | 10 | 1 | 50 | 220 | 0~250 | 40 |
TDGC2-15 | 15 | 1 | 50 | 220 | 0~250 | 60 |
TSGC2-3 | 3 | 3 | 50 | 380 | 0~430 | 4 |
TSGC2-6 | 6 | 3 | 50 | 380 | 0~430 | 8 |
TSGC2-9 | 9 | 3 | 50 | 380 | 0~430 | 12 |
TSGC2-15 | 15 | 3 | 50 | 380 | 0~430 | 20 |
TSGC2-30 | 30 | 3 | 50 | 380 | 0~430 | 40 |
Note: Regulator insulation grade is B grade, carbon brush contact point restrict no more 90 degree.(use semiconductor thermometer method measure)
