Hot Sale Corrosion Resistant With Remote Transmitter Chemical Plant PTFE Magnetic Level Indicator

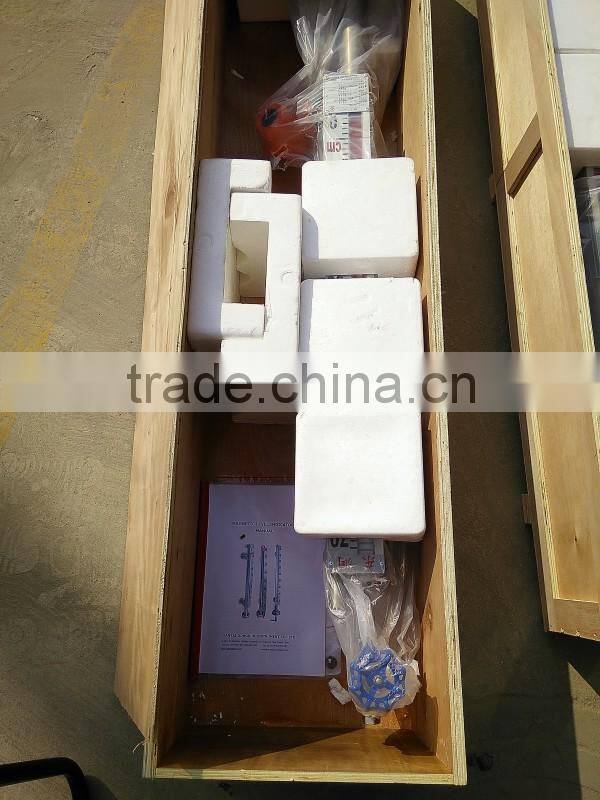

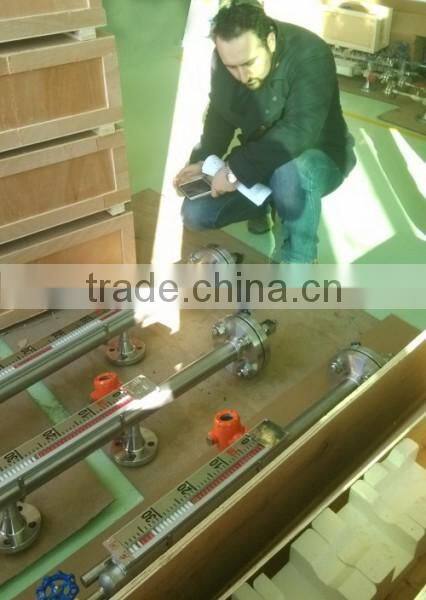

Magnetic Liquid Level Gauge is packed in standard wood carton

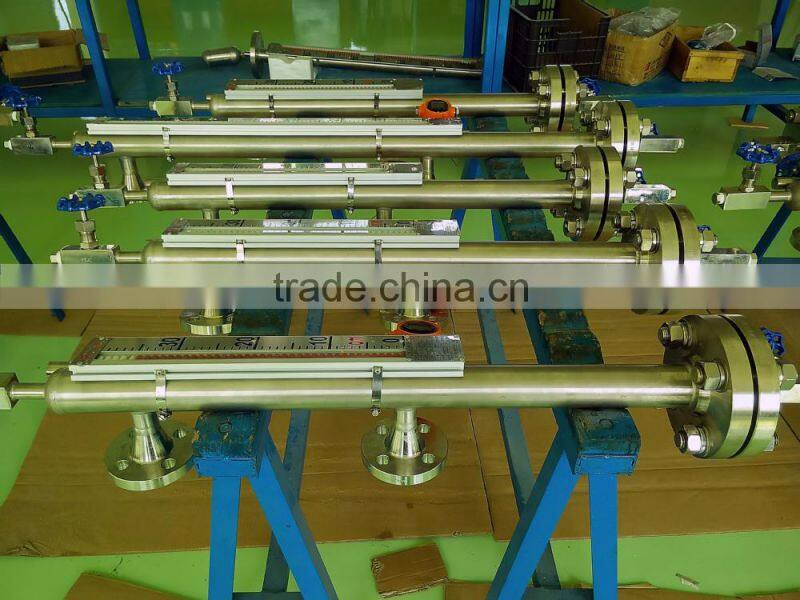

Produce description

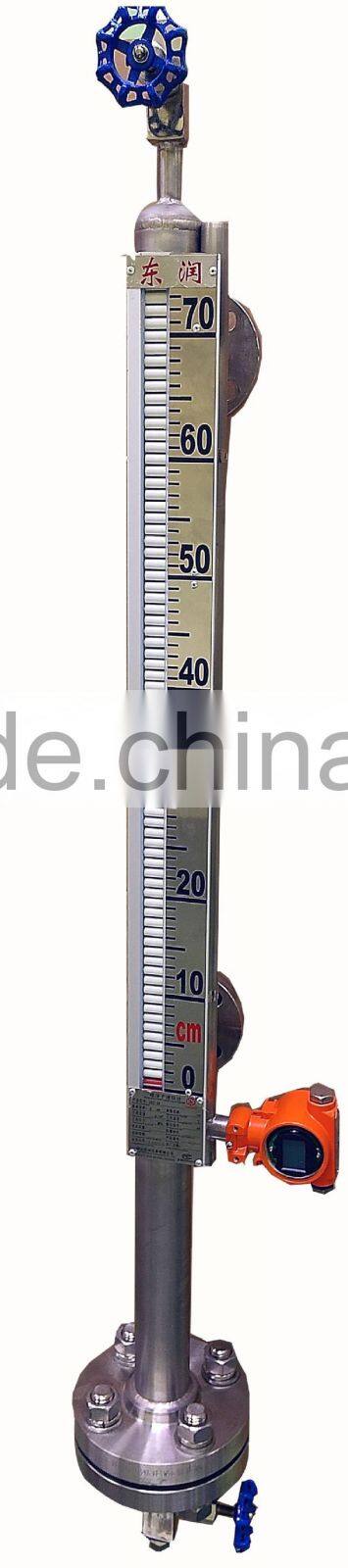

UHZ-99A series products can be used for measuring the medium level of various tower, tank, spherical container and boiler equipment etc.... The magnetic level gauge series can achieve high sealing, leak proof and adapt to the level measure environment in high pressure, high temperature and corrosive conditions.you can get every value during the whole measurement process, Especially for the instructions part.For the level meter does not have to contact with the liquid medium directly, the level meter can be better used in high temperature, high pressure, high viscosity, toxic, harmful, strong corrosive medium. You will find that compared with the traditional glass tube type and plate type,The advanced, practical, reliable and safety of our magnetic liquid level gauge is much more higher.

The most notable feature of our level gauge is completely isolated the liquid medium and the indicator, so whatever you use it in any environment, our level meter can ensure safe and durable.And with the fitful alarm and control switch, you can realize the up and low limited offside alarm control or interlock; with the dry reed chip set liquid level transmitter, you can transfer the liquid level signals into two-wire 4-20mADC standard signal and transmitted to the computer, liquid level regulator, digital display instrument, to realize the remote indication, detecting, recording and controlling, if you want to measure the liquid level meter in the field of control: petroleum, chemical,metallurgy, pharmaceutical, food, electricity etc. This magnetic level meter is your best choose

Technical parameters:

Measurement Range 300-15000mm

Accuracy ±10mm,

Dia. of Turn Column 9mm

Operating Pressure ≤10.0Mpa (>10.0Mpa can be separately designed ); anti-corrosion type ≤1.0Mpa

Medium Density ≥0.45g/cm3

Medium Density Difference ≥0.15g/cm3

Medium Temperature -20~+450℃

Medium Viscosity ≤0.4Pa·S

Equipment Vibration Frequency≤25Hz, Amplitude≤0.5mm

Connecting Flange ANSI_B16.5

Follow Speed ≤0.08m/s

Flange size DN20,PN0.6(metric pipe)/homemade

Connect flange GB119-2000

HG20595-1997 for high pressure type

Butt welding neck flange DN20/PN4.0,PN6.5 or PN10

Sealing surface form is convex or concave

above parament is only for reference,

Install model:

1.regular: main composed by a main body, a float,and a panel frame. Liquid level meter connect the container by the flange and with a valve between them. The liquid level meter is installed on the side. It applies in the situation which without insulating or cooling, and the medium can not corrode  austenitic stainless steel

2.insulation: based on the regular type,this liquid level meter is added Insulation casing insulation,Insulation connecting pipe,up and down Insulation connecting pipe connected with the equipment insulation system, to achieve the desired temperature by the opening size of the valve.

3.side mounted: it is main composed by a magnetic floating ball, buoy, side mounted body assembly, a panel frame. display position is no the side top, very suitable for high temperature,high viscosity medium or the side opening container.

mounted: it is a panel frame, top mounted body assembly, a guide pipe, a floating composed, display position is on the top, very suitable for buried or top open tank and the medium movement is not flow big.

5.vacuum type: based on regular type,this kind of liquid level meter added vacuum tube, the liquid level gauge is isolated from outside world, suitable for thermal insulation, heating, insulation, cooling and other occasions.

6.PTFE lined:based on regular type,this level meter is added Teflon lined, suitable for normal temperature, atmospheric corrosion resistant occasions.

ADVANTAGE

compared with ordinary glass tube and glass plate level gauge, magnetic liquid level meter has the following characteristics:

1.For containing flammable, explosive, toxic, corrosive medium container, the use of the liquid level meter is very safe and reliable.Because the main components of the level gauge (body) will not contact with the medium directly,while the material is made by high quality stainless steel or other special materials.

2.use double color (gas phase is white, liquid phase is red) turning column, turning plate display,indicating a continuous visual, there will be no false liquid level in any case.

3. Overcome the weakness spot of the pressure vessel parts in petroleum, chemical industry such as run, run, drip, leak.The sealing surface is less than the original type liquid level gauge, reducing the static seal leak more than 95%

4.structure simple,  installation and repair convenient ,measuring range large , design pressure high, service life long, application range wide.

Feature

The shell of the turn column uses the polyester and high temperature ceramic, which doesn’t fade and resists high temperature.

It can measure level and interface of liquid in the vessels. Besides on-site instruction, it can be with remote diaphragm, alarm switch, control switch.

It indicates obviously and highlighting. The direction of the observing indication can change angles based on the user’s need.

Wide measuring range, measure a variety of the height of the vessels.

The instruction and the medium are isolated completely, so it is reliable and safe.

Easy structure, convenient installation and the low cost of maintenance.

corrosion-proof, no need power supply and explosion-proof.

The magnet of the turn column adopts permanent magnet materials can run reliably during a long time.

company

Yantai dongrun Instrument Co., Ltd. founded in 1998. It specializes in manufacturing online water quality analyzer, level meters, pressure gauge, flow meter, special temperature gauge and laboratory water analyzer.. Our company cooperates with Chinese Academy of Sciences and builds up a water analysis laboratory, mainly producing TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification. Our professional R & D team can provide technical supports to satisfy customer demand and our unique technologies can meet different working conditions.  We are the important supplier of Yantai Wanhua Group,Pepsi,Sinopec,Jereil etc.
