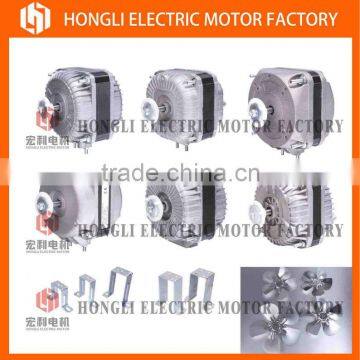

5W refrigerator fan motor(EDM type)
- NINGBO
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Hongli | |
| Model Number | HLZ82-D |
Product Description
Specifications
This type is widely used in radiators, evaporators and other refridgration equipments.
Model:HLZ82-D
Instruction
Protection class:IP42/IP44;
Insulation class:B;
Environment temperature:-40oC to +60oC;
Application::This type is widely used in radiators, evaporators and other refridgration equipments.
Character:It has good starting,smooth operation,big power,low noise,long life.
Specification
Model | Output Power | Voltage | Frequency | Current | Speed | A | B | C | D | Fan Size | bracket size |
HLZ8213E | 5W | 110V | 60Hz | 0.40 | 1550 | 13 | 45 | 49 | 82 | 200 | 72 |
HLZ8213D | 5W | 220V | 50Hz | 0.20 | 1300 |
|
|
|
|
|
|
HLZ8220E | 10W | 110V | 60Hz | 0.60 | 1550 | 20 | 45 | 49 | 89 | 230 | 84 |
HLZ8220D | 10W | 220V | 50Hz | 0.30 | 1300 |
|
|
|
|
|
|
HLZ8225E | 16W | 110V | 60Hz | 0.75 | 1550 | 25 | 45 | 49 | 94 | 250 | 110 |
HLZ8225D | 16W | 220V | 50Hz | 0.40 | 1300 |
|
|
|
|
|
|
HLZ8230E | 18W | 110V | 60Hz | 0.85 | 1550 | 30 | 45 | 49 | 99 | 250 | 110 |
HLZ8230D | 18W | 220V | 50Hz | 0.50 | 1300 |
|
|
|
|
|
|
HLZ8240E | 25W | 110V | 60Hz | 1.60 | 1550 | 40 | 45 | 49 | 109 | 300 | 110 |
HLZ8240D | 25W | 220V | 50Hz | 0.80 | 1300 |
|
|
|
|
|
|
HLZ8245E | 34W | 110V | 60Hz | 1.70 | 1550 | 45 | 45 | 49 | 114 | 300 | 110 |
HLZ8245D | 34W | 220V | 50Hz | 0.90 | 1300 |
|
|
|
|
|
|
PS:1)Bearing:oil bearing or ball bearing;
2)Fan guard, mounting ring and aluminum mounting bracket available.
