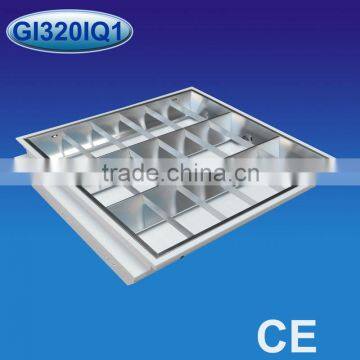

3*17/18/20W Recessed Grille Lamp Tray , T8/T10 Lamp Tray, Lamp House

Grille Lamp Tray Features:

Model And Specifications:

1. Model and spec:GI320IQ1: 3*17/18/20W;
2. Voltage: 80-120V/60Hz,180-230V/50Hz,80-270V/50/60Hz.

Material Feature:

1. Housing: 0.30-0.60mm cold-roll steel with electrostatic powder coated finish;
2. Louver: high purifier 0.25-0.35mm Chinese aluminum with 86% reflection, or 0.4mm Germany aluminum with 96% reflection;
3. Lamp holder: ABS or PC anti-fire, CE,VDE, or UL certificated;
4. Wire: pure copper wire, 0.5-0.8mm², CE,VDE or UL certificated;

 Design Feature:

1. The Inclined bottom design, can be matched with a variety of different structure of ceiling keel.
2. Double cambered grille and the arc-shaped side plate, the lamp body fluid lines;
3. The wider bat wing light distribution, double arc grille has decomposition glare, higher diffusion rate
4. Design of optical professional distribution, ensure the light distribution curve is more scientific and reasonable, avoiding glare, and result more even and soft light

Available Light Source:

1. Traditional T8 lamp 17/18W (the tube length without pins are 590mm);
2. Traditional T10 lamp 20W (the tube length without pins are 590mm);
3. T8/T10 type LED lamp 8-12W (the tube length without pins are 590mm);

Control Gears:

1. built-in pure copper wire magnetic ballast, collocated starter, rapid start, noiseless, more than five years life span;
2. built-in high quality electronic ballast, ≥0.90PF, collocated EMC and protection system, extending the using life, more than three years;

Installation Attention:

1. The available surface frame: 600*600MM, 595*595MM, 598*598MM, 625*625MM;
2. Installation: recessed, embedded, inlaid, built-in;
3. Hole size of installation: (575-585)*(575-585)mm.

Package:

1. Every piece packed into poly bag or paper box;
2. 2pcs/ctn;
3. Exported standard carton,

Carton size:

1. T8/T10 (traditional and LED) types: 64*61*16.5cm, 64*64*16.5cm.

Application:

Office, supermarket, meeting room, business centre, hospital, work room, restaurant, Indoor parking lot, school, and other indoor lighting required.
