T5 Air Conditioning Lamp Tray 3*28/54W, T5 Lamp panel

Air-Conditioning Lamp Tray:

air-conditioning lamp tray aire-conditioning lamp tray air-conditioning lamp tray

Model And Specifications:

1. Model and spec:GI328IQ1-K1-T5:3*28W, GI354IQ1—K1-T5: 3*54W;

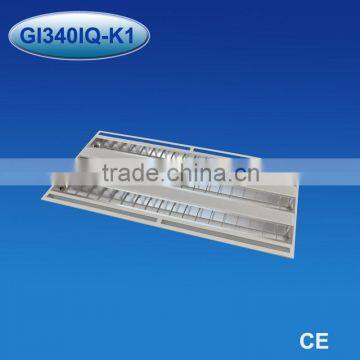

                                       GI332IQ1-K1:3*32W, GI340IQ1-K1: 3*36/40W;

                                       GI328IQ1-K1-T5-LED: T5 LED lamps;

                                       GI340IQ1-K1-LED: T8/T10 LED lamps;

    2.  Voltage: 80-120V/60Hz,180-230V/50Hz,80-270V/50/60Hz.

Material Feature:

1. Housing: 0.40-0.60mm cold-roll steel with electrostatic powder coated finish;
2. Louver: high purifier 0.30-0.35mm Chinese aluminum with 86% reflection, or 0.4mm Germany aluminum with 96% reflection;
3. Lamp holder: ABS or PC anti-fire, CE,VDE, or UL certificated;
4. Wire: pure copper wire, 0.5-0.8mm², CE,VDE or UL certificated;

Design Feature:

1. The air-conditioning lamp tray integrate the project luminaire, commercial luminaire and air outlet, facilitating the installation exercise, saving project cost, and playing a decorative landscaping work;
2. The Inclined bottom design, can be matched with a variety of different structure of ceiling keel.
3. The air stream line design ensure the enough air-conditioning wind out, and the adjustable grill can be change the wind blowing way;
4. Double cambered grille and the arc-shaped side plate, the lamp body fluid lines;
5. The wider bat wing light distribution, double arc grille has decomposition glare, higher diffusion rate
6. Design of optical professional distribution, ensure the light distribution curve is more scientific and reasonable, avoiding glare, and result more even and soft light

Available Light Source:

1. Traditional T5 lamp 28W or 54W (the tube length without pins are 1149mm) ;
2. Traditional T8 lamp 32/36W (the tube length without pins are 1198-1200mm);
3. Traditional T10 lamp 40W (the tube length without pins are 1198-1200mm);
4. T5 type LED lamp 6-10W (the tube length without pins are 1149mm) ;
5. T8/T10 type LED lamp 15-20W (the tube length without pins are 1198-1200mm);

Control Gears:

1. built-in pure copper wire magnetic ballast, collocated starter, rapid start, noiseless, more than five years life span;
2. built-in high quality electronic ballast, ≥0.90PF, collocated EMC and protection system, extending the using life, more than three years;

Installation Attention:

1. The available surface frame: 1200*600MM,1195*595MM,1198*598MM,1225*625MM;
2. Installation: recessed, embedded, inlaid;
3. Hole size of installation: (1175-1195)*(575-595)mm.

Package:

1. Every piece packed into poly bag or paper box;
2. 2pcs/ctn;
3. Exported standard carton,

Carton size:

1. T5 (traditional and LED) types: 121*61*12.5cm,124*64*16.5cm
2. T8/T10 (traditional and LED) types: 124*61*16.5cm, 124*64*16.5cm.

Application:

Office, supermarket, meeting room, business centre, hospital, work room, restaurant, Indoor parking lot, school, and other indoor lighting required.
