Joytone FT-7800R Dualband Mobile Car Radio

FOB Price

US$ 30 - 200 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Joytone FT-7800R dualband mobile car radio

Product details
Model number	YEASU FT-7800R dualband mobile car radio
Brand name	Joytone
Frequency Range	R108-520/700-999MHz T144-148/430-450MHz
Storage Channel	1000
Output power	50/20/10/5/144(MHz).40/20/10/5/(430MHz)
Talk Range	25-30km
LED display	Yes
50groups CTCSS,104Groups DCS	Yes
Backlit DTMF Mic	Yes
Menu customization	Yes
ARTS™ Auto-Range Transponder System	Yes
Dimensions	16814041.5mm
Color	black dualband mobile car radio
LED display	Yes
Weight	2.5kg
UHF	Yes
High-quality	Yes
After-Sale service
Payment	Western union . Bank transfer. Paypal .Escrow. Money gram
Shipment	DHL. EMS .UPS .TNT. FEDEX
Delivery time	Within 2 days after confirm payment
Warranty	One year warranty

FT-7800R dualband mobile car radio

GENERAL
Frequency Range Receive:	108-520 and 700-999 MHz (cellular blocked).
Frequency Range Transmit:	144-148, 430-450 MHz
Frequency Steps:	5/10/12.5/15/20/25/50/100 kHz
Operating Modes:	F3E, F2D, F2A
Antenna Impedance:	50 Ohm, Unbalanced
Antenna Jack:	SO-239 [U.S.A. version]
Frequency Stability:	5 ppm -4°F to 140°F (-20°C to +60°C)
Supply Voltage:	DC 13.8V 15%, Negative Ground
Current Consumption:	Receive Squelched - Less than 0.5 A
	TX	HI
0	144 MHz	8.5 A
0	430 MHz	8.0 A
Operating Temperature Range:	-20°C to +60°C (-4°F to +140°F)
Case Size:	5.5x1.6x6.6 inches (140x42x168 mm)
Weight:	Approx. 2.2 Lbs (1.0 kg)
0
TRANSMITTER
RF Power Output:	50/20/10/5 Watts (144 MHz)
0	40/20/10/5 Watts (430 MHz)
Modulation Type:	Variable Reactance
Maximum Deviation:	5 kHz
Spurious Radiation:	-60 dB or better
Microphone Impedance:	2 K ohm
Data Jack Impedance:	10 K ohm
0
RECEIVER
Circuit Type:	Double-Conversion Superheterodyne
Intermediate Frequencies:	45.05 MHz & 450 kHz
Sensitivity (12dB SINAD):	<0.2uV
Selectivity:	8 kHz/30 kHz (-6/-60 dB)
Squelch Sensitivity:	Better than 0.16uV
AF Output:	2W @ 8 ohm @ 5% THD
AF Output Impedance:	4-16 ohm (Internal Speaker 8 ohm)
	Specifications are subject to change.

Packaging & Shipping

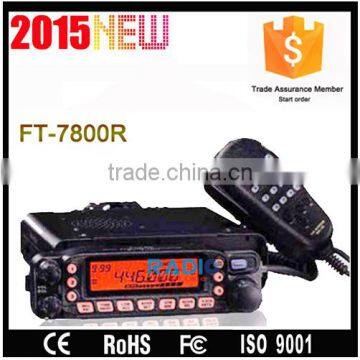

YEASU FT-7800R dualband mobile car radio picture
