YAESU Professional mobile two way radio FT-1900

FOB Price

US$ 10 - 150 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

One year warranty + Factory price

FT-1900 wireless uhf mobile radio

Product details
Model number	FT-1900 mobile radio
Brand name	Joytone
Frequency Rang	Vhf 136-174MHz
Storage Channel	200
Talk Range	15-30km
Dimensions	14040146mm
Color	black wireless uhf mobile radio
LED display	Yes
Weight	2.5kg
UHF	Yes
High-quality	Yes
After-Sale service
Payment	Western union Bank transfer Paypal Escrow Money gram
Shipment	DHL EMS UPS TNT FEDEX
Delivery time	Within 2 days after confirm payment
Warranty	One year

Specifications	FT-1900
GENERAL
Frequency Range
RX	136.000 - 174.000 MHz
TX	144.000 - 146.000 MHz
Channel Steps	5/10/12.5/15/20/25/50/100 kHz
Standard Repeater Shift	±600 kHz
Modes of Emission	F2D, F3E
Antenna Impedance	50Ω, Unbalanced
Frequency Stability	Better than ±10ppm @ -20ºC to +60ºC
Operating Temperature Range	-20ºC to +60ºC
Supply Voltage	13.8 VDC (±15%), negative ground
Current Consumption (typical)	RX: less than 0.7A, less than 0.3A (Squelched)
	TX: 11A (55w), 7A (25W), 5A (10W), 4A (5W)
Case Size (W x H x D, mm)	140 x 40 x 146 (w/o knobs)
Weight (approx.)	1.2 kg
TRANSMITTER
Output Power	5/10/25/55 W
Modulation Type	Variable Reactance
Maximum Deviation	±5 kHz (Wide)
	± 2.5 kHz (Narrow)
Spurious Radiation	Better than -60dB
Microphone Impedance	2 kΩ
RECEIVER
Circuit Type	Double-conversion superheterodyne
Intermediate Frequencies	21.7 MHz & 450 kHz

Sensitivity (for 12dB SINAD)	Better than 0.2 µV
Selectivity (-6db / -60dB)	12 kHz / 28 kHz (Wide)
	9 kHz / 22 kHz (Narrow)
IF Rejection	Better than 70dB
Image Rejection	Better than 70dB
Maximum AF Output	3W into 4Ω @ 10% THD

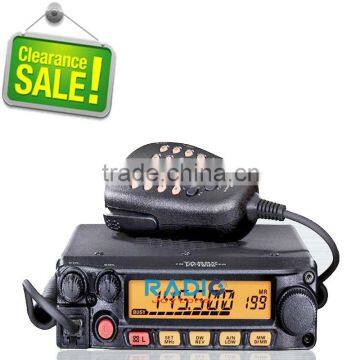

FT-1900 wireless uhf mobile radio more detail picture
