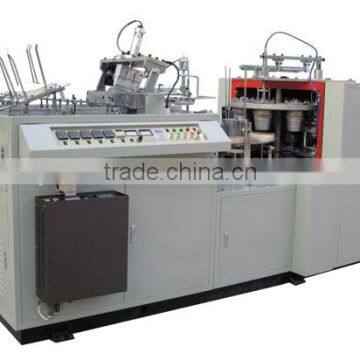

Ruian high speed Paper Bowl forming Machine
- Ningbo
- T/T
You May Like
Product Details
| Condition | New | Product Type | Paper Bowl Machine | |
| Processing Type | Paper Folding Machine | Place of Origin | Zhejiang, China | |
| Brand Name | YOUTAI | Model Number | YT-LII | |
| Voltage | 380V,50Hz or other required | Power(W) | 7kw | |
| Dimension(L*W*H) | 2960*1300*1820mm | Weight | 2300kgs | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Ruian Paper Bowl Machine(YT-LII)
1. Photosensor detecting;
2. Failure alarming;
3. Countion function
Ruian Paper Bowl Machine
YT-LLI paper bowl making machine is developed on the basis of absorbing the advanced technology from home and abroad. It is an automatic multi-working-station machine with photosensor detecting, failure alarming and counting. This machine adopt ultrasonic system to seal the cup-side body, so it is suitable for making big size paper bowl, such as soup bowl, fast noodle bowl etc. The procedure as following: Automatic paper feeding, sealing, silicon-oil lubricating, bottom punching, two-step bottom heating, knurling, curling and bowl discharging.
Technical data sheet
| Model | YT-LII |
| Cup Size | 20-60oz or 460-1100ml etc. |
| Raw Material | Single PE coatd paper(140-280gsm) |
| Productivity | 35-45pcs/min |
| Power Source | 380V, 50Hz |
| Total Power | 7Kw |
| Weight | 2300Kg |
| Dimension | 2960*1300*1820mm |
